ASSEMBLY (RS5F30A & RS5F31V)

MT-58prose procedure

Page applies to RS5F30A and RS5F31V transaxle variants; step 8a is RS5F30A-specific.

Continued from MT-57

Transaxle assembly

  1. 1
    Install striking rod, lever and interlock.
    When inserting striking rod into clutch housing, tape edges of striking rod to avoid damaging oil seal lip.

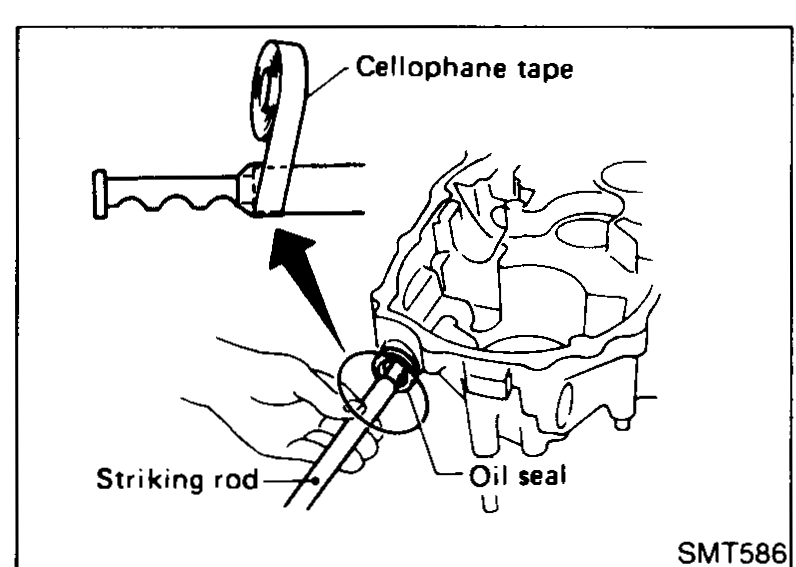

    Striking rod wrapped with cellophane tape over its sharp edges being inserted through the clutch-housing oil seal. Inset shows cellophane tape detail.
    SMT586
  2. 2
    Install reverse check sleeve assembly.

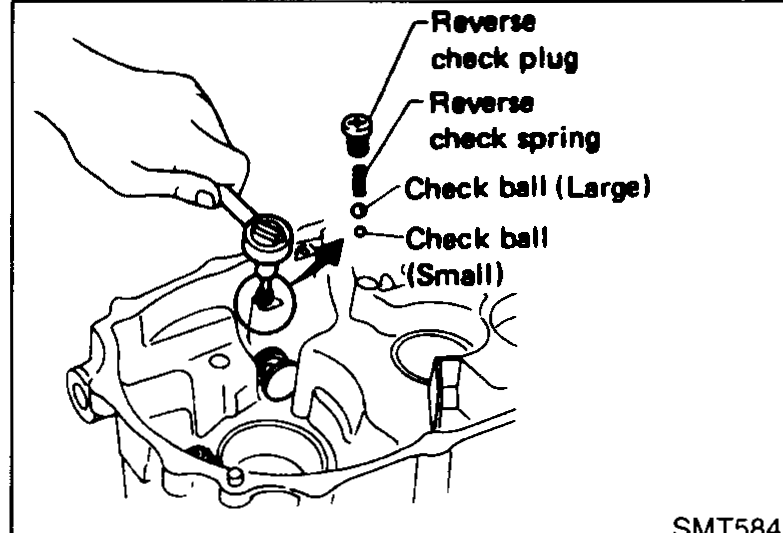

    Cutaway/exploded view inside the clutch housing showing reverse check plug, reverse check spring, check ball (Large) and check ball (Small) being installed.
    SMT584
  3. 3
    Install check balls, reverse check spring and check plug.
  4. 4
    Check reverse check force. If not within specification, select another check plug having a different length and reinstall it.
    Reverse check force: 4.9 - 7.4 N·m (50 - 75 kg-cm, 43 - 65 in-lb)
    Reverse check plug: Refer to S.D.S.
    Clutch housing held in a vice with a suitable bar inserted through the case to check reverse check force using a torque wrench.
    SMT688
  5. 5
    Install selected reverse check plug.
    Apply locking sealant to thread of plug before installing it.
  6. 6
    Install check ball plug, shift check ball and check spring.

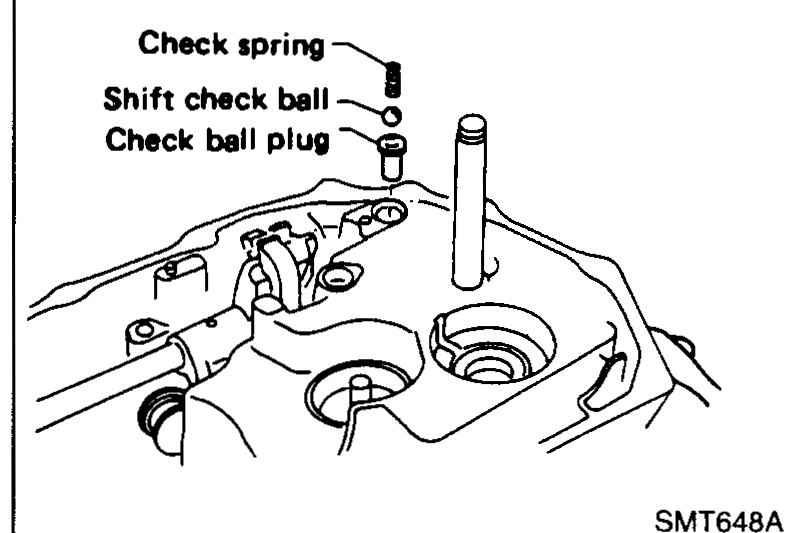

    Installation of check ball plug, shift check ball and check spring into the clutch housing.
    SMT648A
  7. 7
    Install oil pocket.
  8. 8
    Install gear components onto clutch housing.
  9. 8a-rs5f30a
    RS5F30A — Install final drive assembly and reverse idler gear.

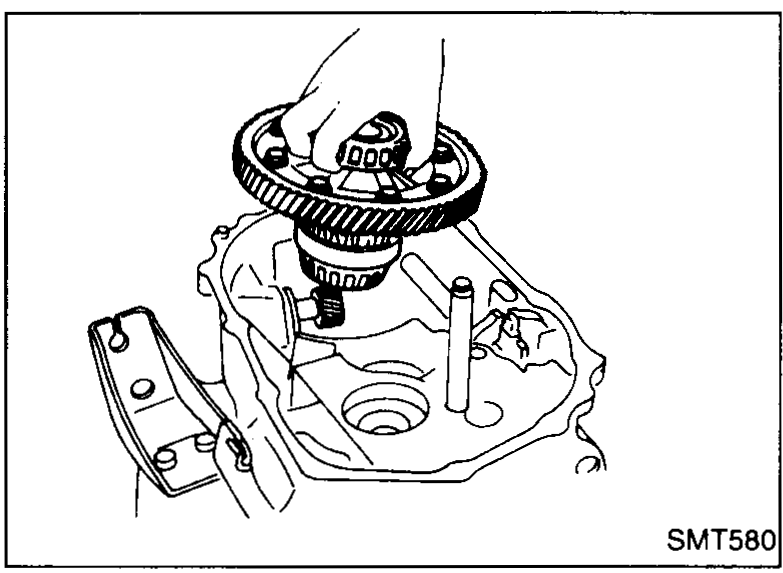

    Hands installing the final drive assembly and reverse idler gear onto the RS5F30A clutch housing.
    SMT580
Reverse check force
4.9 - 7.4N·m (50 - 75 kg-cm, 43 - 65 in-lb)
