ASSEMBLY (RS5F41A)

MT-34prose procedure

Page applies to RS5F41A transaxle only.

Continued from MT-33

Transaxle assembly (continued)

  1. 18
    Shift gear position to 4th. Measure distance "ℓ" between transmission case and striking interlock, then select suitable plunger.
    Reverse check plunger: Refer to S.D.S.
    Cross-section view: plunger is shown with overall length 'L'. Below, the striking interlock is in its neutral position above the transmission case; distance 'ℓ' is shown between the transmission case top face and the striking interlock to be measured before selecting a suitable plunger.
    SMT963
  2. 19
    After assembly, check that you can shift into each gear smoothly.
  3. 20
    Measure total turning torque.
    When old bearing is used again, preload will be slightly lower than that indicated above. Check preload to see if it is not far from specified range.
    Total turning torque (New bearing): 2.5 - 5.9 N·m (25 - 60 kg-cm, 22 - 52 in-lb).

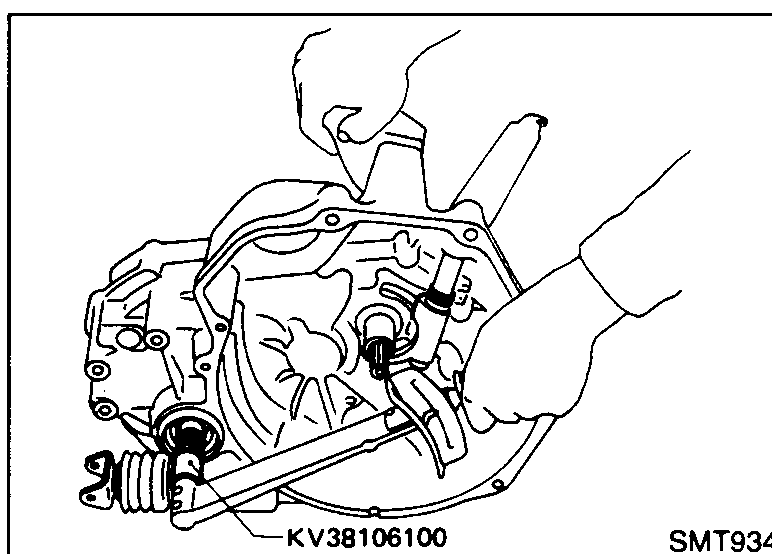

    Hands using special tool KV38106100 to rotate the transaxle final-drive flange and measure total turning torque.
    SMT934
Total turning torque (New bearing)
25 - 58N·m
