REPAIR FOR COMPONENT PARTS — Final Drive Final Steps + Shift Control Components Inspection (RS5F30A & RS5F31V)

MT-53prose procedure

Page applies to RS5F30A and RS5F31V transaxle variants. Step 5 (viscous coupling) is RS5F31V-only.

Continued from MT-52

Final Drive (Cont'd)

Final drive assembly (final steps)

  1. 5

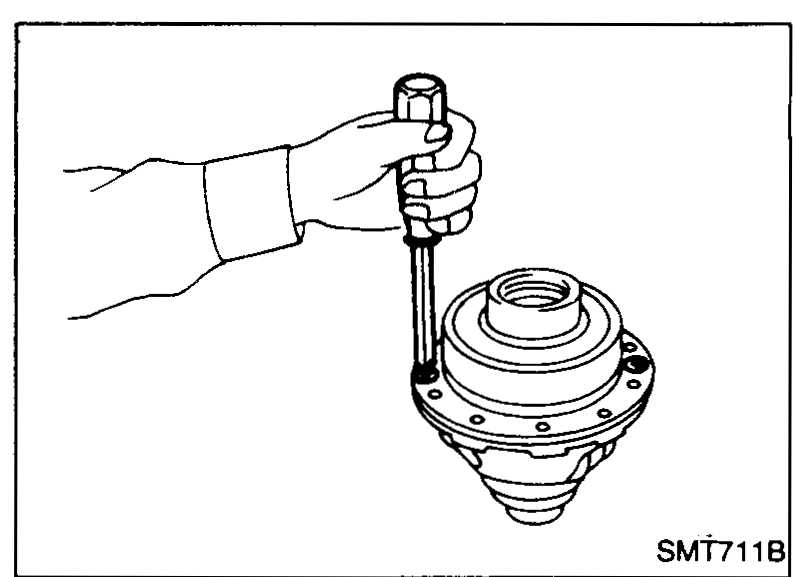

    Install viscous coupling — RS5F31V.
    Hands using a pin punch or drift to install the viscous coupling into the differential case on the RS5F31V variant.
    SMT711B
  2. 6
    Install final gear.
    Apply locking sealant to final gear fixing bolts before installing them.
    Tightening of final-gear fixing bolts on the differential case. Inset shows chamfer detail on the bolt with arrow indicating direction of insertion. Apply locking sealant to threads before installing.
    SMT609A
  3. 7
    Install speedometer drive gear and stopper.
  4. 8

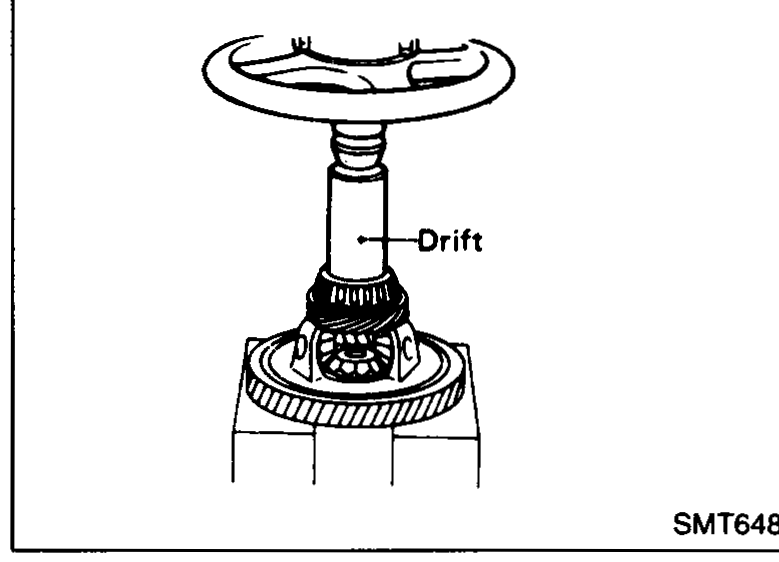

    Press on differential side bearings.
    Press setup with drift on top to press the differential side bearings onto the case.
    SMT648

Shift Control Components

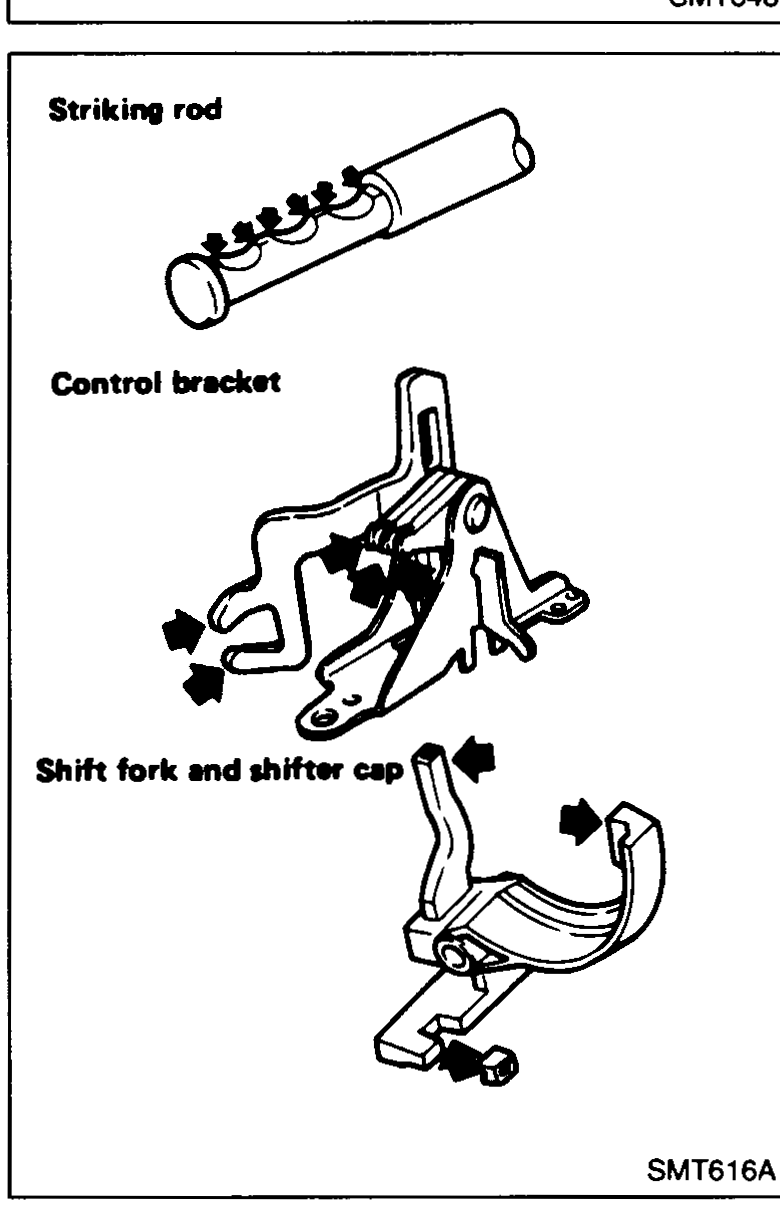

INSPECTION
