Body Rear End and Opener (Cont'd)

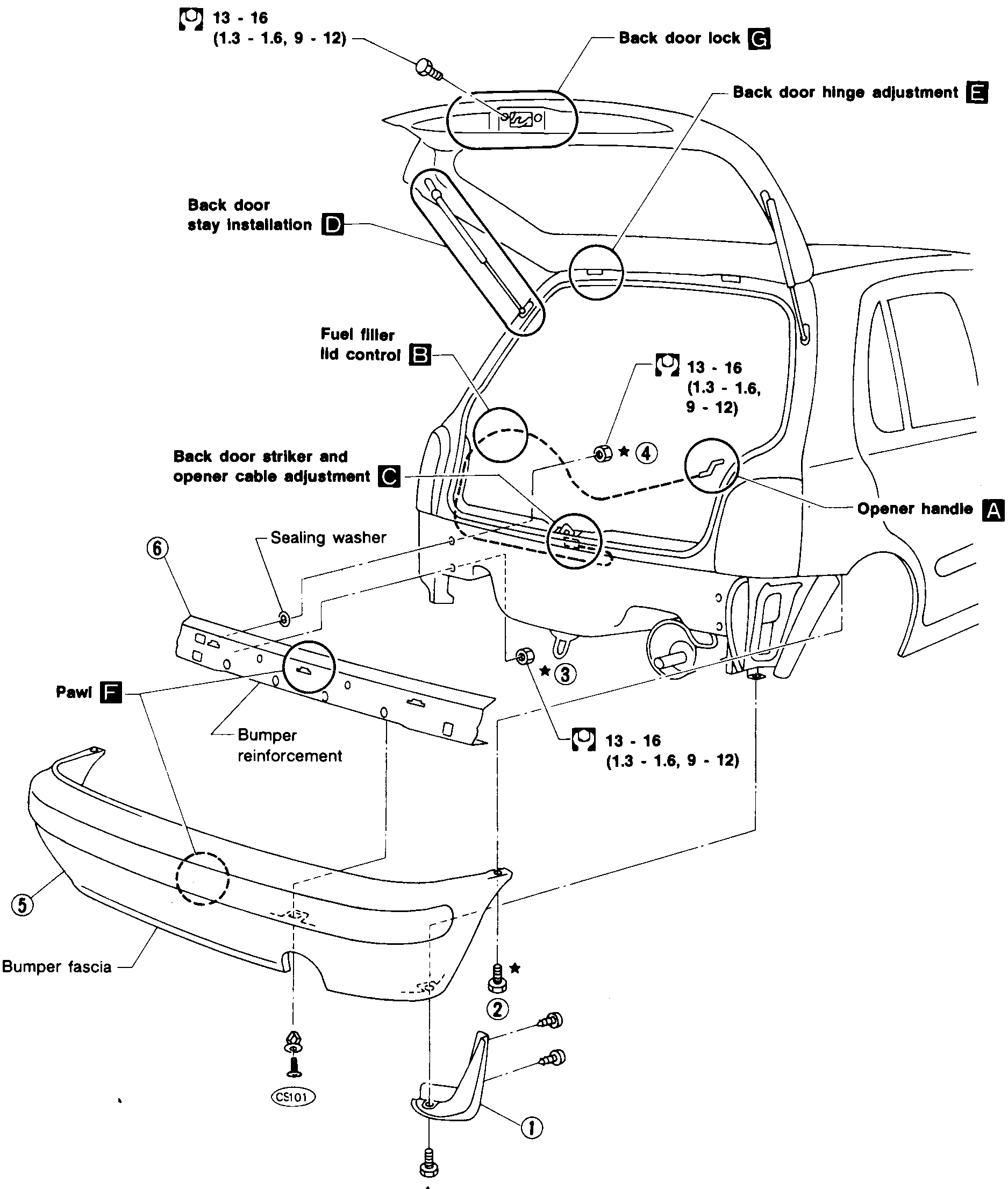

Parts Diagram
| Specification | Value |
|---|---|
| Wheelarch screw (2) / bumper stay nuts (3)(4) / back-door lock bolt (G)Tightening torque | 13 - 16N·m |
Wheelarch screw (2) / bumper stay nuts (3)(4) / back-door lock bolt (G)Tightening torque
13 - 16N·m
