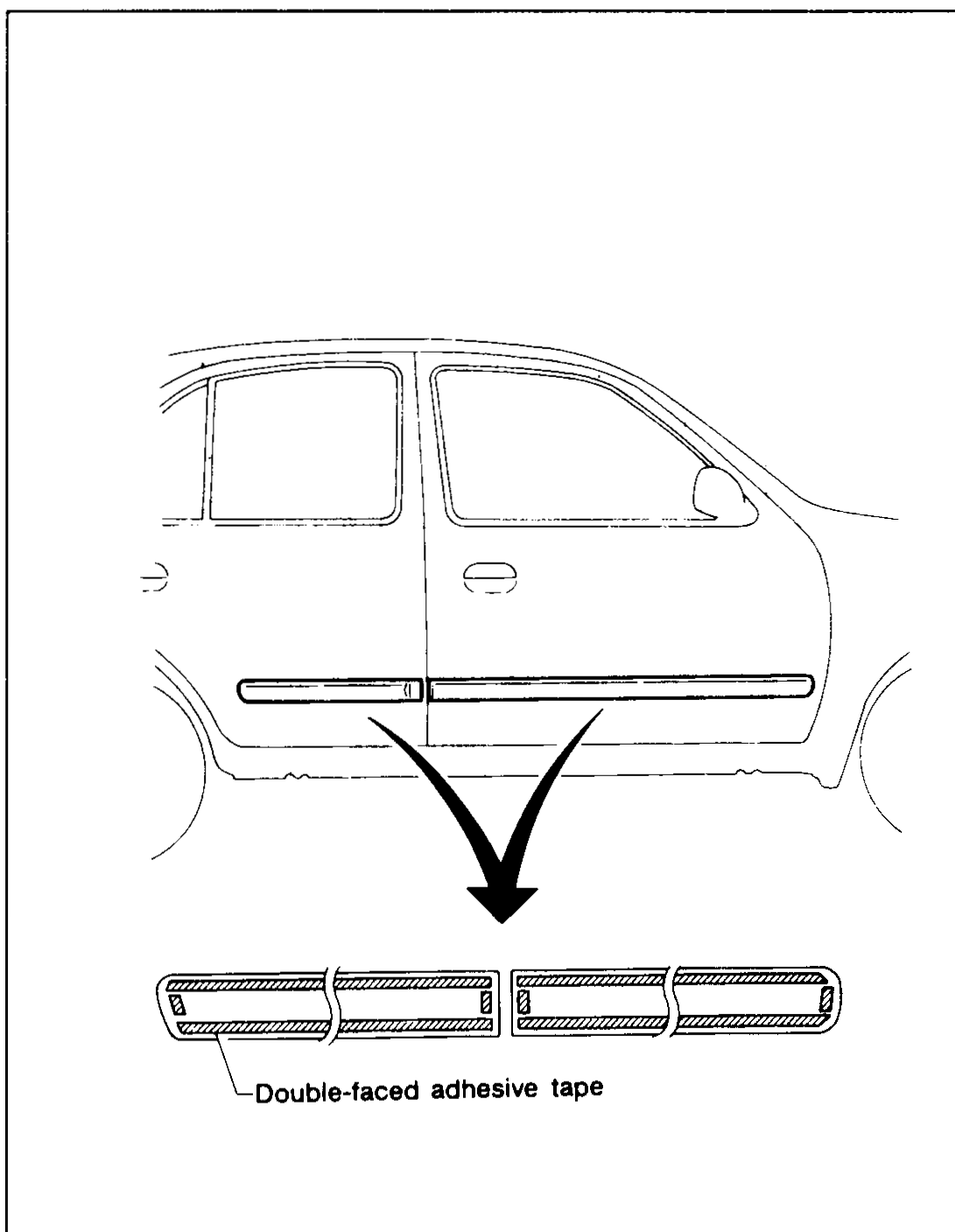

(9) Side guard molding
Side guard molding — Removal

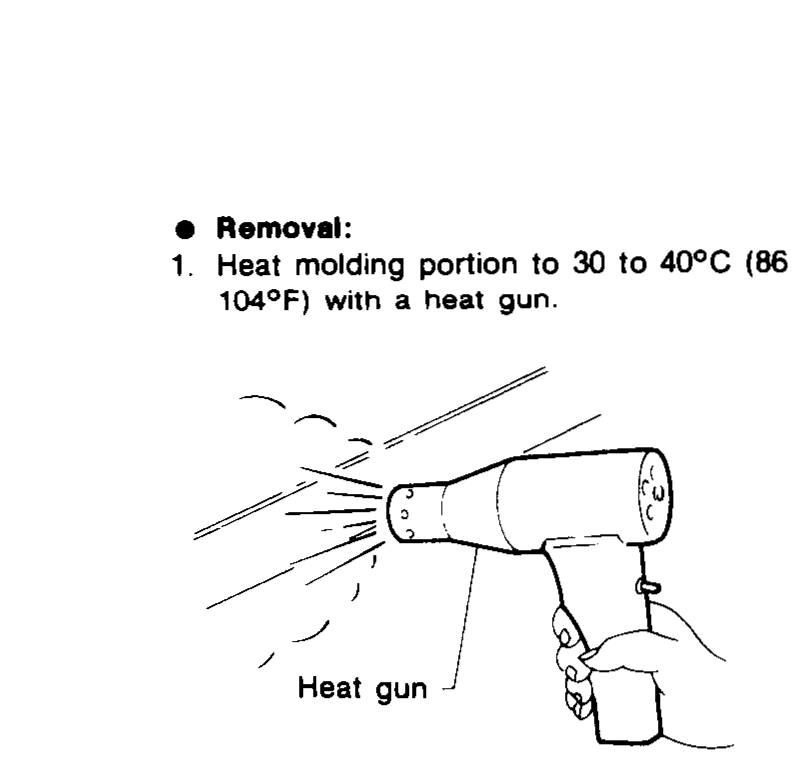

- 1Heat molding portion to 30 to 40°C (86 to 104°F) with a heat gun.
MBF946A - 2Raise end of molding and, while cutting off bonding agent, detach molding.
Side guard molding — Installation
- 1Remove all traces of bonding agent from body panel. Then clean contact face of body.
- 2Heat body panel and molding to 30 to 40°C (86 to 104°F) with a heat gun. Then install molding.
| Specification | Value |
|---|---|
| Working temperature | 30 - 40°C |
Working temperature
30 - 40°C

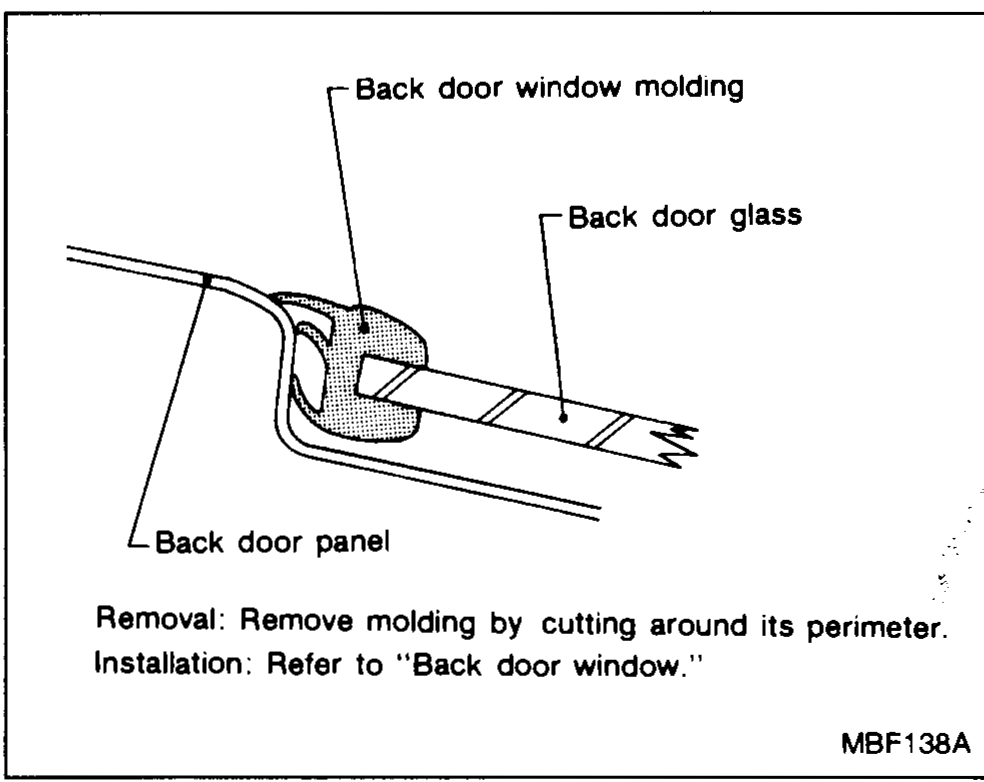

(10) Back door window molding
Back door window molding — Removal / Installation
- 1Removal: Remove molding by cutting around its perimeter.
MBF138A - 2Installation: Refer to 'Back door window'.
(11) Back door weatherstrip
Parts Diagram
