SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Installation — Air Bag Module and Spiral Cable

BF-2008prose procedure

Spiral cable centring: clockwise to stop, then back off ~2.5 turns to align the marks. Use NEW special bolts on reassembly.

Continued from BF-2007

Installation — Air Bag Module and Spiral Cable

  1. 1
    Connect spiral cable connector and tighten with screws. Install steering column covers.
  2. 2
    Alignment of spiral cable with neutral position. Align spiral cable with neutral position as follows: Turn spiral cable clockwise until resistance is felt. Then, back spiral cable off approximately 2.5 turns until the alignment marks meet as shown.

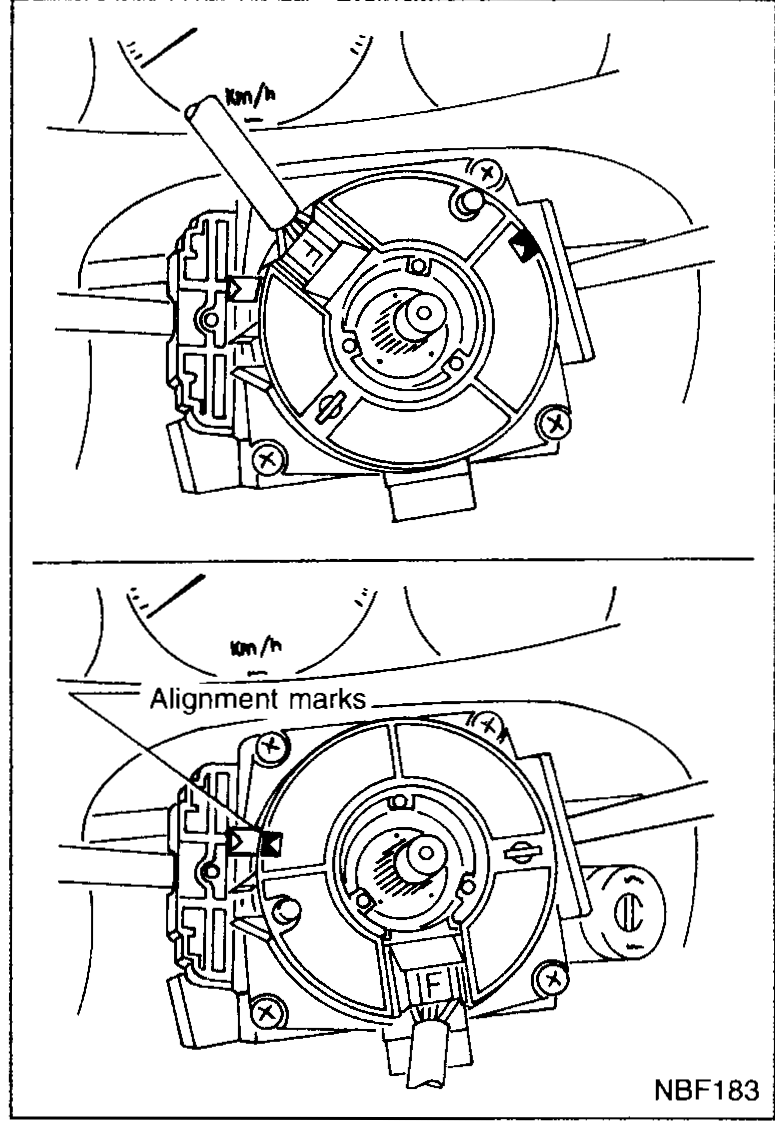

    Two-stack view of the spiral cable alignment. Top: spiral cable turned clockwise until resistance. Bottom: spiral cable backed off ~2.5 turns until the alignment marks meet.
    NBF183
  3. 3
    Fit steering wheel, align to guide pins.
  4. 4
    Fit and tighten steering wheel center nut to correct torque.
  5. 5
    Position air bag module and tighten with new special bolts.

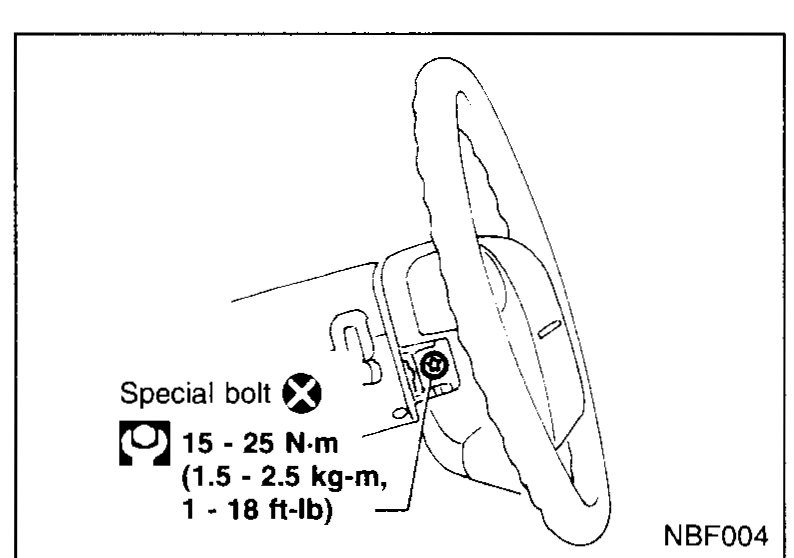

    Side view of the steering wheel showing the side-lid special bolt location with torque value 15-25 N·m.
    NBF004
  6. 6
    Connect air bag module connector and Diagnosis sensor unit connector.
  7. 7
    Install side and lower lids.
  8. 8
    Conduct self-diagnosis to ensure entire SRS functions correctly. (Use warning lamp check).
