TROUBLE DIAGNOSES — Supplemental Restraint System (SRS) — Self-diagnosis (Cont'd) — DIAGNOSTIC PROCEDURE 3 (without CONSULT)

BF-6032prose procedure
Continued from BF-6031

Self-diagnosis (Cont'd)

DIAGNOSTIC PROCEDURE 3 (without CONSULT)

Inspecting SRS malfunctioning parts by using "AIR BAG" warning lamp — Diagnosis mode

Enter SRS Diagnosis mode without CONSULT

  1. 1
    Open driver's door.

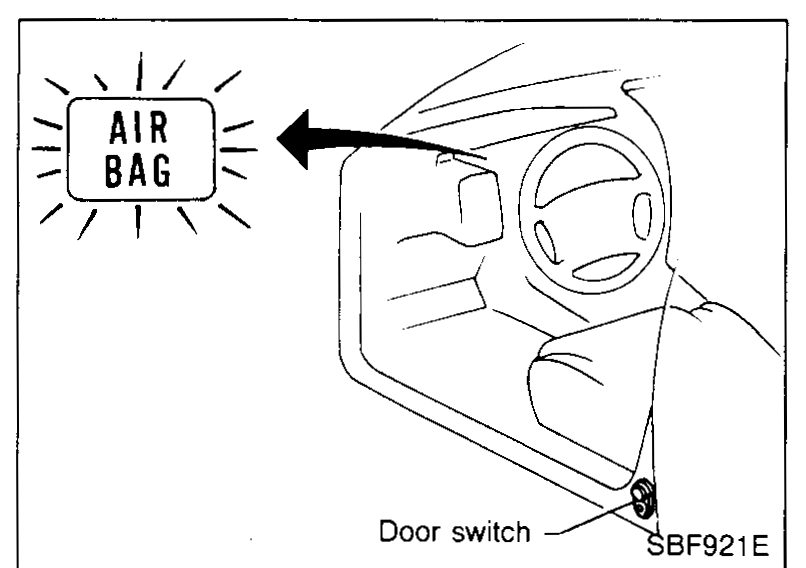

    Driver's footwell view showing the 'AIR BAG' warning lamp in the instrument cluster (top-left) with an arrow pointing from the lamp to a 'Door switch' on the lower right of the door jamb area.
    SBF921E
  2. 2
    Turn ignition switch from "OFF" to "ON".
  3. 3
    Press driver's door switch at least 5 times within 7 seconds after turning ignition switch "ON". SRS is now in Diagnosis mode.
  4. 4
    "AIR BAG" warning lamp operates in diagnosis mode as follows:
    If SRS does not enter Diagnosis mode even though malfunction is detected in User mode, go to DIAGNOSTIC PROCEDURE 11.

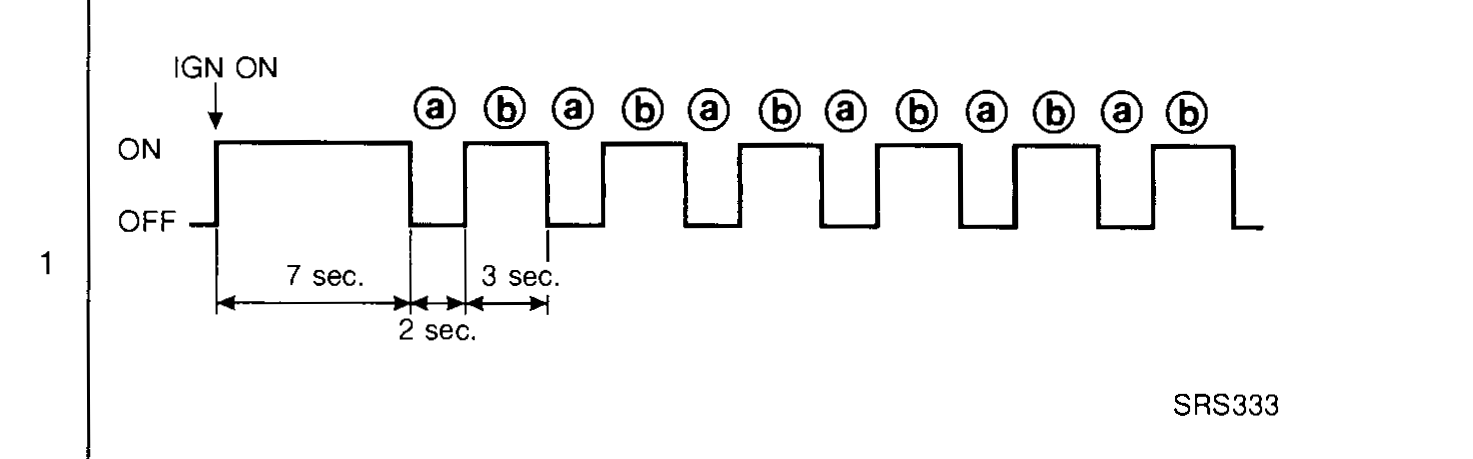

    Timing-diagram strip showing the AIR BAG warning-lamp flash pattern for Diagnosis-mode No. 1. After IGN ON, the lamp is OFF for 7 sec, ON for 3 sec, then a 2-sec marker block. Flashes labelled (a) through (b) are repeated.
    SRS333

AIR BAG warning lamp flash pattern — Diagnosis mode

1
"AIR BAG" warning lamp flash pattern — Diagnosis modeIGN ON: OFF 7 sec, ON 3 sec, then 2-sec marker. (a) through (b) repeated. (SRS333)
Description(a) through (b) are repeated.
SRS conditionDiagnosis results (previously stored in the memory) might not be erased after repair. Intermittent problem has been detected in the past. Go to DIAGNOSTIC PROCEDURE 7.
2
"AIR BAG" warning lamp flash pattern — Diagnosis modeIGN ON: OFF 7 sec, ON 3 sec, then 2-sec/2-sec marker. (a) through (d) repeated. (SRS341)
Description(a) through (d) are repeated. (b) — Driver and passenger air bag marker (for identifying driver and/or passenger air bag malfunctioning). (d) — Indicates malfunctioning part. The number of flash varies with malfunctioning part (0.5 sec. ON and 0.5 sec. OFF is counted as one flash).
SRS conditionThe system is malfunctioning and needs to be repaired.
3
"AIR BAG" warning lamp flash pattern — Diagnosis modeIGN ON: OFF 7 sec, ON with 2 sec / 1.5 sec / 0.5 sec marker. (a) through (f) repeated. (SRS342-A)
Description(a) through (f) are repeated. (b), (c), (d) — Side air bag marker (for identifying side air bag malfunctioning). (f) — Indicates malfunctioning part. The number of flash varies with malfunctioning part (0.5 sec. ON and 0.5 sec. OFF is counted as one flash).
SRS conditionThe system is malfunctioning and needs to be repaired.
