TROUBLE DIAGNOSES — Supplemental Restraint System (SRS) — Trouble Diagnoses with CONSULT-II (Cont'd) — DIAGNOSTIC PROCEDURE 4

BF-7041prose procedure

Screen 2SDP02 prints typo 'FUTHER TESTING' (sic) — preserved verbatim in figure description.

Continued from BF-7040

Trouble Diagnoses with CONSULT-II (Cont'd)

Final checking after repairing SRS (CONSULT-II) — continuation (steps 9-13)

  1. 9
    Touch "BACK" key of CONSULT-II to "SELECT DIAG MODE" screen. Touch "SELF-DIAG [PAST]".

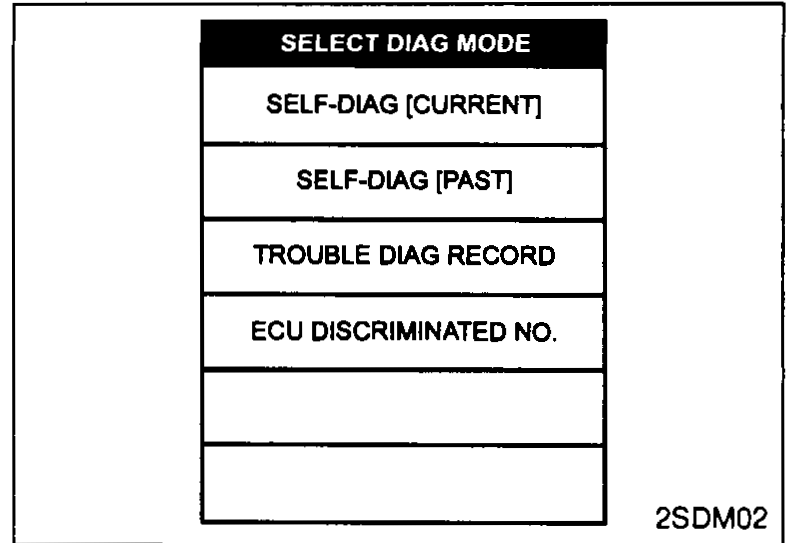

    CONSULT-II SELECT DIAG MODE screen — entries: SELF-DIAG [CURRENT], SELF-DIAG [PAST], TROUBLE DIAG RECORD, ECU DISCRIMINATED NO.
    2SDM02
  2. 10
    Check that no malfunction is detected on "SELF-DIAG [PAST]".

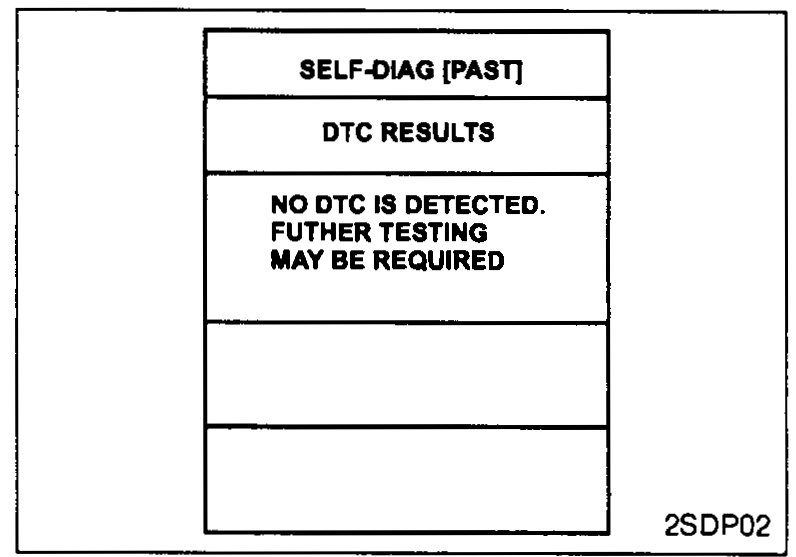

    CONSULT-II SELF-DIAG [PAST] screen — DTC RESULTS: "NO DTC IS DETECTED. FUTHER TESTING MAY BE REQUIRED" (sic).
    2SDP02
  3. 11
    Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode.
  4. 12
    Turn ignition switch "OFF" then turn off and disconnect CONSULT-II.
  5. 13
    Go to "SRS Operation Check", page BF-7035 to check SRS operation by using "AIR BAG" warning lamp with User mode.

DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)

Inspecting SRS malfunctioning record

Inspecting SRS malfunctioning record — decision

1
Is it the first time for maintenance of SRS?
No
Self-diagnostic results "SELF-DIAG [PAST]" (previously stored in the memory) might not be erased after repair. Go to DIAGNOSTIC PROCEDURE 3, step 8 (BF-7039).
Yes
2
Go to DIAGNOSTIC PROCEDURE 5 (BF-7042).
