SEAT — Front Seat — Exploded View and Torques

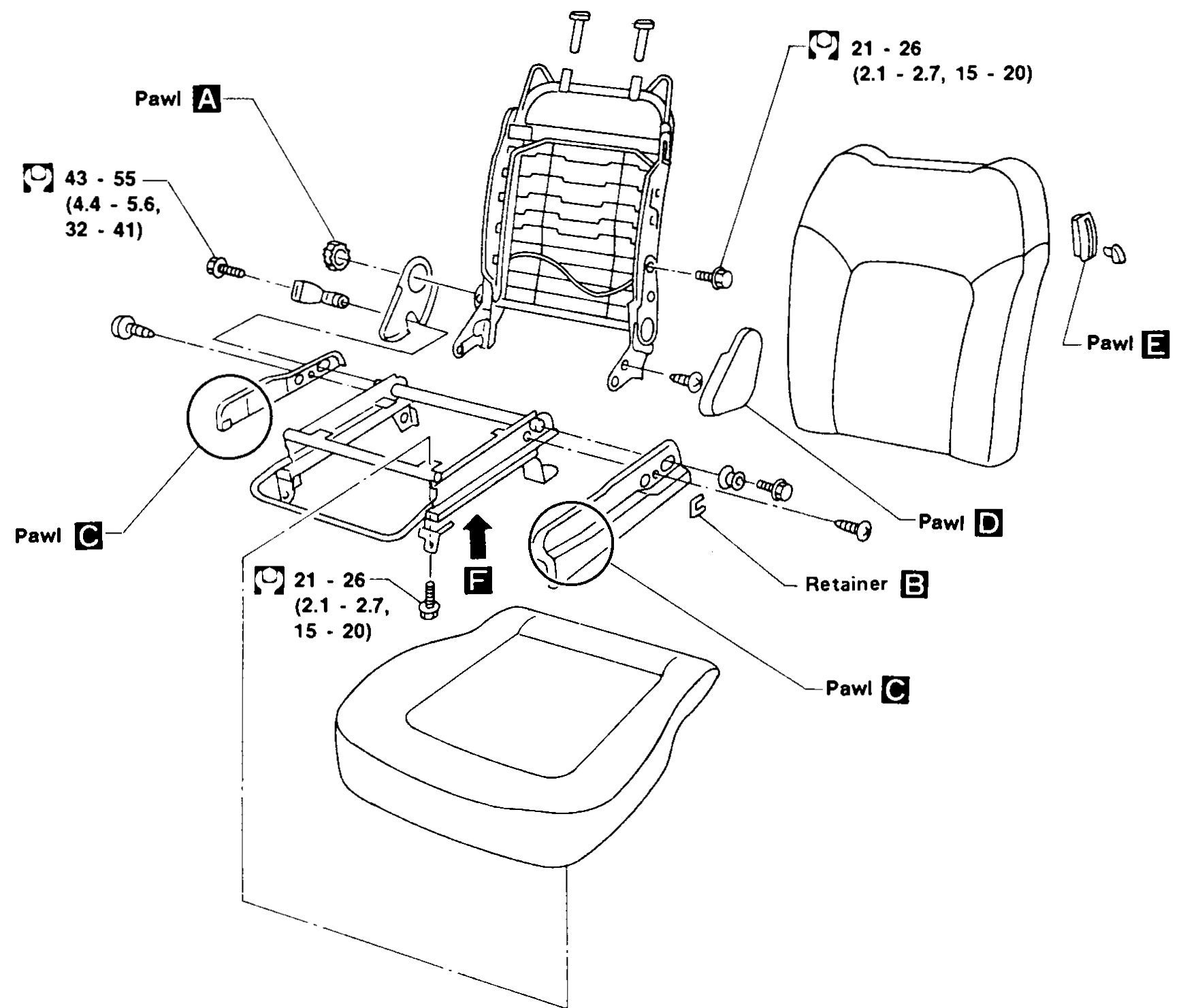

BF-39parts diagramUnverifiedTwo torque tiers: 43-55 N·m for the floor-mounted seat bolts (high-load, front and rear), 21-26 N·m for the lower-load attachments (seat-back, track inner bracket, cushion centre). All Pawl labels A-F refer to release pawls/retainers shown in their respective close-ups (some of which appear on this page; others may be detailed on later pages).
NOTE
When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
Front Seat
Parts Diagram
| Specification | Value |
|---|---|
| Seat-to-floor mounting bolts (front and rear) | 43 - 55N·m |
| Seatback-to-frame and rear seat-track inner brackets | 21 - 26N·m |
| Seat-cushion-to-track centre fixing | 21 - 26N·m |
Seat-to-floor mounting bolts (front and rear)
43 - 55N·m
Seatback-to-frame and rear seat-track inner brackets
21 - 26N·m
Seat-cushion-to-track centre fixing
21 - 26N·m
