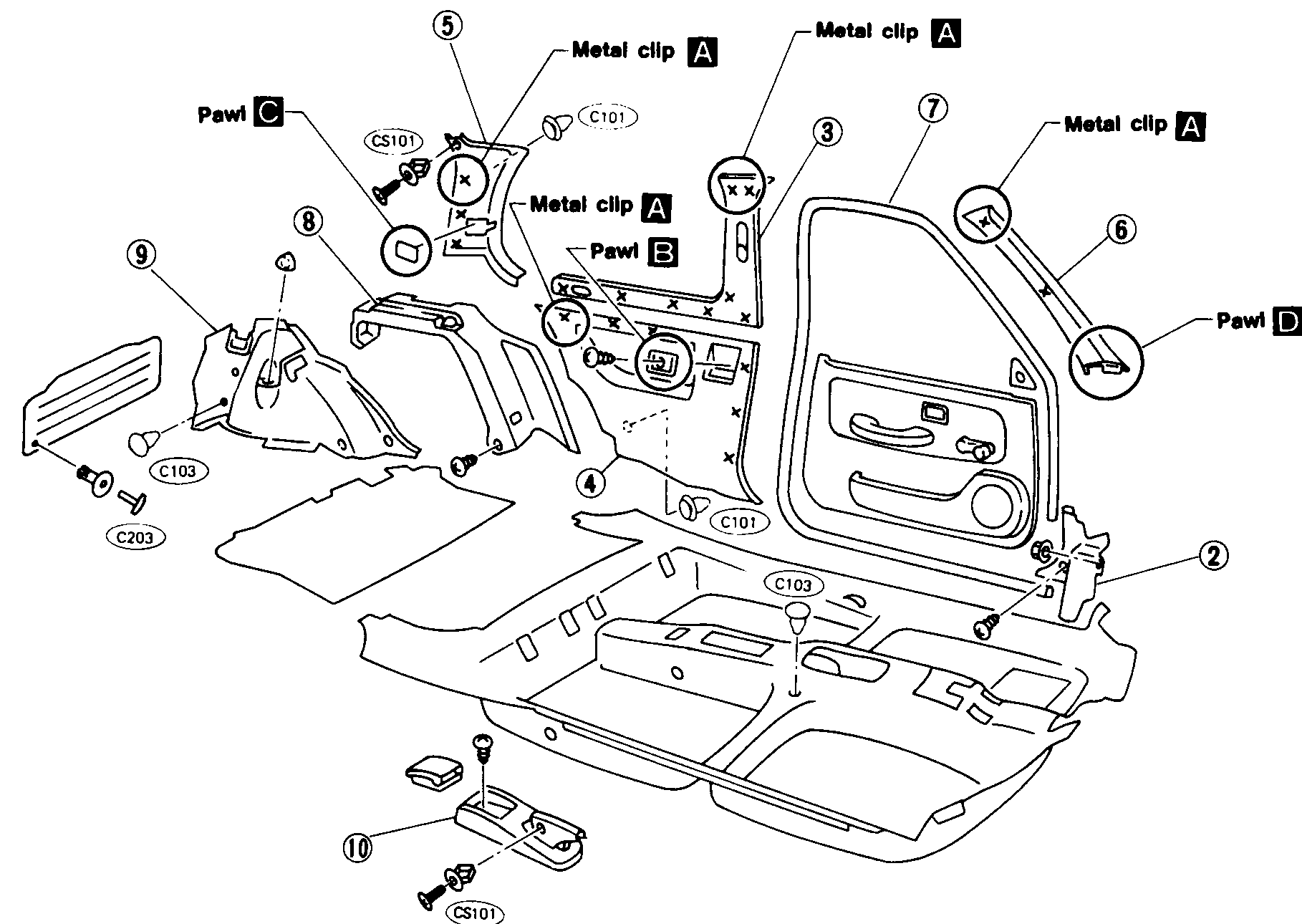

INTERIOR AND EXTERIOR — Interior (Cont'd) — Body Side Trim Exploded View (3-door and 5-door)

Callouts on the 3-door diagram run 2-10; callout 1 is the seat-removal step (procedure step 1 on BF-29 — no separate part drawn). On the 5-door diagram only callouts 2, 3, 4, 5 and 7 are drawn — the 3-door-only items (8 parcel side finisher, 9 luggage side lower finisher, 10 rear console) are not repeated here because they're shared parts shown only on the 3-door view.
