SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Installation — Air Bag Module and Spiral Cable

BF-6020prose procedure

Installation — Air Bag Module and Spiral Cable

Install air bag module and spiral cable

  1. 1
    Set the front wheels in the straight-ahead position.

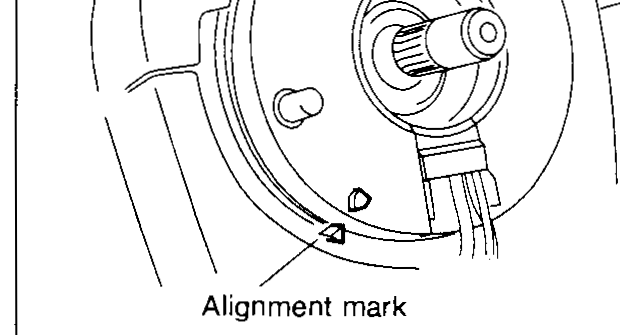

    Two-panel illustration of the steering column / spiral cable showing the 'Alignment mark' at the top of the upper panel and at the bottom of the lower panel. The spiral cable hub assembly is shown with the alignment marks indicated by leader lines.
    NBF354
  2. 2
    Make sure that the spiral cable is in the neutral position. The neutral position is detected by turning left about 3 revolutions from the right end position. Align the two marks (Y).
    The spiral cable may snap due to steering operation if the cable is installed in an improper position.
    Also, with the steering linkage disconnected, the cable may snap by turning the steering wheel beyond the limited number of turns. (The spiral cable can be turned up to 3 turns from the neutral position to both the right and left.)
    Always work from the side of air bag module.
  3. 3
    Connect spiral cable connector and tighten with screws. Install steering column cover.
  4. 4
    Install steering wheel setting spiral cable pin guides, and pull spiral cable through.

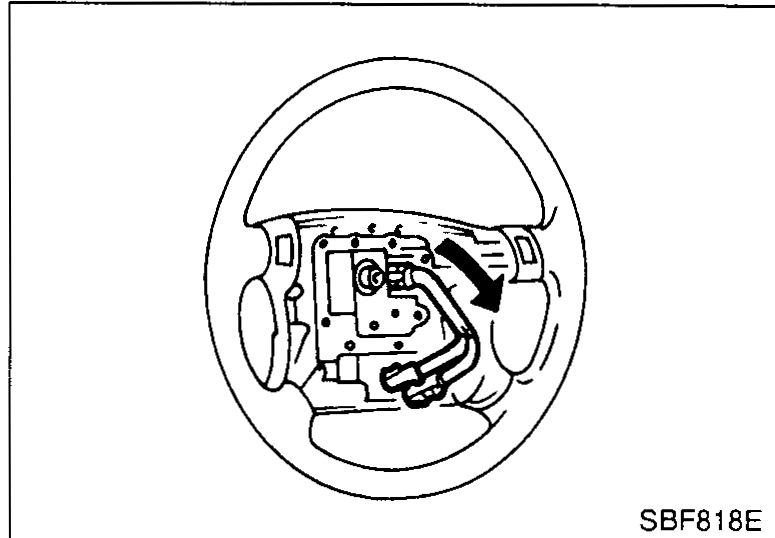

    Rear view of the steering wheel showing the spiral cable connector inserted through the wheel hub with curved arrows indicating engaging pawls and routing of the horn connector.
    SBF818E
  5. 5
    Connect horn connector and engage spiral cable with pawls in steering wheel.
  6. 6
    Tighten nut.
    Tightening torque: 30 - 40 N·m (3.1 - 4.1 kg-m, 22 - 30 ft-lb)
  7. 7
    Position air bag module and tighten with new special bolts.
    Tightening torque: 15 - 25 N·m (1.5 - 2.5 kg-m, 11 - 18 ft-lb)
    Front view of the steering wheel showing the air bag module being installed. A 'Special bolt' callout marks one of the mounting bolts. Torque callout: '15 - 25 N·m (1.5 - 2.5 kg-m, 11 - 18 ft-lb)'.
    NBF004
  8. 8
    Connect air bag module connector.
  9. 9
    Install all lids.
  10. 10
    Conduct self-diagnosis to ensure entire SRS operates properly. (Use CONSULT or warning lamp check.) Before performing self-diagnosis, connect both battery cables.
  11. 11
    Turn steering wheel to the left end and then to the right end fully to make sure that spiral cable is set in the neutral position. If air bag warning lamp blinks or stays ON (at the user mode), it shows the spiral cable may be snapped due to its improper position. Perform self-diagnosis again (use CONSULT or warning lamp). If a malfunction is detected, replace the spiral cable with a new one.
Steering wheel nutTightening torque
30 - 40N·m
Air bag module special boltsTightening torque
15 - 25N·m
