SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Removal — Air Bag Module and Spiral Cable (Cont'd)
BF-2007prose procedureAirbag module storage temperature limit: 100°C (212°F).
Removal — Air Bag Module and Spiral Cable (Cont'd)
CAUTION
• Always place air bag module with pad side facing upward.
• Do not attempt to disassemble air bag module.
• The special bolts are coated with bonding agent. Discard old ones after removal; replace with new ones.
• Do not drop or impact air bag module. If any area is deformed or cracked, replace the module.
• Do not expose the air bag module to temperatures exceeding 100°C (212°F).
• Do not allow oil, grease or water to come in contact with the air bag module.
- 3Set steering wheel in the neutral position.
- 4Remove center nut.

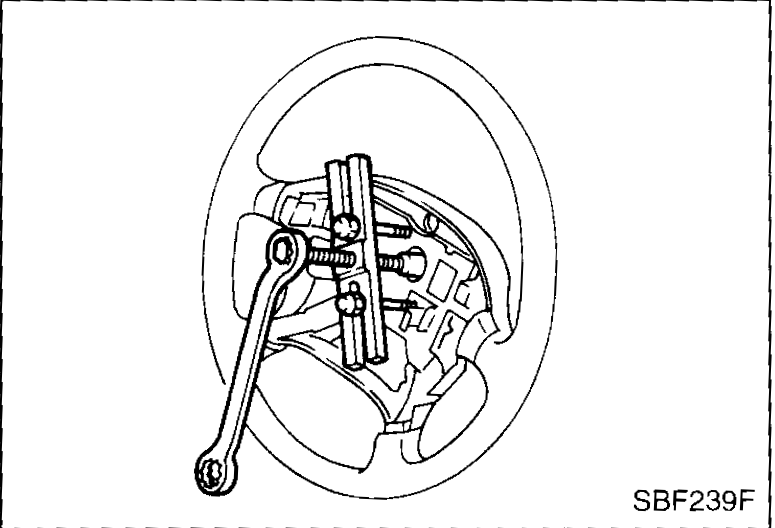

- 5Using steering wheel puller, remove steering wheel. Be careful not to over-tighten puller bolt on steering wheel.
SBF239F - 6Remove steering column upper and lower covers.

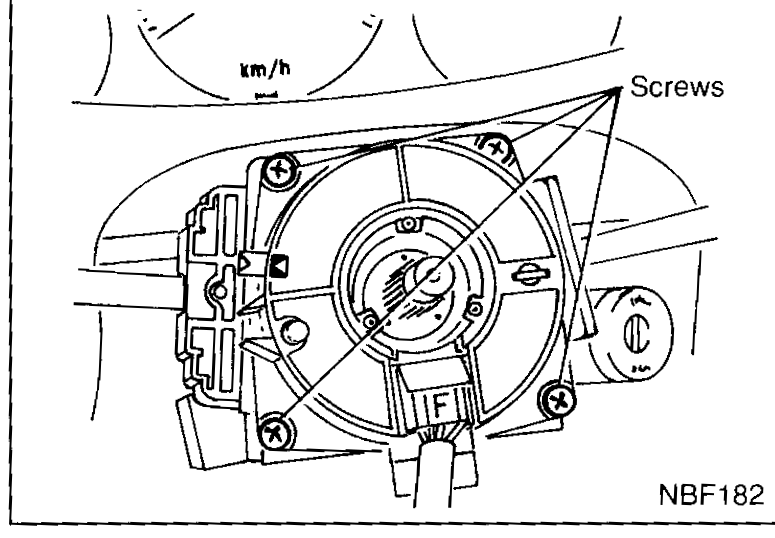

- 7Disconnect harness and remove the four screws. The spiral cable can then be removed.
NBF182
