INTERIOR AND EXTERIOR — Interior (Cont'd) — Roof Trim — Headlining Removal
BF-31prose procedureSun-roof equipped models have a welt joint at the headlining centre opening — handle with extra care during removal.
Interior (Cont'd)
ROOF TRIM
Removal — Headlining
Headlining — removal
- 1Remove body side trim. Refer to 'Removal — Body side trim' for details.
- 2Remove sunvisors.
- 3Remove assist grip.

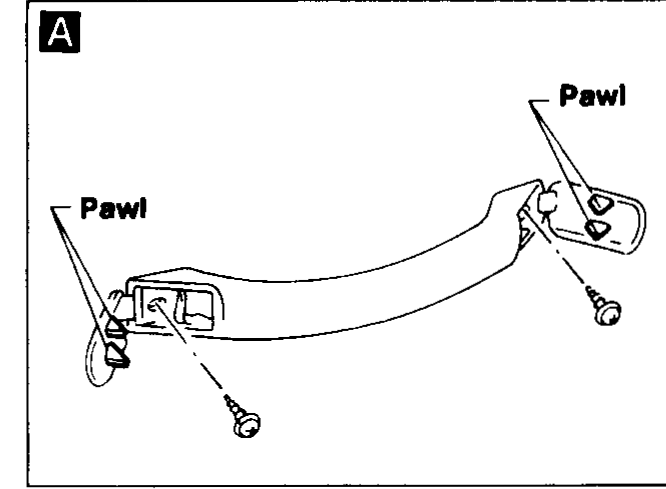

A - 4Remove interior lamp.
- 5Remove headlining.For models equipped with sun roof: pay attention to the welt-joint portion along the roof opening.
- 6Remove roof rear garnish.

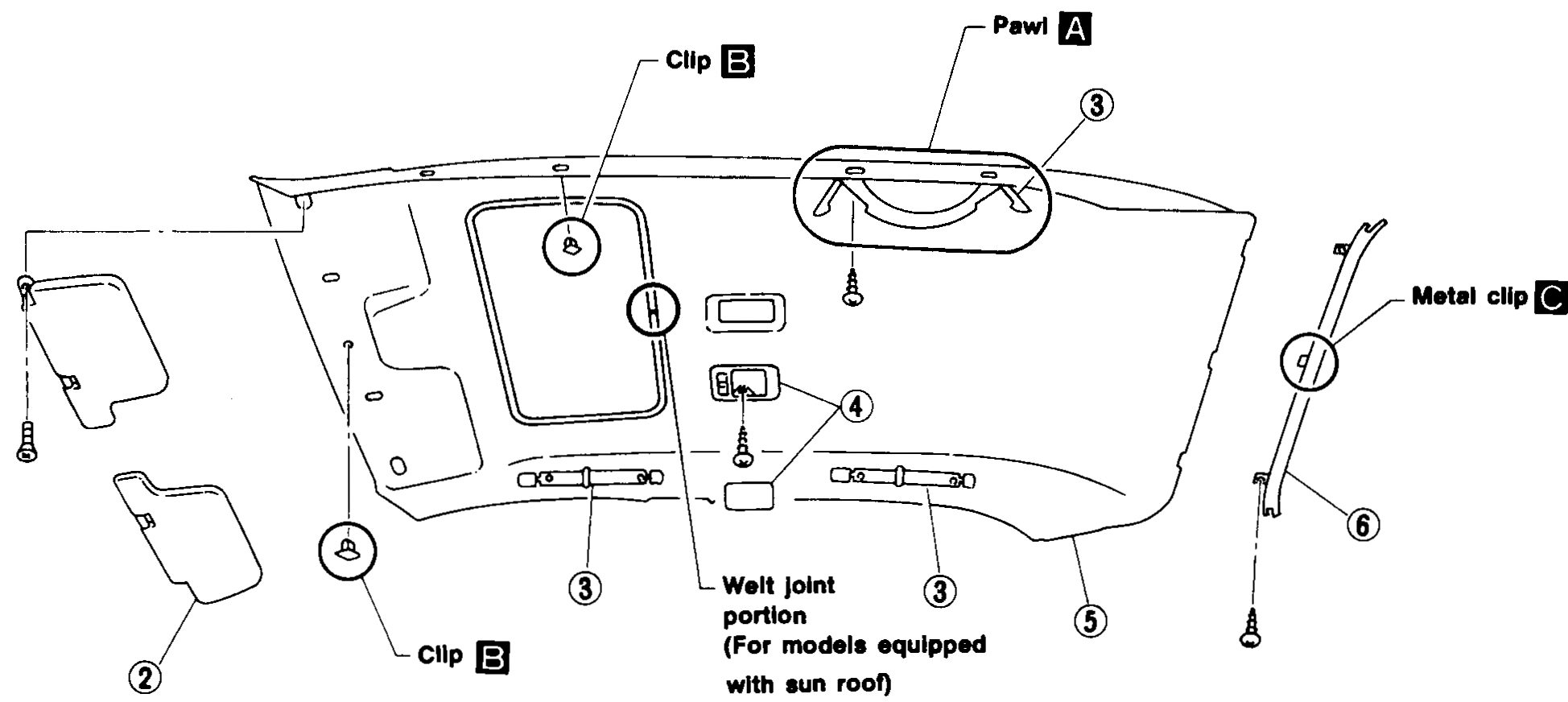

Parts Diagram
