SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Removal — Air Bag Module and Spiral Cable (Cont'd) — Installation

BF-7024prose procedure
Continued from BF-7023

Removal — Air Bag Module and Spiral Cable (Cont'd)

INSTALLATION

Air bag module and spiral cable — installation

  1. 1
    Set the front wheels in the straight-ahead position.
  2. 2
    Make sure that the spiral cable is in the neutral position. The neutral position is detected by turning left (clockwise) about 2.5 revolutions from the right end position. Align the two marks (▽).
    The spiral cable may snap due to steering operation if the cable is installed in an improper position.
    Also, with the steering linkage disconnected, the cable may snap by turning the steering wheel beyond the limited number of turns. The spiral cable can be turned up to about 2.5 turns from the neutral position to both the right and left.

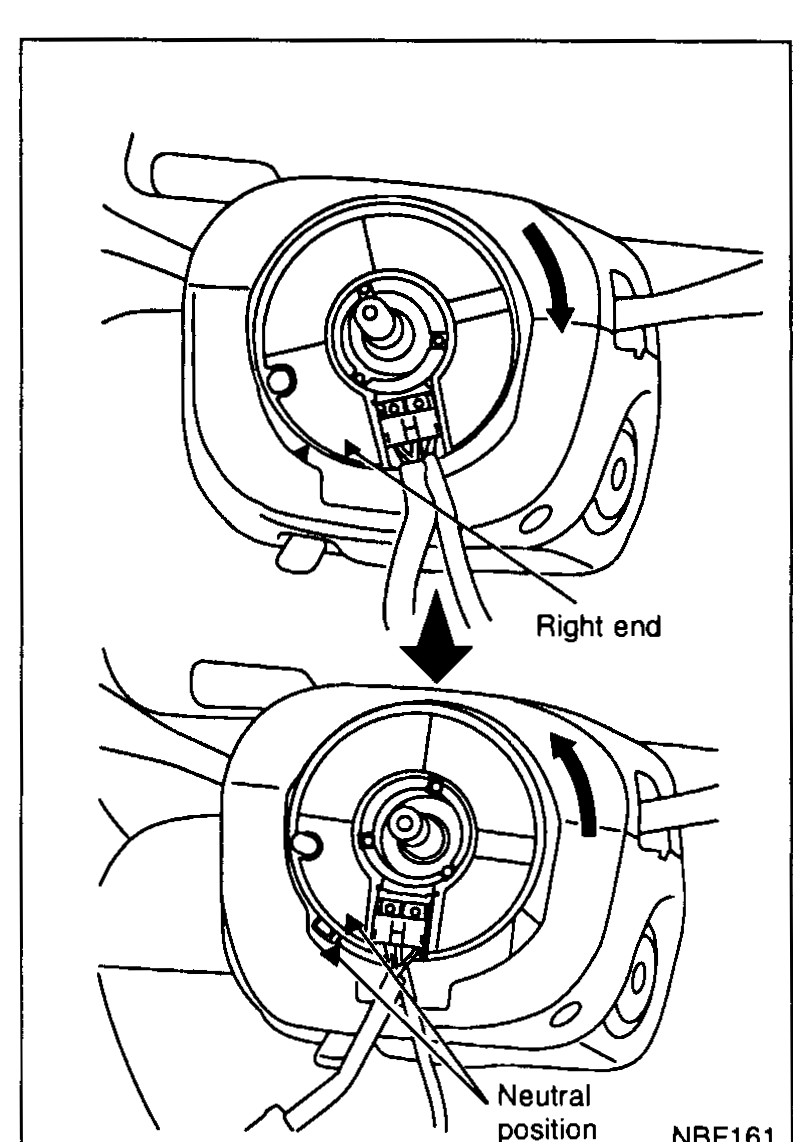

    Spiral cable centering procedure. Top: spiral cable rotated counter-clockwise to the Right end stop with arrow. Bottom: spiral cable returned 2.5 turns to the Neutral position; two alignment marks (chevrons) are shown aligned at the indicated position.
    NBF161
  3. 3
    Connect spiral cable connector and tighten with screws. Install steering column cover.
  4. 4
    Install steering wheel, aligning with spiral cable pin guides, and pull spiral cable through.
  5. 5
    Connect horn connector and engage spiral cable with pawls in steering wheel. Move driver air bag module connector away from steering wheel lower lid opening.
  6. 6
    Tighten nut. Tightening torque: 29.4 - 39.2 N·m (3.0 - 4.0 kg-m, 22 - 28 ft-lb).
  7. 7
    Position driver air bag module and tighten with new special bolts.

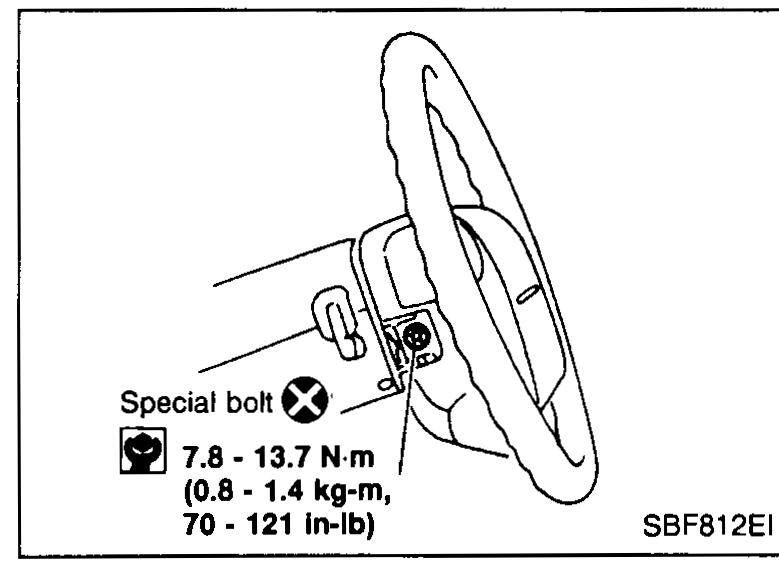

    Steering wheel with driver air bag module being secured by the special bolt. Torque callout: 7.8 - 13.7 N·m (0.8 - 1.4 kg-m, 70 - 121 in-lb).
    SBF812E1
  8. 8
    Connect driver air bag module connector.
  9. 9
    Install steering switches and lids.
  10. 10
    Conduct self-diagnosis to ensure entire SRS operates properly. (Use CONSULT-II or warning lamp check.) Before performing self-diagnosis, connect both battery cables.
  11. 11
    Turn steering wheel to the left end and then to the right end fully to make sure that spiral cable is set in the neutral position. If "AIR BAG" warning lamp blinks or stays ON (at the user mode), it shows the spiral cable may be snapped due to its improper position. Perform self-diagnosis again (use CONSULT-II or warning lamp). If a malfunction is detected, replace the spiral cable with a new one.
  12. 12
    Perform self-diagnosis again to check that no malfunction is detected.
Center nutTightening torque
29.4 - 39.2N·m
Special bolt (driver air bag module)Tightening torque
7.8 - 13.7N·m
