SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Removal — Air Bag Module and Spiral Cable

BF-2006prose procedure

Special bolts (×) must be replaced with new ones each time the module is removed.

Removal — Air Bag Module and Spiral Cable

WARNING

Do not disassemble the air bag module.

CAUTION

Before servicing SRS, turn the ignition switch off, disconnect battery ground cable and wait for at least 10 minutes.

1

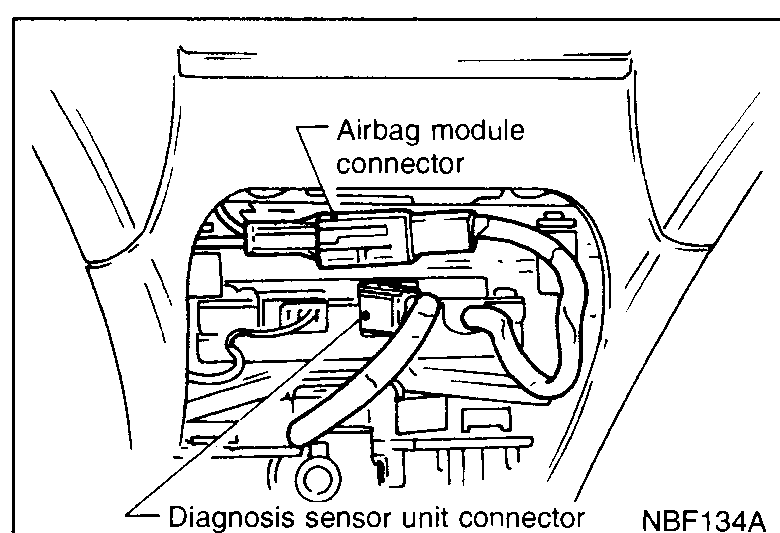

Remove lower lid from steering wheel, and disconnect air bag module connector and Diagnosis sensor unit connector.
NBF134A
2
Remove side lids. Using the T50H torx bit, remove left and right special bolts. Air bag module can then be removed.
NBF004

Parts Diagram

#	Part Name	Notes
1	Spiral cable	Mount bolts: 1.2 - 1.6 N·m (0.12 - 0.16 kg-m, 0.9 - 1.2 ft-lb)
2	Diagnosis sensor unit (mounted with steering wheel)	Do not separate the diagnosis sensor unit from the steering wheel
3	Air bag module — Side lid RH	Special bolt: 15 - 25 N·m (1.5 - 2.5 kg-m, 11 - 18 ft-lb); replace after each removal
4	Air bag module — Side lid LH	Special bolt: 15 - 25 N·m (1.5 - 2.5 kg-m, 11 - 18 ft-lb); replace after each removal
5	Air bag module (driver airbag)	—
6	Steering wheel centre nut	30 - 40 N·m (3.1 - 4.1 kg-m, 22 - 30 ft-lb)
7	Lower lid	—
