TROUBLE DIAGNOSES — Supplemental Restraint System (SRS) — Trouble Diagnoses with CONSULT-II (Cont'd) — DIAGNOSTIC PROCEDURE 5 (continued)
BF-7043prose procedureUnverifiedPrinted reference 'page RS-7044' for Intermittent Malfunction Diagnostic Code Chart likely typo for BF-7044 — preserved verbatim.
Trouble Diagnoses with CONSULT-II (Cont'd)
NOTE
If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".
Inspecting SRS intermittent malfunction (CONSULT-II) — continuation

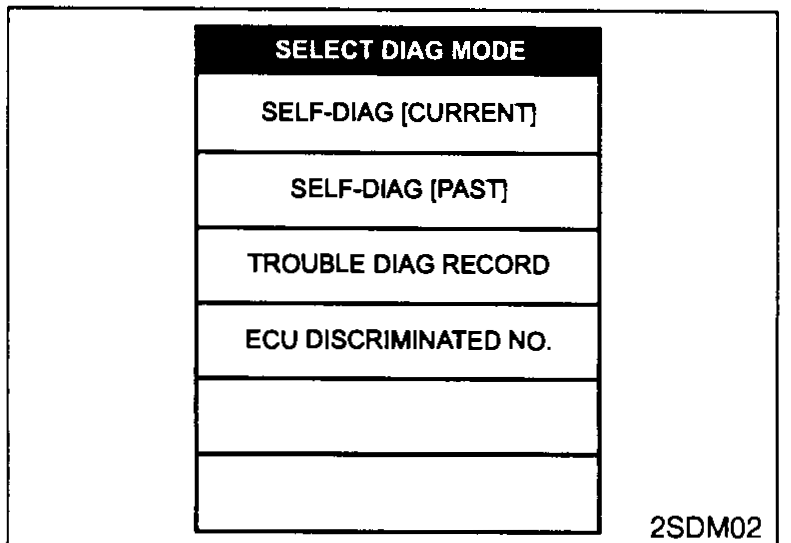

- 8Touch "TROUBLE DIAG RECORD".WITH "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.
![CONSULT-II SELECT DIAG MODE — SELF-DIAG [CURRENT], SELF-DIAG [PAST], TROUBLE DIAG RECORD, ECU DISCRIMINATED NO.](/images/BODY_1__page_086_fig2.png)

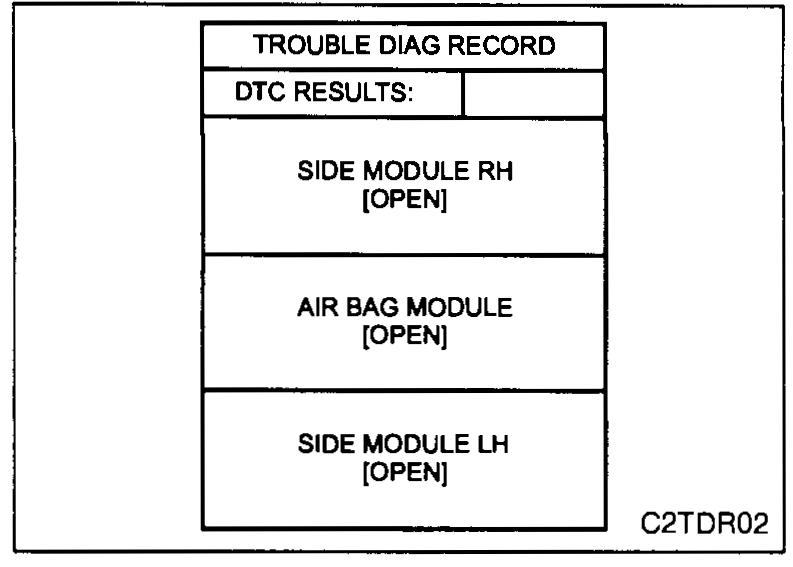

2SDM02 - 9Diagnostic code is displayed on "TROUBLE DIAG RECORD".
![CONSULT-II TROUBLE DIAG RECORD screen — DTC RESULTS: SIDE MODULE RH [OPEN], AIR BAG MODULE [OPEN], SIDE MODULE LH [OPEN].](/images/BODY_1__page_086_fig3.png)
C2TDR02 - 10Touch "PRINT".
- 11Compare diagnostic codes to "Intermittent Malfunction Diagnostic Code Chart", page RS-7044.
- 12Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears.
- 13Turn ignition switch "OFF", then turn off and disconnect CONSULT-II, and both battery cables.
- 14Repair the system as outlined by the "Repair order" in "Intermittent Malfunction Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to "Removal and Installation" — Diagnosis sensor unit, Seatbelt pre-tensioner and Satellite Sensor" in BF section of Service Manual.
- 15Go to DIAGNOSTIC PROCEDURE 3, page BF-7039, for final checking.
