TROUBLE DIAGNOSES — Supplemental Restraint System (SRS) — Trouble Diagnoses with CONSULT-II (Cont'd) — DIAGNOSTIC PROCEDURE 5

BF-7042prose procedure
Continued from BF-7041

Trouble Diagnoses with CONSULT-II (Cont'd)

DIAGNOSTIC PROCEDURE 5

Inspecting SRS intermittent malfunction by using CONSULT-II — Diagnosis mode

Inspecting SRS intermittent malfunction (CONSULT-II)

  1. 1
    Turn ignition switch "OFF".
  2. 2
    Connect CONSULT-II to Data link connector.

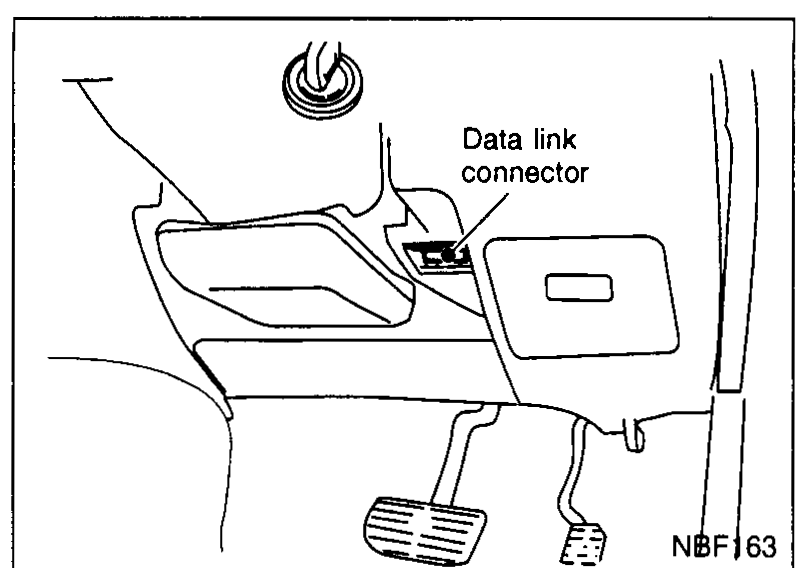

    Driver-side footwell — Data link connector mounted under the lower instrument panel above the pedals.
    NBF163
  3. 3
    Turn ignition switch "ON".
  4. 4
    Touch "START".
    CONSULT-II top screen — NISSAN, AED99A — START and SUB MODE keys.
    C2NCS01
  5. 5
    Touch "AIR BAG".

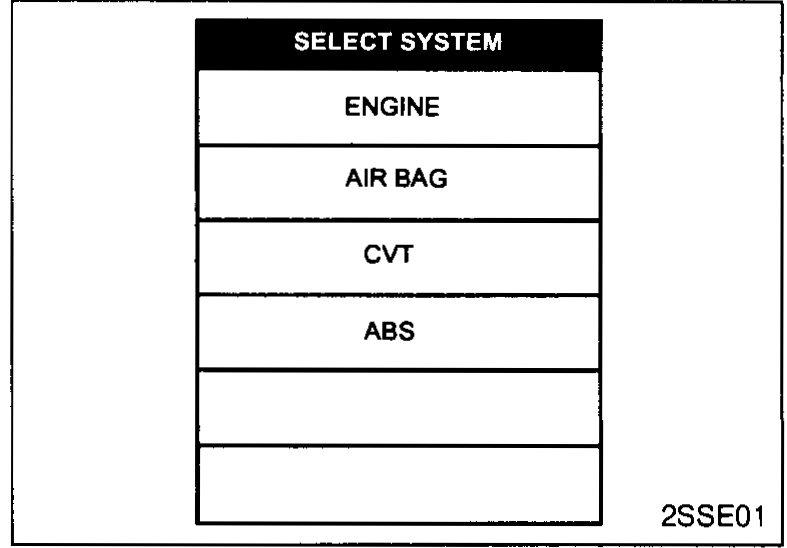

    CONSULT-II SELECT SYSTEM screen — ENGINE, AIR BAG, CVT, ABS.
    2SSE01
  6. 6
    Touch "SELF-DIAG [PAST]".

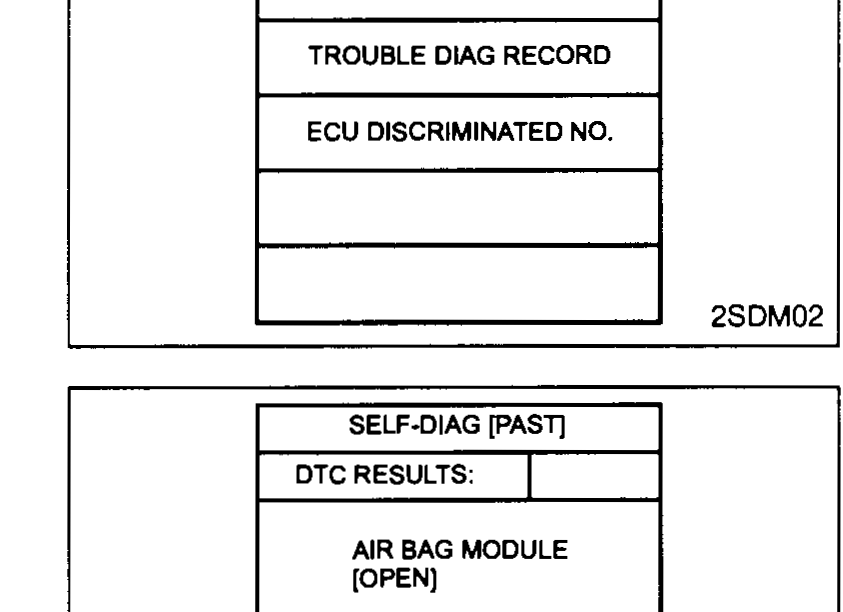

    CONSULT-II SELECT DIAG MODE — SELF-DIAG [CURRENT], SELF-DIAG [PAST], TROUBLE DIAG RECORD, ECU DISCRIMINATED NO.
    2SDM02
  7. 7
    If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10.
    CONSULT-II SELF-DIAG [PAST] screen — DTC RESULTS: "AIR BAG MODULE [OPEN]".
    C2SDP01
