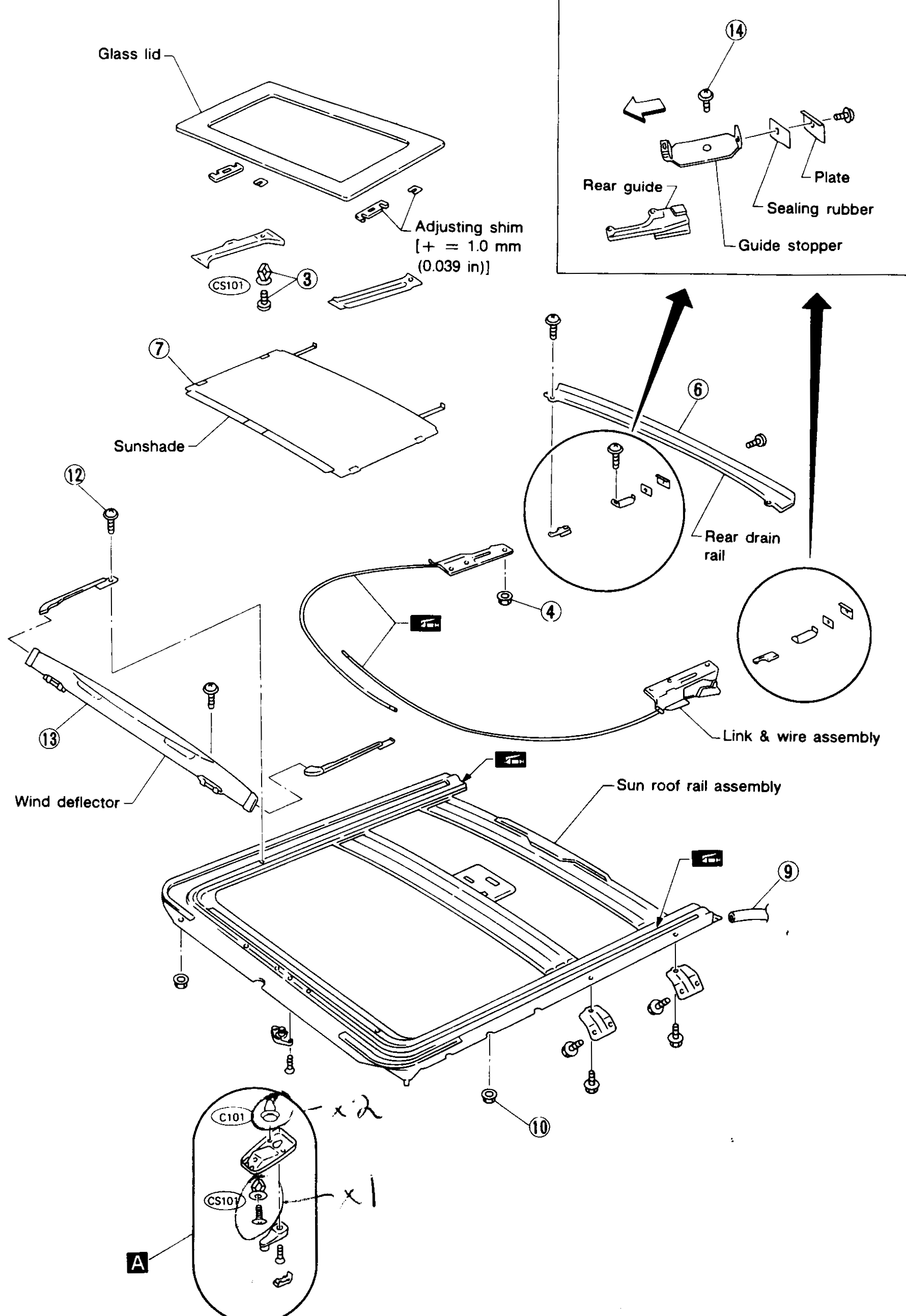

SUNROOF — Exploded View

Callouts (3), (4), (6), (7), (9), (10), (12), (13), (14) are numbered on this exploded view. Glass lid, Link & wire assembly, Sun roof rail assembly are labeled by name but lack circled numeric callouts in the printed source — IDs *0/*1/*2 assigned for downstream-renderer convenience. Detail A is the front guide-bracket fixing — the two offset marks x1 and x2 are the fore/aft adjustment shim positions for lid-to-roof alignment.
