SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Removal — Side Air Bag Module (Cont'd) — Installation
BF-7026prose procedureRemoval — Side Air Bag Module (Cont'd)
CAUTION
- Always place the air bag module with the stud bolts side facing down.
- Do not attempt to disassemble air bag module.
- The torx nuts are coated with bonding agent. Do not use old nuts after removal; replace with new coated nuts.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.
- Replace air bag module if it has been dropped or sustained an impact.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).
- Do not allow oil, grease or water to come in contact with the air bag module.
- After air bag inflates, all parts of front seat back (including front seat back frame) should be replaced.
Installation — Side Air Bag Module
Side air bag module — installation
- 1Install side air bag module on seat back frame with new torx nuts coated with bonding agent.
NBF162 - 2Install the seat back trim. Refer to "Front Seat" in BF-section.

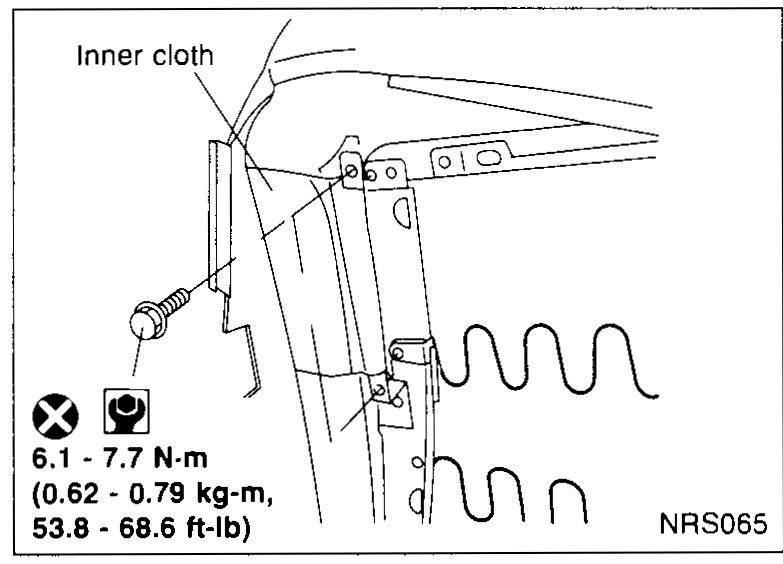

- 3Secure the inner cloth which covers the side air bag module with bolts.
![Inner cloth secured to seat back frame with bolts. Tightening torque 6.1 - 7.7 N·m (0.62 - 0.79 kg-m, 53.8 - 68.6 ft-lb [?] — likely in-lb).](/images/BODY_1__page_069_fig4.png)

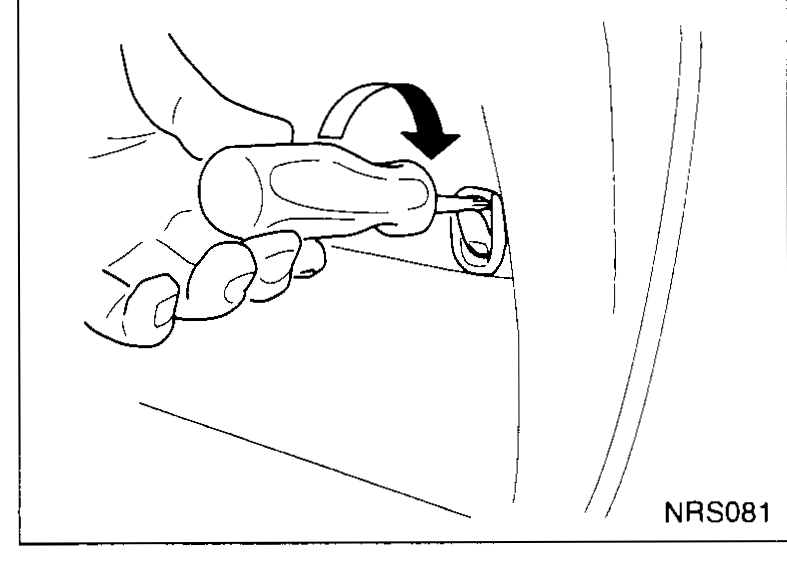

NRS065 - 4Install the seat back board with new clips.
- 5Install the front seat convenience hook and secure with screw (driver's seat only).
NRS081
| Specification | Value |
|---|---|
| Side air bag module torx nuts (new, coated with bonding agent)Tightening torque | 6.1 - 7.7N·m |
| Inner cloth / seat back frame boltsTightening torque | 6.1 - 7.7N·m |
Side air bag module torx nuts (new, coated with bonding agent)Tightening torque
6.1 - 7.7N·m
Inner cloth / seat back frame boltsTightening torque
6.1 - 7.7N·m
