SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Removal — Side Air Bag Module
BF-7025prose procedureRemoval — Side Air Bag Module
CAUTION
Before servicing SRS, turn the ignition switch "OFF", disconnect both battery cables and wait at least 3 minutes.
Side air bag module — removal
- 1Slide the front seat all the way forward.

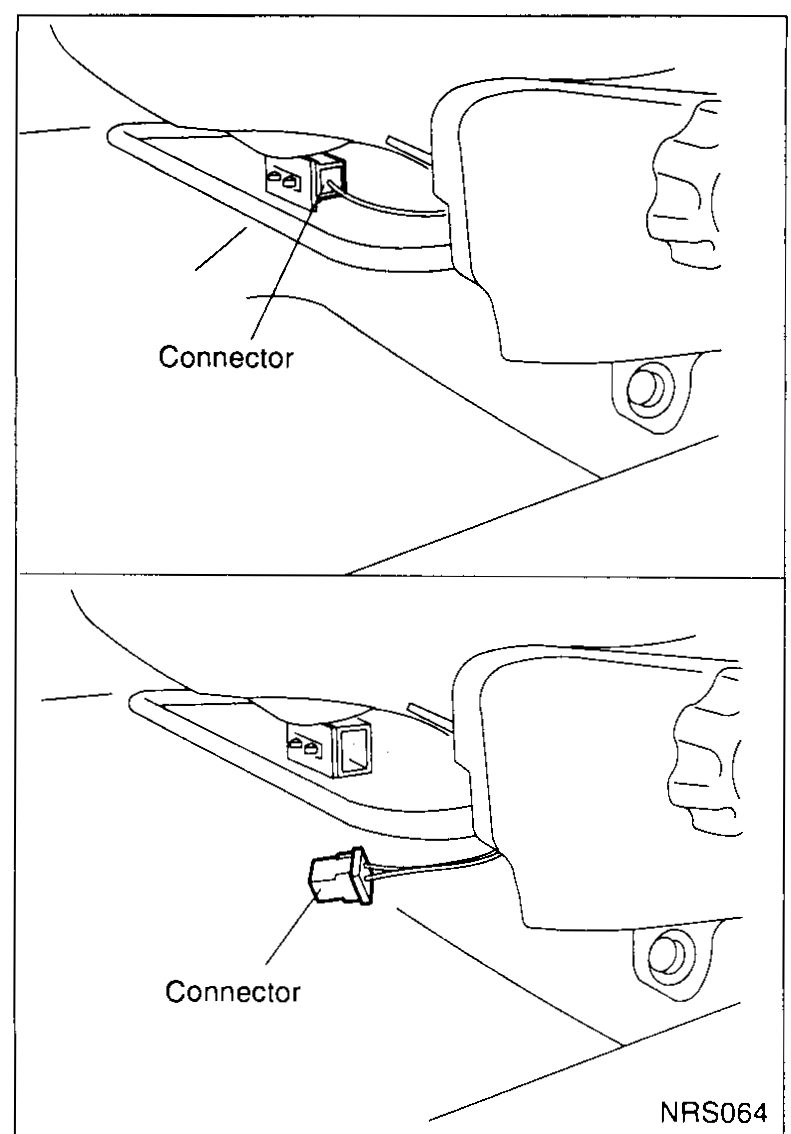

- 2Disconnect side air bag module connector under the seat.

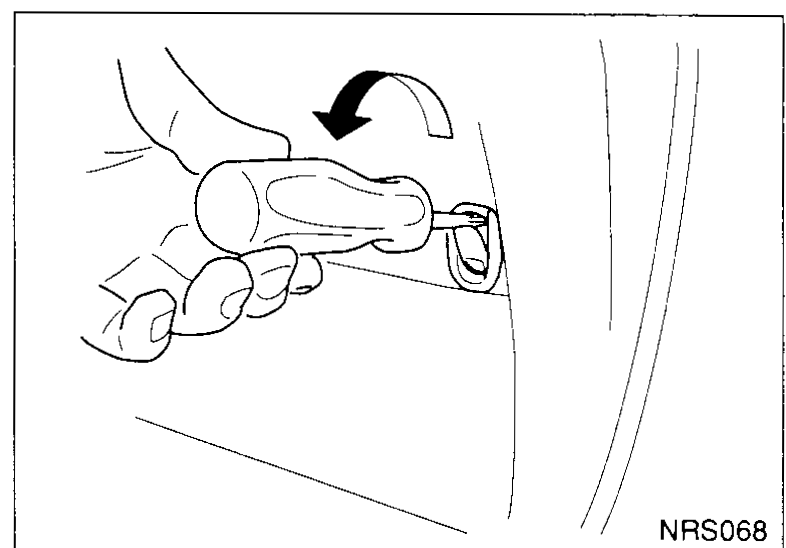

NRS064 - 3Remove screw securing the front seat convenience hook (driver's seat only).When using a clip removal tool to remove the seat back finisher, take care not to damage the air bag harness.
NRS068 - 4Remove the seat back board.
- 5Pull up the seat back trim.

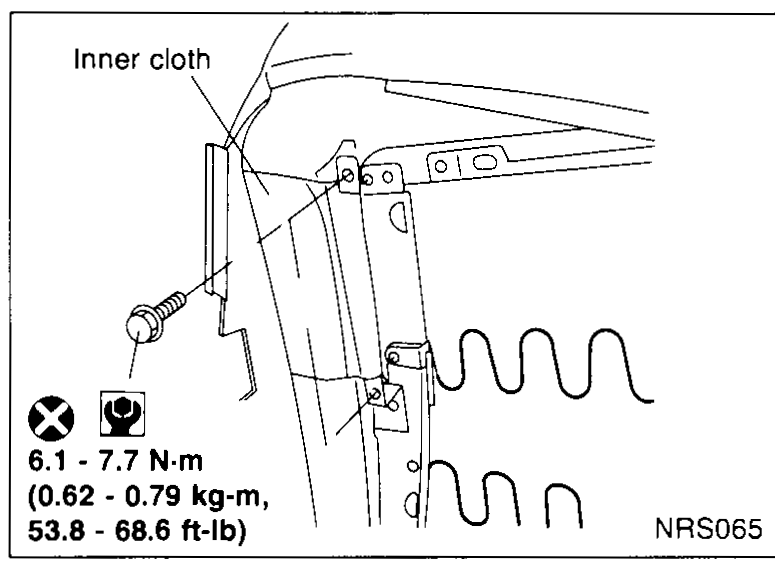

- 6Remove the bolts securing the inner cloth with seat back frame. Then pull up the inner cloth.
![Side cross-section showing the inner cloth attached to the seat back frame. Two bolts hold the inner cloth; tightening torque 6.1 - 7.7 N·m (0.62 - 0.79 kg-m, 53.8 - 68.6 ft-lb [?] — likely in-lb).](/images/BODY_1__page_068_fig3.png)
NRS065 - 7Remove the seat back trim. Refer to "Front Seat" in BF section for details.

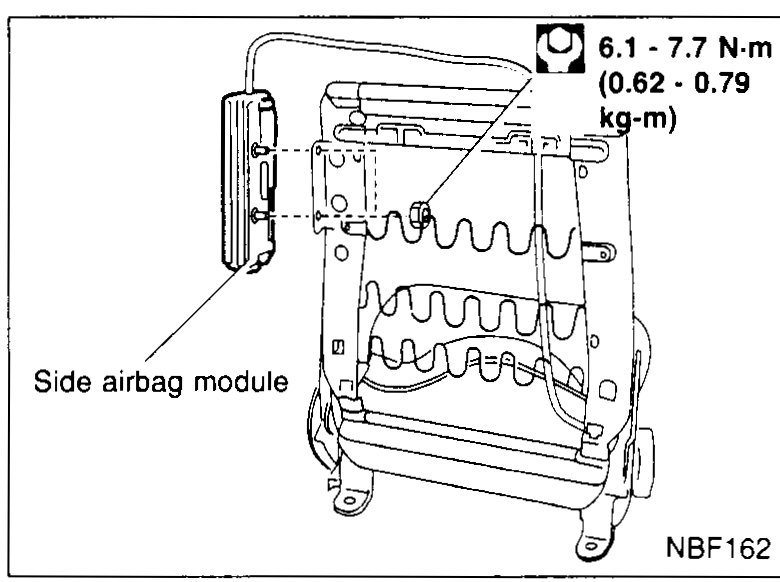

- 8Remove the torx nuts coated with bonding agent from the side air bag module.
NBF162 - 9Remove side air bag connector. Side air bag module can then be removed.
| Specification | Value |
|---|---|
| Inner cloth / seat back frame boltsTightening torque | 6.1 - 7.7N·m |
| Side air bag module torx nuts (coated with bonding agent)Tightening torque | 6.1 - 7.7N·m |
Inner cloth / seat back frame boltsTightening torque
6.1 - 7.7N·m
Side air bag module torx nuts (coated with bonding agent)Tightening torque
6.1 - 7.7N·m
See also
BF — Front Seat
