DOOR — Rear Door (5-Door Hatchback)

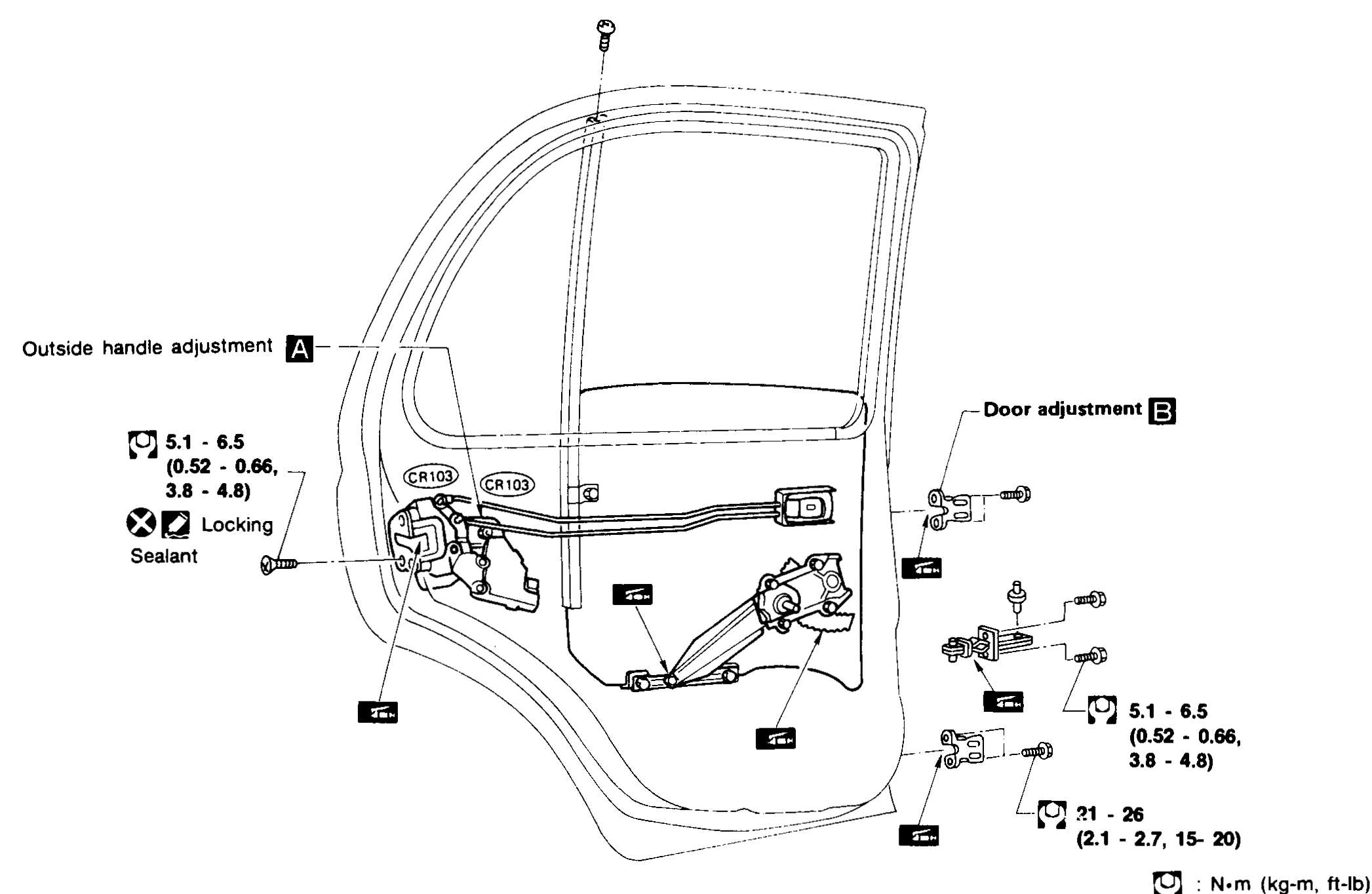

BF-11parts diagramUnverifiedRear-door 5-door variant. The figure A label is printed as 'Outside hanc e adjustment' on the page (typo); preserved verbatim in the figure description.
Rear Door
5-DOOR HATCHBACK
Parts Diagram
| Specification | Value |
|---|---|
| Outside handle / regulator boltTightening torque | 5.1 - 6.5N·m |
| Door latch / striker bolt (left side of door)Tightening torque | 21 - 26N·m |
| Hinge body bolt (B)Tightening torque | 25 - 31N·m |
| Striker plate boltTightening torque | 13 - 16N·m |
| Outside handle adjustment clearance (A)Clearance between holder and rod | More than 1.0 (0.039)mm (in) |
Outside handle / regulator boltTightening torque
5.1 - 6.5N·m
Door latch / striker bolt (left side of door)Tightening torque
21 - 26N·m
Hinge body bolt (B)Tightening torque
25 - 31N·m
Striker plate boltTightening torque
13 - 16N·m
Outside handle adjustment clearance (A)Clearance between holder and rod
More than 1.0 (0.039)mm (in)
