SEAT — Rear Seat — Split Type and Bench Type Exploded Views
BF-42parts diagramTwo rear-seat variants on K11: Split type (folding 50/50) and Bench type (one-piece). Same hinge/latch/striker hardware and torques — only the seatback split and the upper C103 clip differ. All seat-attachment hardware uses the 13-16 N·m tier except the through-bolts on the latch/hinge brackets which use 5.1-6.5 N·m.
Rear Seat

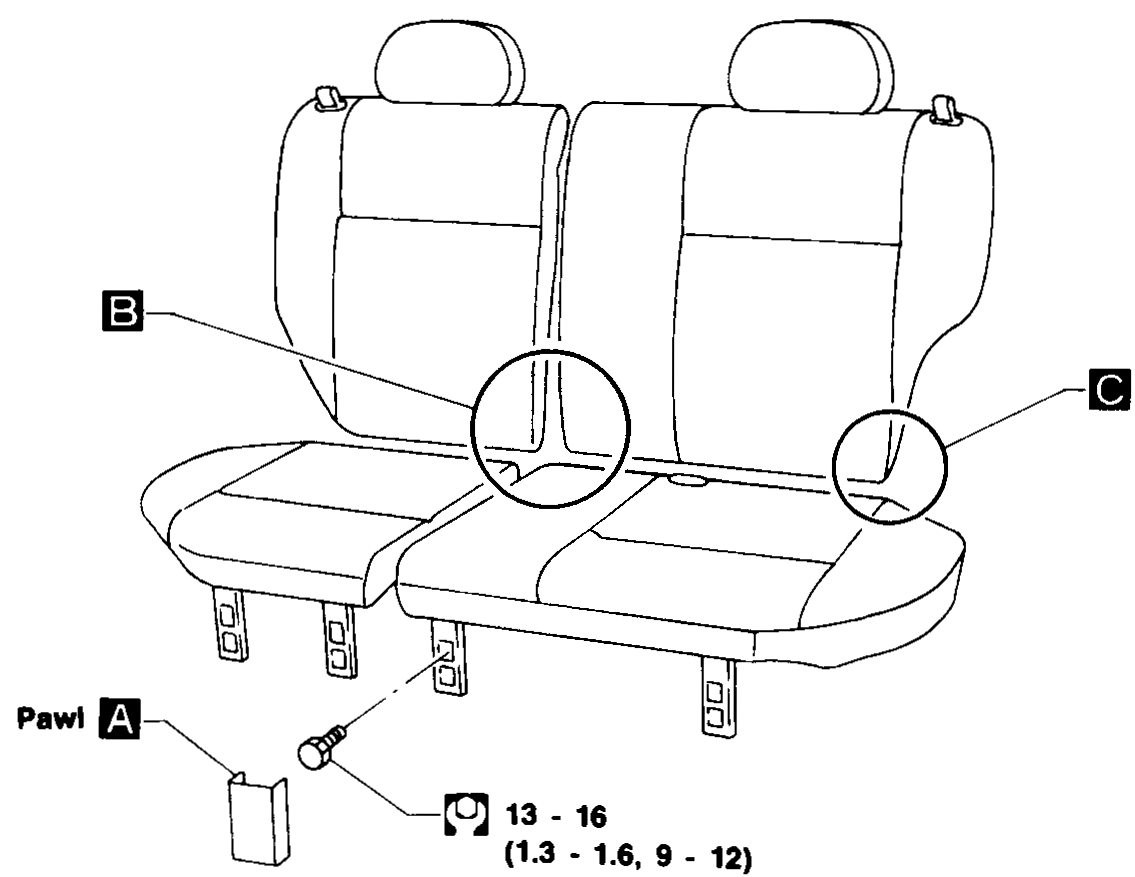

SPLIT TYPE
Parts Diagram
BENCH TYPE
Parts Diagram
| Specification | Value |
|---|---|
| Seatback hinge/latch through-bolt (small) | 5.1 - 6.5N·m |
| Seat-cushion / hinge-bracket / striker / latch-bracket bolts | 13 - 16N·m |
Seatback hinge/latch through-bolt (small)
5.1 - 6.5N·m
Seat-cushion / hinge-bracket / striker / latch-bracket bolts
13 - 16N·m
Striker installation
- 1Position the striker on the body striker pad and start the mounting bolt by hand.
- 2Torque the striker mounting bolt to 13 - 16 N·m (1.3 - 1.6 kg·m, 9 - 12 ft·lb).
MBF953A
