SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — Disposal of Air Bag Module (Cont'd)
BF-6025prose procedureDisposal of Air Bag Module (Cont'd)
Deploy side air bag module outside of vehicle (continued)

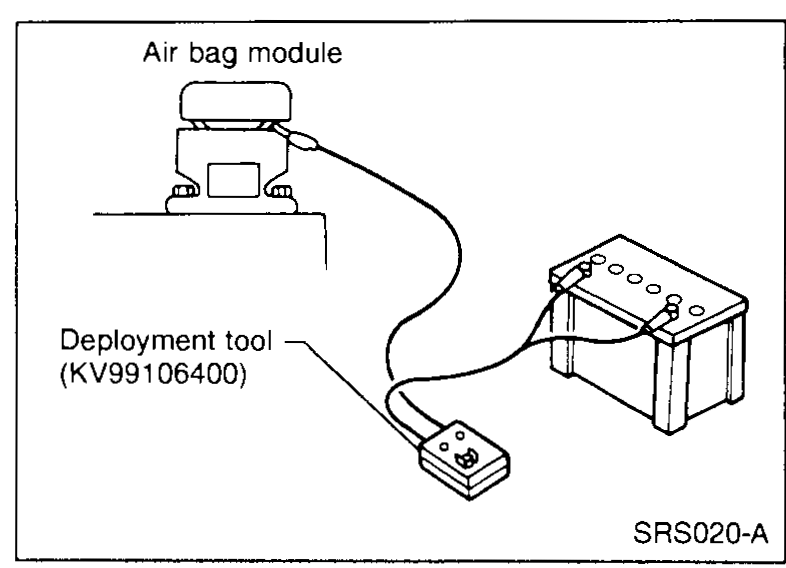

- 5Connect red clip of deployment tool to battery positive terminal and black clip to negative terminal.
SRS020-A - 6The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
- 7Press the button on the deployment tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.When deploying the air bag module, stand at least 5 m (16 ft) away from the air bag module.
DEPLOYMENT OF AIR BAG MODULE WHILE MOUNTED IN VEHICLE
When disposing of a vehicle, deploy air bag modules while they are mounted in vehicle.
CAUTION
When deploying air bag module ensure vehicle is empty.
Deploy air bag module while mounted in vehicle
- 1Disconnect both vehicle battery cables and wait 3 minutes.

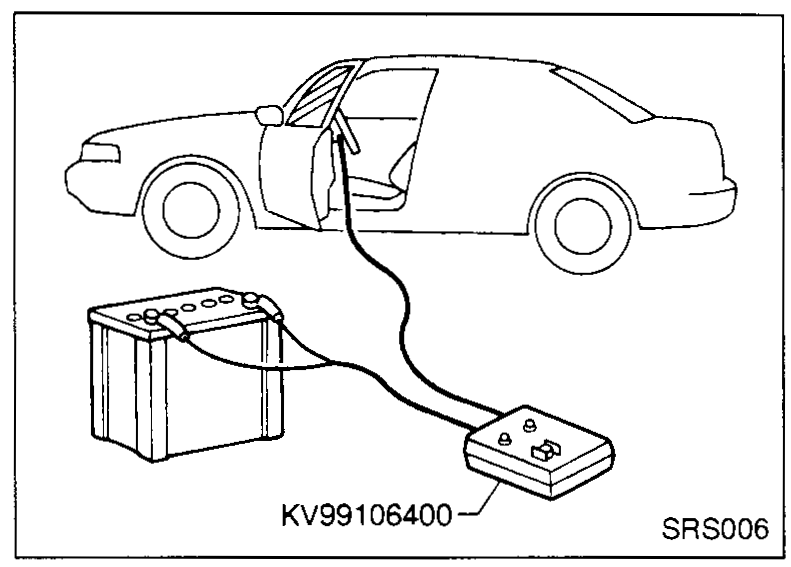

SRS006 - 2Disconnect air bag module connector.
- 3Connect deployment tool [SST: KV99106400] to air bag module. For front passenger air bag module, attach deployment tool adapter [SST: KV991065S0] to the tool connector.
- 4Connect red clip of deployment tool to battery positive terminal and black clip to negative terminal.
- 5The lamp on the right side of the tool marked "deployment tool power", should glow green, not red.
- 6Press the button on the deployment tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.
CAUTION
Activate only one air bag module at a time.
DISPOSING OF AIR BAG MODULE
Deployed air bag modules are very hot. Before disposing of air bag module, wait at least 30 minutes. Seal them in a plastic bag before disposal.
CAUTION
Never apply water to a deployed air bag module.
Be sure to wear gloves when handling a deployed air bag module.
No poisonous gas is produced upon air bag module deployment. However, be careful not to inhale gas since it irritates throat and can cause choking.
Do not attempt to disassemble air bag module.
Air bag module cannot be reused.
Wash your hands clean after finishing work.
