Body Front End (Cont'd)
Hood lock adjustment
NOTE
- Adjust hood so that hood primary lock meshes at a position 1 to 1.5 mm (0.039 to 0.059 in) lower than fender.
- After hood lock adjustment, adjust bumper rubber.
- When securing hood lock, ensure it does not tilt. Striker must be positioned at the center of hood primary lock.
- After adjustment, ensure that hood primary and secondary lock operate properly.
Hood lock secondary latch hooking length
| Specification | Value |
|---|---|
| Hood lock secondary latch hooking lengthGap between hood and secondary latch | More than 5.0 (0.197)mm (in) |
Hood lock secondary latch hooking lengthGap between hood and secondary latch
More than 5.0 (0.197)mm (in)
Bumper rubber adjustment
NOTE
- Adjust so that hood is aligned with fender. At that time deflection is approx. 2 mm (0.08 in).
[Bumper rubber free height is approx. 13 mm (0.51 in)]

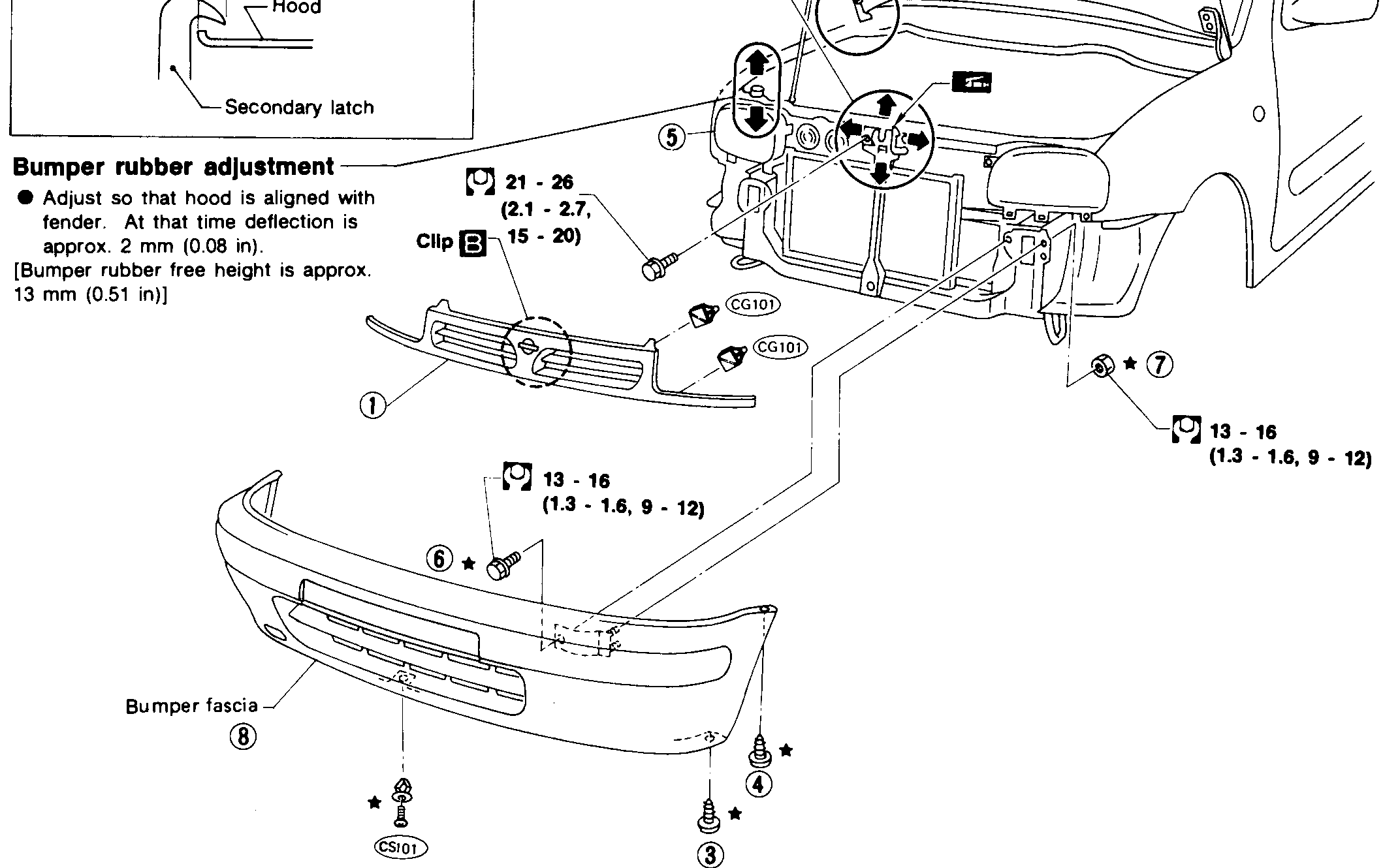

Parts Diagram
| Specification | Value |
|---|---|
| Hood adjustment / striker bolt (5)Tightening torque | 21 - 26N·m |
| Bumper stay bolt (6) / nut (7)Tightening torque | 13 - 16N·m |
Hood adjustment / striker bolt (5)Tightening torque
21 - 26N·m
Bumper stay bolt (6) / nut (7)Tightening torque
13 - 16N·m
