DIAGNOSTIC PROCEDURE 5 (without CONSULT)
Final checking after repairing SRS by using "AIR BAG" warning lamp — Diagnosis mode and User mode
Final check after repairing SRS (without CONSULT)
- 1After repairing SRS connect both battery cables.

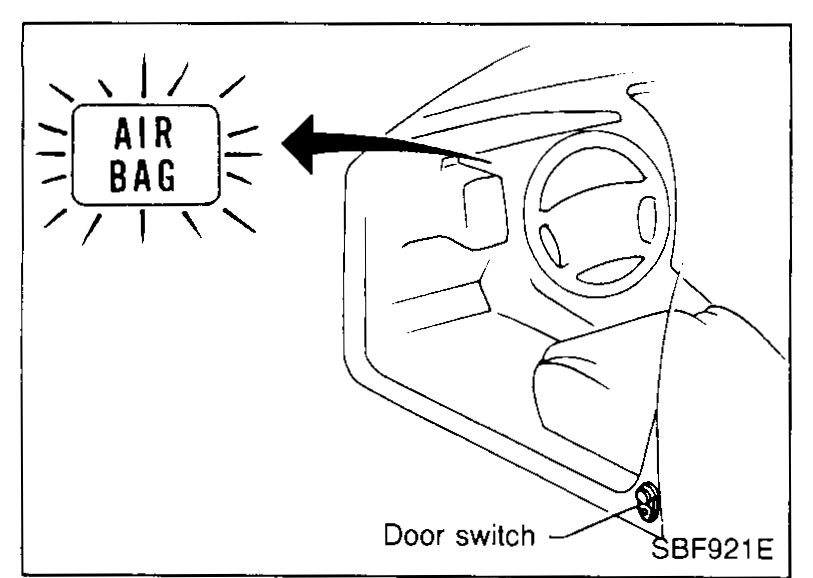

SBF921E - 2Open driver's door.
- 3Turn ignition switch from "OFF" to "ON".
- 4"AIR BAG" warning lamp operates in Diagnosis mode as follows:
SRS333
AIR BAG warning lamp flash pattern — Diagnosis mode and User mode
1

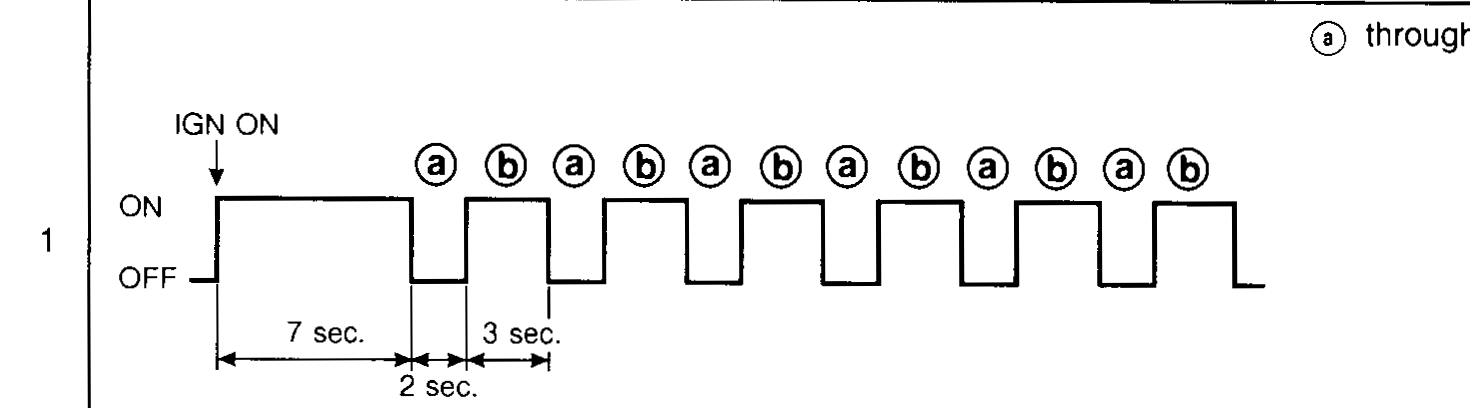

"AIR BAG" warning lamp flash pattern — Diagnosis modeIGN ON: OFF 7 sec, ON 3 sec, 2-sec marker. (a) through (b) repeated. (SRS333)
Description(a) through (b) are repeated.
SRS conditionNo malfunction is detected or repair is completed. No further action is necessary.
2
"AIR BAG" warning lamp flash pattern — Diagnosis modeIGN ON: OFF 7 sec, ON 3 sec, 2-sec/2-sec marker. (a) through (d) repeated. (SRS341)
Description(a) through (d) are repeated. (b) — Driver and passenger air bag marker (for identifying driver and/or passenger air bag malfunctioning). (d) — Indicates malfunctioning part. The number of flashes varies with malfunctioning part (0.5 sec ON and 0.5 sec OFF is counted as one flash).
SRS conditionThe system is malfunctioning and needs to be repaired.
3
"AIR BAG" warning lamp flash pattern — Diagnosis modeIGN ON: OFF 7 sec, ON with 2 sec / 1.5 sec / 0.5 sec / 1.5 sec marker. (a) through (f) repeated. (SRS342-A)
Description(a) through (f) are repeated. (b), (c), (d) — Side air bag marker (for identifying side air bag malfunctioning). (f) — Indicates malfunctioning part. The number of flashes varies with malfunctioning part (0.5 sec ON and 0.5 sec OFF is counted as one flash).
SRS conditionThe system is malfunctioning and needs to be repaired.
NOTE
When diagnosis sensor unit is replaced with new one, "AIR BAG" warning lamp will operate in User mode. Checking "AIR BAG" warning lamp operation in Diagnosis mode is not required. Go to step 6.
