FRONT DISC BRAKE

BR-7013prose procedure

Pad Replacement (Cont'd)

1
Secure rotor to wheel hub with at least two nuts (M12 x 1.25).
2

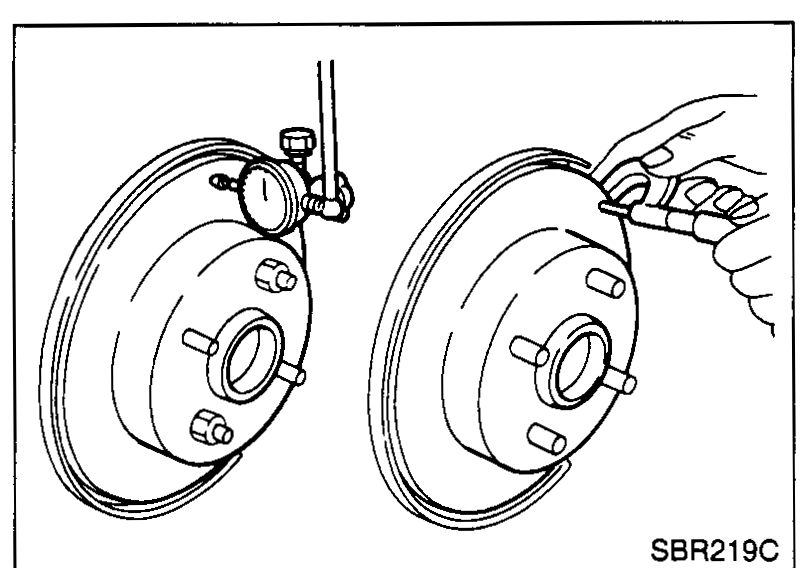

Check runout using a dial indicator.
Make sure that wheel bearing axial end play is within the specifications before measuring. Refer to FA section ("Front Wheel Bearing", "CHECK AND ADJUSTMENT").
SBR219C
3
If the runout is out of specification, find minimum runout position as follows: a. Remove nuts and rotor from wheel hub. b. Shift the rotor one hole and secure rotor to wheel hub with nuts. c. Measure runout. d. Repeat steps a. to c. so that minimum runout position can be found.
4
If the runout is still out of specification, turn rotor with on-car brake lathe ("MAD, DL-8700", "AMMCO 700 and 705" or equivalent).

Specification	Value
Maximum runout	0.07mm (0.0028 in)

Maximum runout

0.07mm (0.0028 in)

Specification	Value
Thickness variation (at least 8 positions) - MaximumAt least 8 positions	0.01mm (0.0004 in)

Thickness variation (at least 8 positions) - MaximumAt least 8 positions

0.01mm (0.0004 in)

If thickness variation exceeds the specification, turn rotor with on-car brake lathe.

Model	Repair limit
CL18SG	10 mm (0.394 in)
CL18VG	16 mm (0.630 in)

CL18SG

Repair limit10 mm (0.394 in)

CL18VG

Repair limit16 mm (0.630 in)
