REAR DISC BRAKE — Assembly

BR-25prose procedure

Cup direction is orientation-critical; key plate is keyed to the cylinder via convex/concave alignment.

Continued from BR-24

Assembly

  1. 1

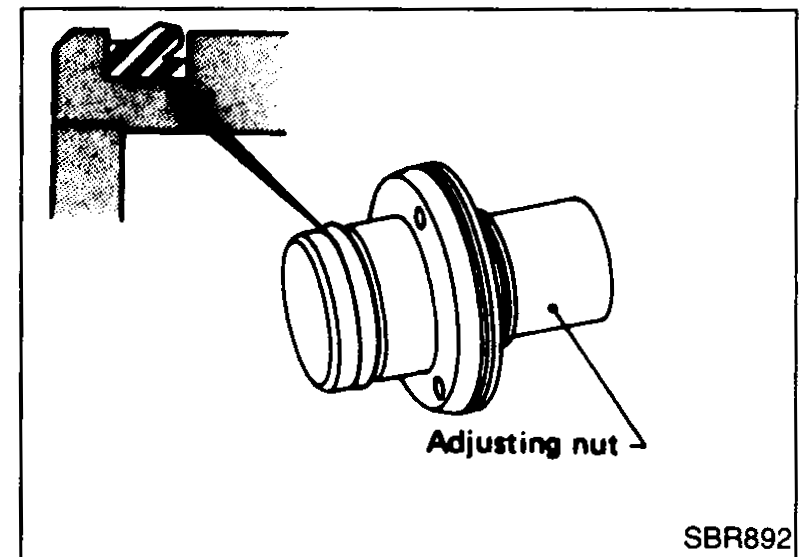

    Install cup in the specified direction.
    Step 1: cup installed on adjusting nut in the specified direction (cup lip orientation called out by arrow on cylinder wall).
    SBR892
  2. 2

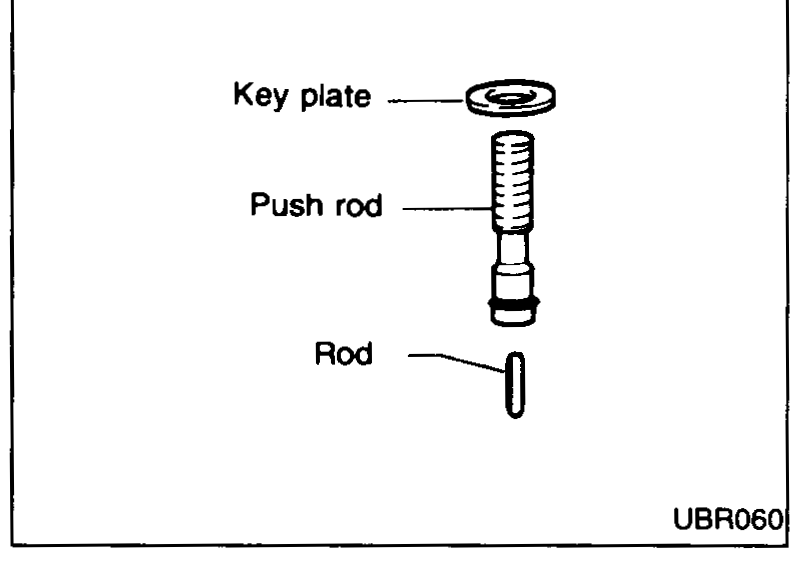

    Fit push rod into square hole in key plate. Also match convex portion of key plate with concave portion of cylinder.
    Step 2: key plate fitted into cylinder body — convex portion of key plate aligns with concave portion of cylinder; push rod's square section seats into the square hole in the key plate.
    SBR893
  3. 3
    Install seat, spring, spring cover and ring B with suitable press and drift.
    Step 3: install seat → spring → spring cover → Ring B into cylinder using a suitable press and drift tool.
    SBR879
  4. 4
    Install cup, adjuster, bearing, spacers, washers and ring A with a suitable tool.
    Step 4: install cup → adjuster → bearing → spacers → wave washer → Ring A onto piston using a suitable tool.
    SBR100B
