TROUBLE DIAGNOSES — Trouble diagnosis (using CONSULT) — CONSULT Inspection Procedure

BR-54prose procedure

Source prints '19 ml/hr' — typo for '19 mph (miles per hour)'. Captured verbatim.

Trouble diagnosis (using CONSULT)

CONSULT INSPECTION PROCEDURE

  1. 1
    Turn off ignition switch.
  2. 2

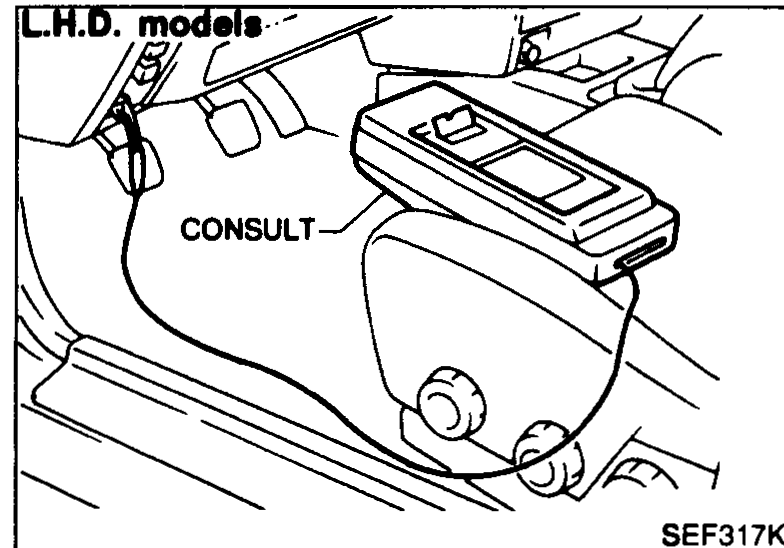

    Connect "CONSULT" to diagnostic connector. (Diagnostic connector is located behind the fuse box cover.)
    LHD CONSULT diagnostic-connector location: behind the fuse-box cover in the driver-side foot well; CONSULT tool plugged in.
    SEF317K
  3. 3
    Drive the vehicle at speed above 30 km/h (19 ml/hr) for longer than one minute.
  4. 4
    Stop the vehicle. Switch off the engine. Turn ignition switch to 'ON'.
  5. 5
    Fully depress the brake pedal ONCE ONLY and release.
  6. 6
    Touch "START".
    CONSULT splash screen: 'NISSAN CONSULT' with START and SUB MODE buttons.
    SEF392I
  7. 7

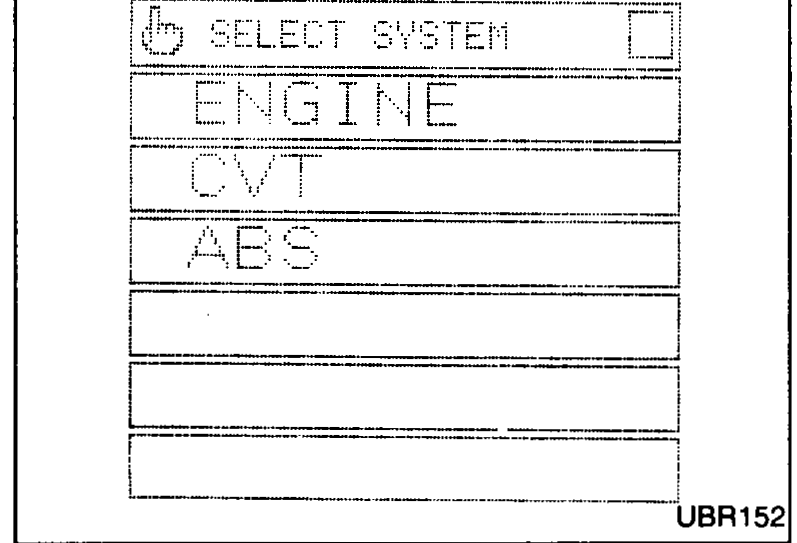

    Touch "ABS".
    CONSULT SELECT SYSTEM screen with ENGINE / CVT / ABS options visible.
    UBR152
  8. 8

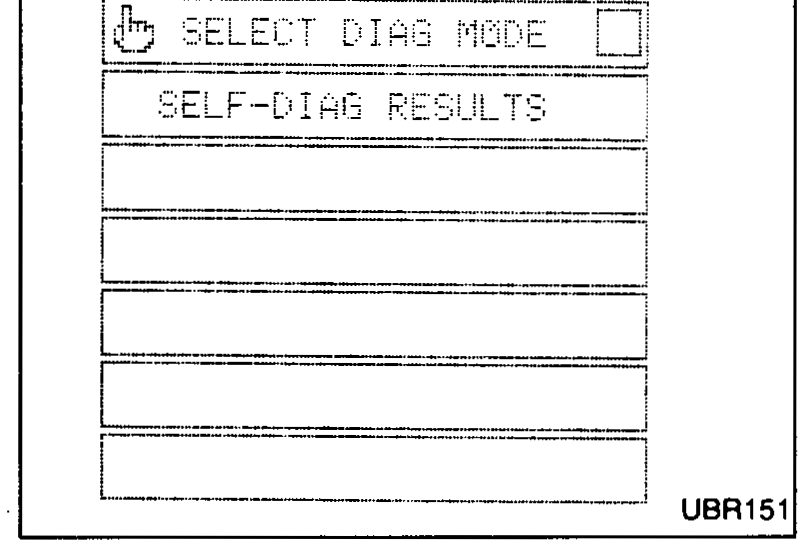

    Touch "SELF-DIAG RESULTS".
    CONSULT SELECT DIAG MODE screen showing 'SELF-DIAG RESULTS' option.
    UBR151
