BRAKE PEDAL AND BRACKET
BR-7006prose procedureAdjustment
Check brake pedal free height from metal panel. Adjust if necessary.
| Specification | Value |
|---|---|
| H: Free heightRefer to SDS, BR-7051 | |
| C1, C2: Clearance between pedal stopper and threaded end of stop lamp switch and brake switch | 0.75 - 2.00mm (0.0295 - 0.0787 in) |
| D: Depressed heightRefer to SDS, BR-7051 | |
| A: Pedal free play at pedal pad | 1.0 - 3.0mm (0.039 - 0.118 in) |
H: Free heightRefer to SDS, BR-7051
C1, C2: Clearance between pedal stopper and threaded end of stop lamp switch and brake switch
0.75 - 2.00mm (0.0295 - 0.0787 in)
D: Depressed heightRefer to SDS, BR-7051
A: Pedal free play at pedal pad
1.0 - 3.0mm (0.039 - 0.118 in)

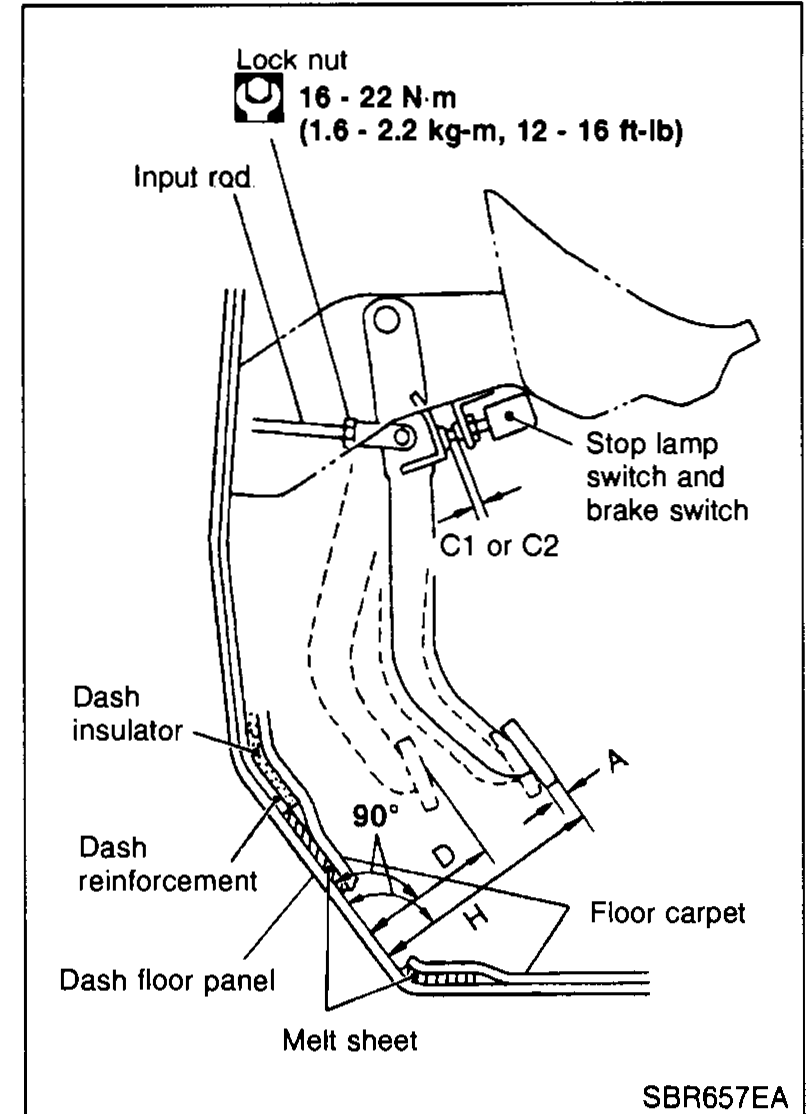

Brake Pedal Adjustment
- 1Loosen lock nut and adjust pedal free height by turning brake booster input rod. Then tighten lock nut.
SBR657EA - 2Check pedal free play. Make sure that stop lamps go off when pedal is released.
- 3Check brake pedal's depressed height while engine is running. If lower than specification, check brake system for leaks, accumulation of air or any damage to components (master cylinder, wheel cylinder, etc.); then make necessary repairs.
