PARKING BRAKE CONTROL — Inspection / Adjustment

BR-32prose procedure

Disc-brake variant has an extra release check — the caliper-side lever must return to its stopper bolt when the hand-brake is fully released; if it doesn't the cable is too tight.

Continued from BR-31

Inspection

  1. 1
    Check control lever for wear or other damage. Replace if necessary.
  2. 2
    Check wires for discontinuity or deterioration. Replace if necessary.
  3. 3
    Check warning lamp and switch. Replace if necessary.
  4. 4
    Check components at each connection point and, if deformed or damaged, replace.

Adjustment

  1. 1
    Loosen parking brake cable.
  2. 2
    Depress brake pedal fully more than 5 times.
  3. 3
    Adjust control lever by turning adjusting nut on front cable.
    Step 3 detail: hand-brake lever base showing the adjusting nut on the front cable.
    UBR065
  4. 4
    Pull control lever with specified amount of force. Check lever stroke and ensure smooth operation.
    1. Specified pull-force: 196 N (20 kg, 44 lb).
    2. Number of notches: 6 - 8.

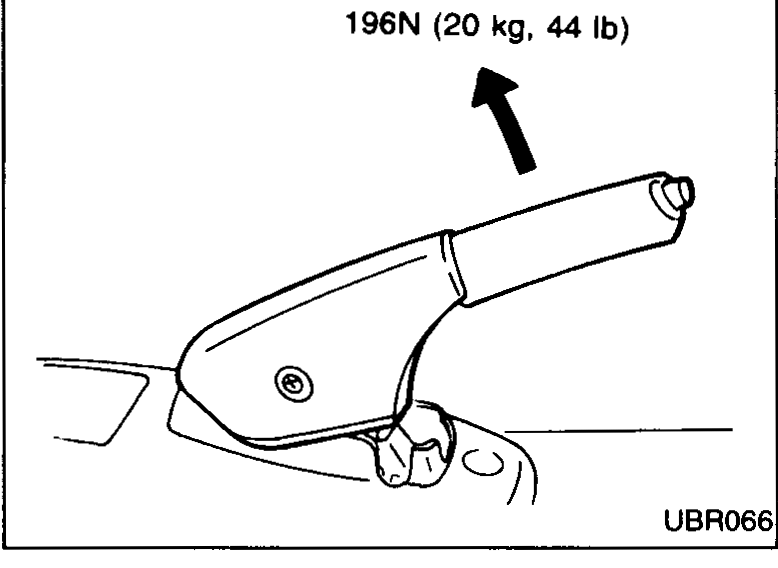

    Step 4: 196 N (20 kg, 44 lb) force applied vertically to the handle tip; count notches.
    UBR066
  5. 5
    Bend parking brake warning lamp switchplate so that brake warning lamp comes on before first notch on ratchet, and goes out when lever is fully released.
Parking-brake lever pull-force (adjustment check)
196N (20 kg, 44 lb)
Number of notches at 196 N
6 - 8clicks
