MASTER CYLINDER

BR-10parts diagram

Removal

  1. 1
    Remove air cleaner (LHD only).
  2. 2
    Disconnect low fluid warning light harness.
  3. 3
    Connect a vinyl tube to air bleeder valve.
  4. 4
    Drain brake fluid from each air bleeder valve, depressing brake pedal to empty fluid from master cylinder.
  5. 5
    Remove brake pipe flare nuts from master cylinder.
  6. 6
    Remove master cylinder mounting nuts.

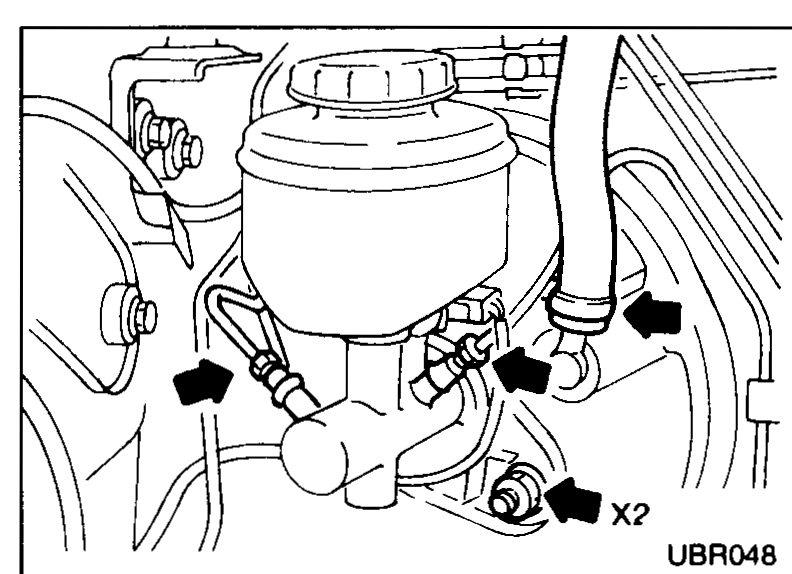

    Engine bay view showing the master cylinder location with arrows pointing to the X2 mounting nuts to remove.
    UBR048
  7. 7
    Reposition fuel filter bracket (LHD only).
  8. 8
    When removing master cylinder from booster, block hole into booster to prevent ingress of dirt, etc.

Disassembly

  1. 1

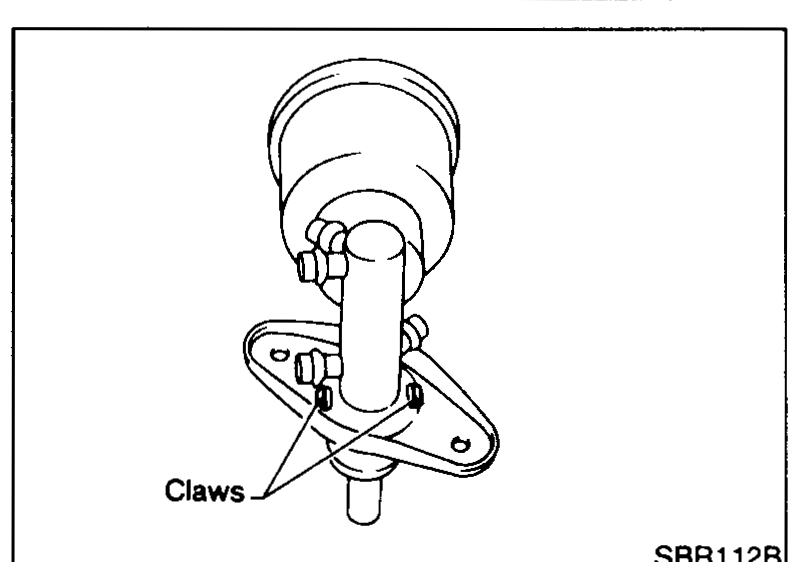

    Bend claws of stopper cap inward.
    Detail showing how to bend claws of stopper cap inward.
    SBR112B
Master cylinder mounting
108 - 167N·m
