CONTROL VALVE
BR-7prose procedureLoad Sensing Valve
INSPECTION

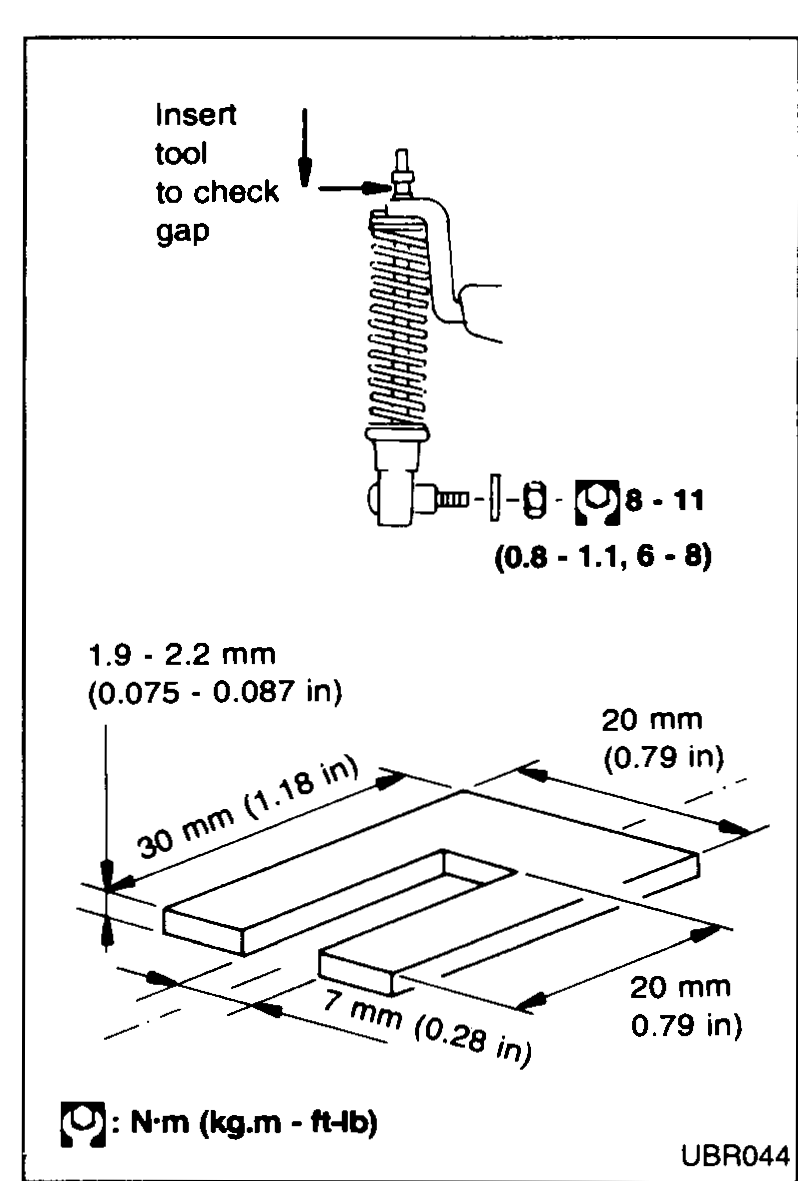

- 1Check gap as shown under unladen* conditions, using the spacer supplied. If a spacer is not available, manufacture one to the dimensions shown in the illustration.
- note*: Half a tank of fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
UBR044
NOTE
Adjust spring length using slotted mounting hole in upper link, if it is out of specification.
CAUTION
The valve must be adjusted at the weight condition indicated, with the suspension settled, i.e. rolled back and forwards.
| Specification | Value |
|---|---|
| Spring gap (unladen) | 1.9 - 2.2mm (0.075 - 0.087 in) |
| ≈78 - 108N·m |
Spring gap (unladen)
1.9 - 2.2mm (0.075 - 0.087 in)
78 - 108N·m
