STEERING WHEEL AND STEERING COLUMN
ST-9parts diagram| Specification | Value |
|---|---|
| Steering wheel nutTightening torque | 29 - 39N·m |
| Steering column upper fastenersTightening torque | 14.7 - 18.6N·m |
| Steering column lower fastenersTightening torque | 14.7 - 18.6N·m |
| Boot / small bracket fastenersTightening torque | 3.9 - 4.9N·m |
Steering wheel nutTightening torque
29 - 39N·m
Steering column upper fastenersTightening torque
14.7 - 18.6N·m
Steering column lower fastenersTightening torque
14.7 - 18.6N·m
Boot / small bracket fastenersTightening torque
3.9 - 4.9N·m
Steering Wheel
REMOVAL
Steering Wheel Removal
- 1Pull out horn pad.
SST110B - 2Remove horn connections.
- 3Remove steering wheel nut.
- 4Disconnect horn earth terminal from top face of steering wheel.

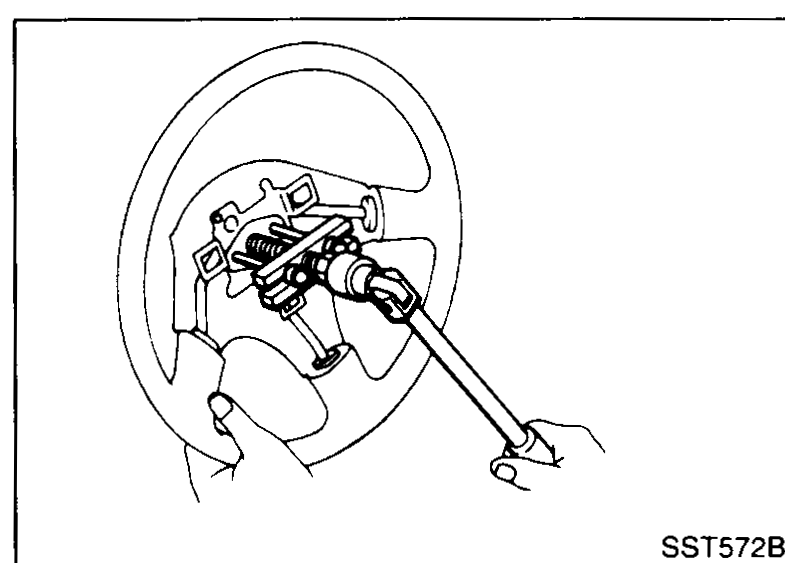

- 5Remove steering wheel with puller.
SST572B
