MANUAL STEERING GEAR AND LINKAGE

ST-20prose procedure

Short-track rack value 60.6 mm vs standard-track 64.6 mm.

Continued from ST-19

Assembly

Manual Steering Gear Assembly

  1. 1
    Tighten outer socket lock nut.
    Tie-rod length "L": 183.6 mm (7.23 in)

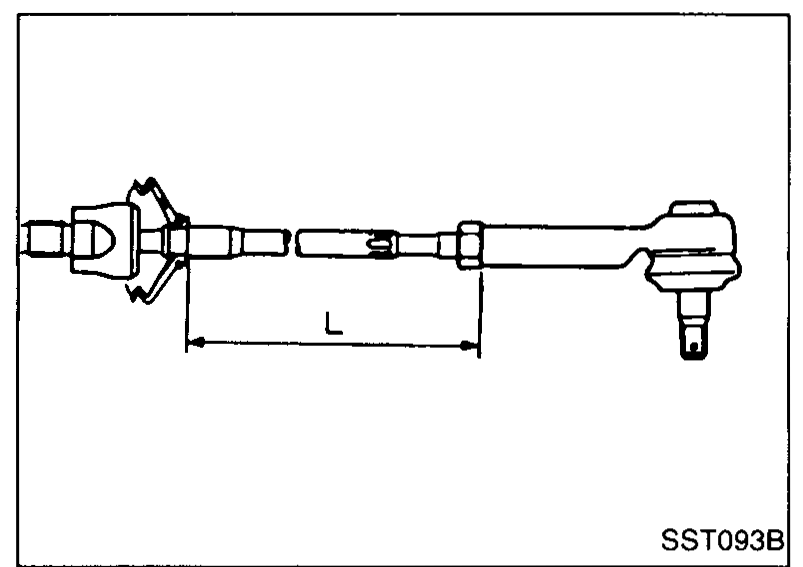

    Tie-rod assembly with horizontal length dimension 'L' shown from inner socket to outer-socket lock nut.
    SST093B
  2. 2
    Measure rack stroke.
    Rack stroke "L": Short track = 60.6 mm (2.386 in); Standard track = 64.6 mm (2.543 in)

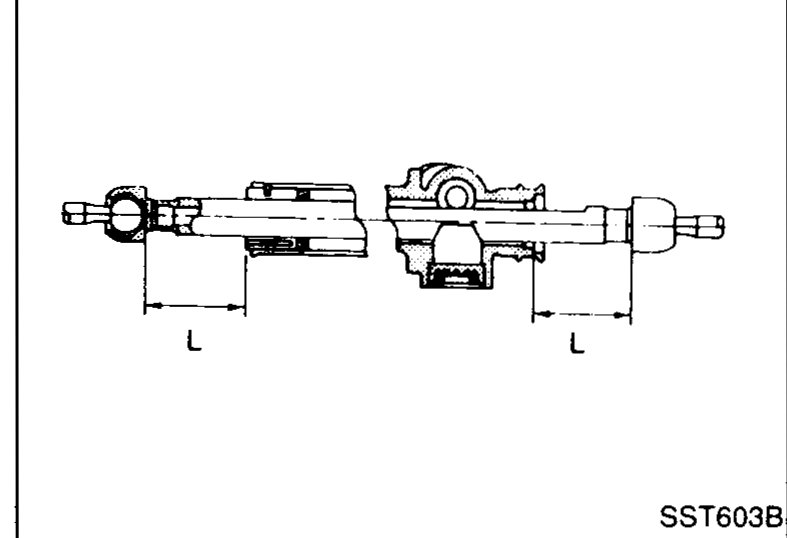

    Steering rack with left and right rack-stroke dimensions 'L' shown on either side of the gear housing.
    SST603B
  3. 3
    Before installing boot, coat the contact surfaces between boot and tie-rod with grease.
    Detail of grease being applied to the contact surfaces between dust boot and tie-rod prior to installation.
    SST589B
