ON-VEHICLE INSPECTION

ST-5prose procedure
Continued from ST-4

Steering Wheel (Cont'd)

Front Wheel Turning Angle

  1. 1
    Rotate steering wheel all the way right and left; measure turning angle.
    Top-down schematic of the two front wheels turned to one side. Each wheel shows two reference angles A and B with the Front direction indicated by an arrow between them. Legend: A: Inner wheel, B: Outer wheel.
    UST012
  2. 2
    If it is not within specification, check rack stroke.

Front Wheel Turning Angle specifications

Rack stroke mm (in)
155/70 R1364.6 (2.543)
175/60 R1360.6 (2.386)
Inner Wheel (Unladen)
155/70 R1337° - 41°
175/60 R1334° - 38°
Outer Wheel (Unladen)
155/70 R1331° - 35°
175/60 R1329° - 33°

Checking Gear Housing Movement

  1. 1
    Check the movement of steering gear housing during stationary steering on a dry paved surface. Apply a force of 49 N (5 kg, 11 lb) to steering wheel to check the gear housing movement. Turn off ignition key while checking.
    Movement of gear housing: ±2 mm (±0.08 in) or less

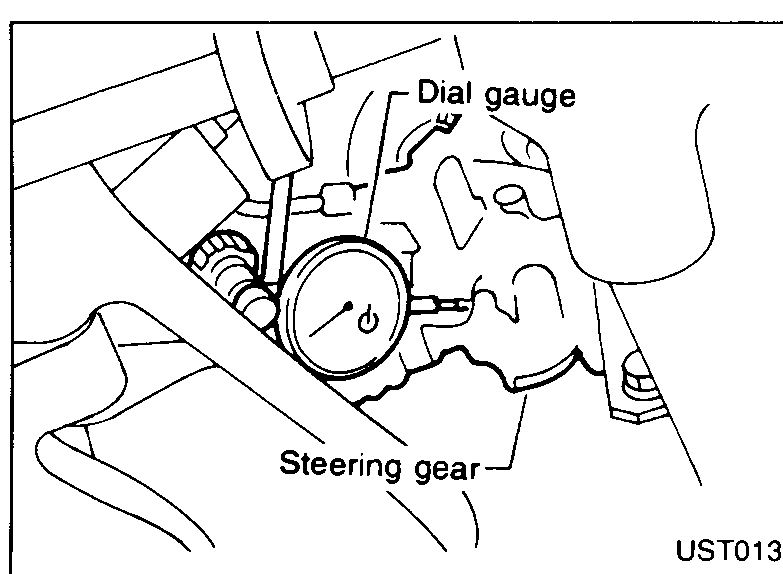

    Illustration of a dial gauge mounted on the steering gear housing. Callouts label 'Dial gauge' and 'Steering gear'. Used to check movement of the gear housing during stationary steering.
    UST013
  2. 2
    If movement exceeds the limit, replace mount insulator after confirming proper installation of gear housing clamps.
