STEERING WHEEL AND STEERING COLUMN
ST-13prose procedureTilt mechanism check only applies to vehicles with tilt system.
Disassembly and Assembly (Cont'd)
• Ensure that rounded surface of snap ring faces toward bearing when snap ring is installed.
• Install snap ring on upper shaft with a suitable tool.
Steering lock self-shear screws
- aBreak self-shear type screws with a drill or other appropriate tool.

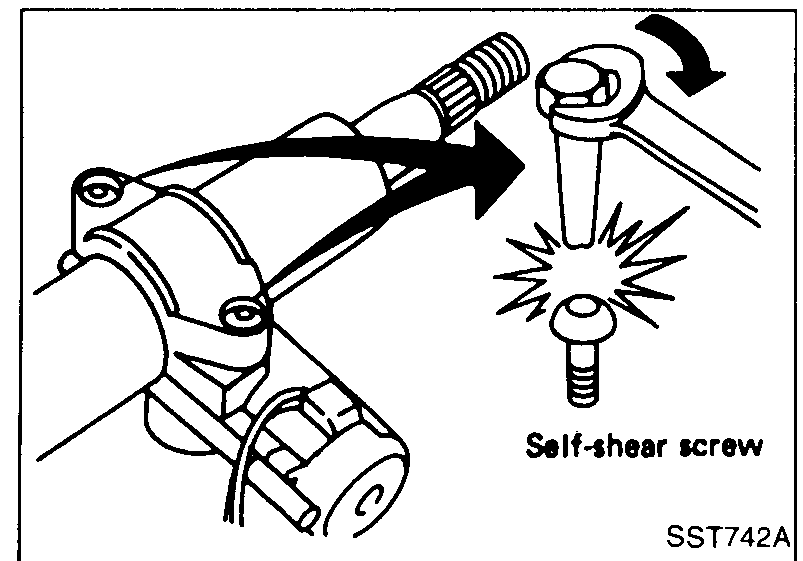

SST741A - bInstall self-shear type screws and then cut off self-shear type screw heads.
SST742A
• After installing steering column, check tilt mechanism operation (Vehicles with tilt system).
CAUTION
• Do not attempt to disassemble jacket tube assembly; if defective, replace as a unit.
• Carry out steering column assembly/disassembly in a clean dust-free environment.
