POWER STEERING RESERVOIR

ST-30prose procedure
Continued from ST-29

Removal

  1. 1
    Drain fluid from system.

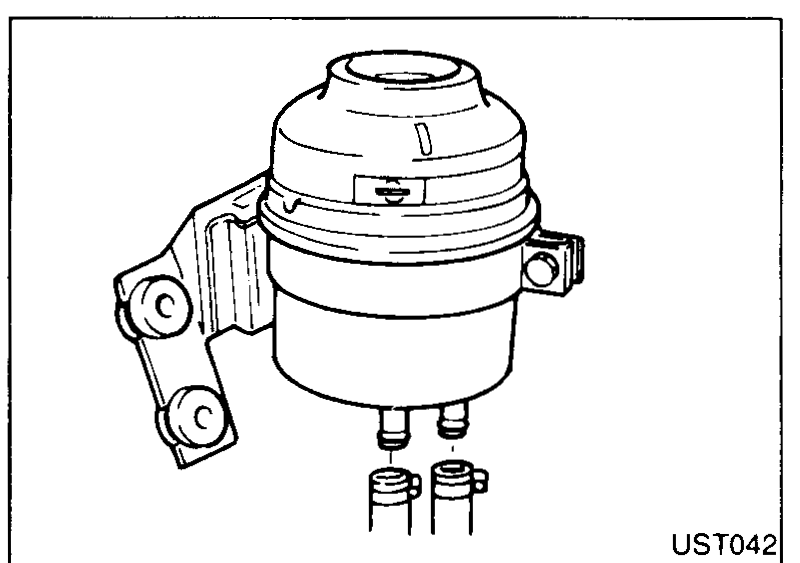

    Photograph of the power-steering reservoir off the vehicle, mounted to its bracket. Visible: cap on top of the reservoir, two stub pipes on the lower-right where feed and return hoses connect, and the body bolts on the bracket.
    UST042
  2. 2
    Slacken hose retaining clips and remove feed and return hoses from reservoir.
  3. 3
    Remove Bolts (3) securing reservoir to vehicle body.

Installation

  1. 1
    Installation is the reverse procedure to removal.

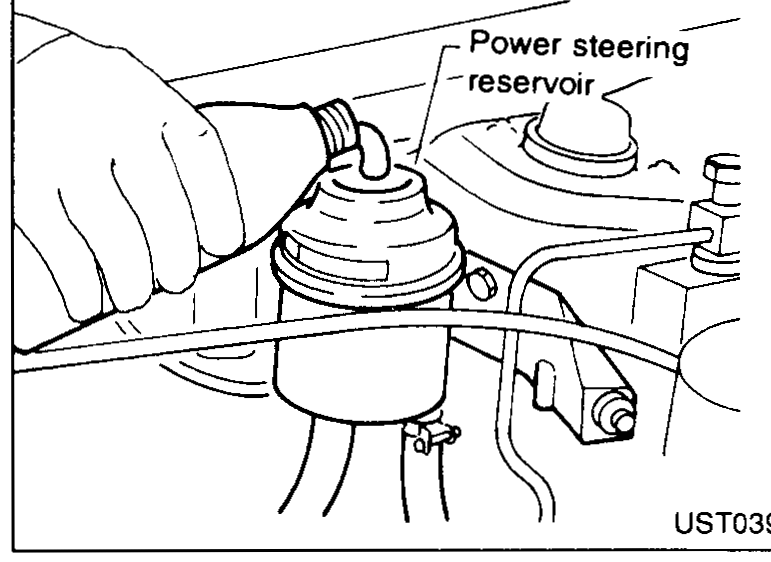

    Engine-bay photograph showing a technician's hand on the power-steering reservoir; the reservoir is labelled at the top.
    UST039
  2. 2
    Ensure hoses are fitted to reservoir correctly and do not interfere with drive belts.
  3. 3
    Refill reservoir as described in installation procedure of power steering rack and check fluid level after bleeding hydraulic system.
