MANUAL STEERING GEAR AND LINKAGE
ST-15parts diagram| Specification | Value |
|---|---|
| Tie-rod outer socket / castle nutTightening torque | 29 - 39N·m |
| Gear housing mounting bracket fasteners (upper)Tightening torque | 24 - 29N·m |
| Gear housing mounting bracket fasteners (upper, alt)Tightening torque | 24 - 29N·m |
| Gear housing clamp / large mounting boltsTightening torque | 73 - 97N·m |
Tie-rod outer socket / castle nutTightening torque
29 - 39N·m
Gear housing mounting bracket fasteners (upper)Tightening torque
24 - 29N·m
Gear housing mounting bracket fasteners (upper, alt)Tightening torque
24 - 29N·m
Gear housing clamp / large mounting boltsTightening torque
73 - 97N·m
Removal
Manual Steering Gear Removal
- 1Remove front wheels.
- 2Remove split pins and retaining nuts from tie rods.
- 3Detach tie-rod outer sockets from knuckle arms using ball joint remover.

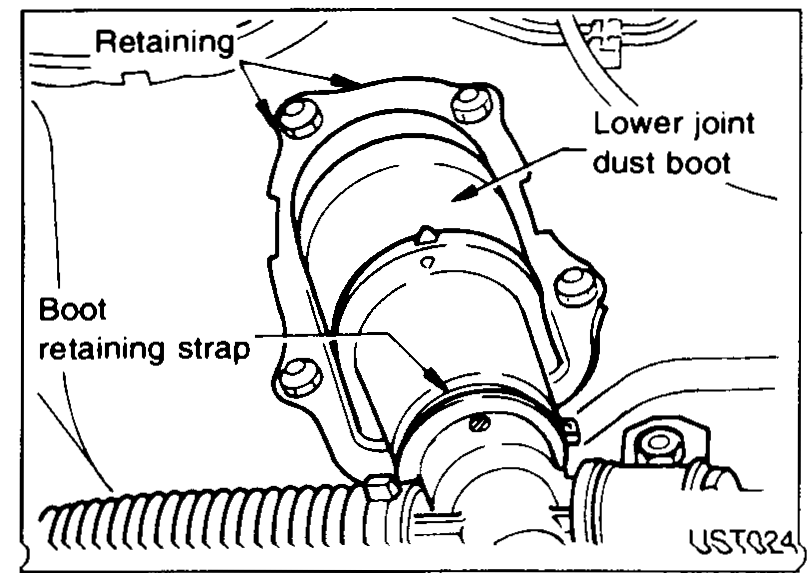

SFA372 - 4Remove nuts and retaining plates securing lower joint dust boot to body and peel back boot for access to lower joint tightening bolts.
UST024
