CHASSIS AND BODY MAINTENANCE — Changing CVT Fluid / Checking Disc Brake
MA-7014prose procedureCL18VG = front disc brake caliper variant on this model.
Changing CVT Fluid
- 1Warm up CVT fluid by driving the vehicle for 10 minutes.
- 2Drain CVT fluid from radiator cooler hose (return side) and refill with new CVT fluid at charging pipe when engine running at idle speed.

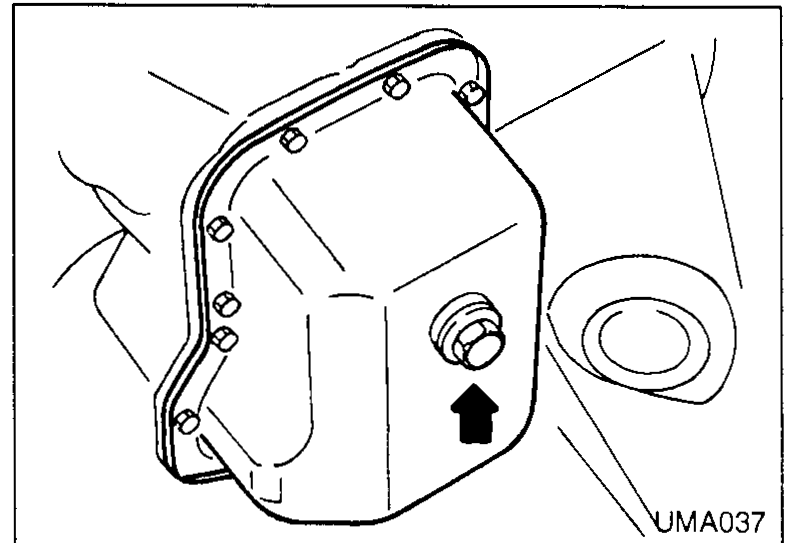

UMA037 - 3Refill until new CVT fluid comes out from radiator cooler hose (return side). About 30 to 50% extra fluid will be required for this procedure.Fluid capacity — Hyper CVT: Approx. 5.0 l
CAUTION
Use genuine NISSAN CVT fluid (NS-1) or exact equivalent.
Checking Disc Brake
Check condition of disc brake components.
ROTOR
Check condition and thickness.
| Specification | Value |
|---|---|
| CL18VG — Rotor standard thicknessStandard | 18mm (0.789 in) |
| CL18VG — Rotor minimum thicknessMinimum | 16mm (0.630 in) |
CL18VG — Rotor standard thicknessStandard
18mm (0.789 in)
CL18VG — Rotor minimum thicknessMinimum
16mm (0.630 in)
PAD
Check wear or damage.
| Specification | Value |
|---|---|
| CL18VG — Pad standard thicknessStandard | 9.5mm (0.37 in) |
| CL18VG — Pad minimum thicknessMinimum | 2.0mm (0.079 in) |
CL18VG — Pad standard thicknessStandard
9.5mm (0.37 in)
CL18VG — Pad minimum thicknessMinimum
2.0mm (0.079 in)
