CHECK AND ADJUSTMENT — Front Wheel Alignment (Cont'd) / Drive Shaft
FA-6prose procedureWheel turning angles differ by tyre size: 155/70 R13 vs 175/60 R13.
Front Wheel Alignment (Cont'd)
Toe-in adjustment (continued)

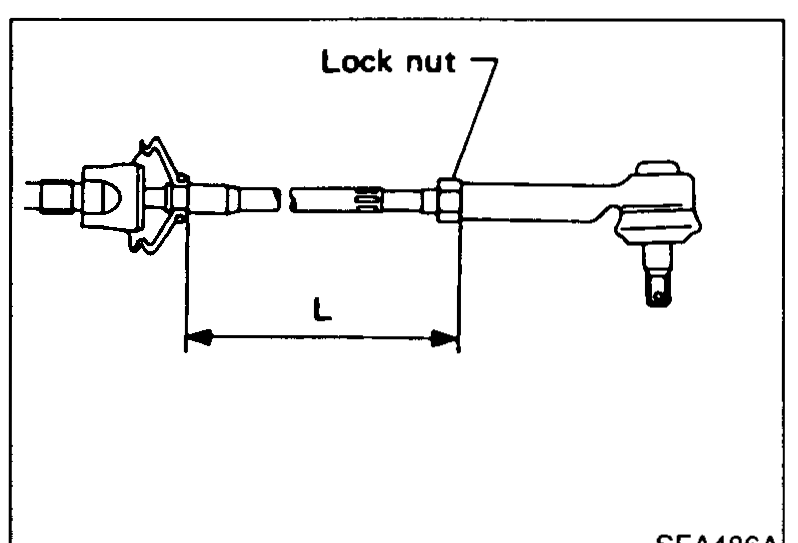

- 3(2)Adjust toe-in by screwing tie-rods in and out.Standard length "L": 129 mm
SFA486A - 3(3)Tighten lock nuts to specified torque.Lock nut tightening torque: 38 - 47 N·m (3.8 - 4.7 kg-m, 28 - 34 ft-lb)
| Specification | Value |
|---|---|
| Standard tie-rod length "L" | 129mm |
| Lock nutTightening torque | 38 - 47N·m |
Standard tie-rod length "L"
129mm
Lock nutTightening torque
38 - 47N·m
FRONT WHEEL TURNING ANGLE
Front wheel turning angle measurement

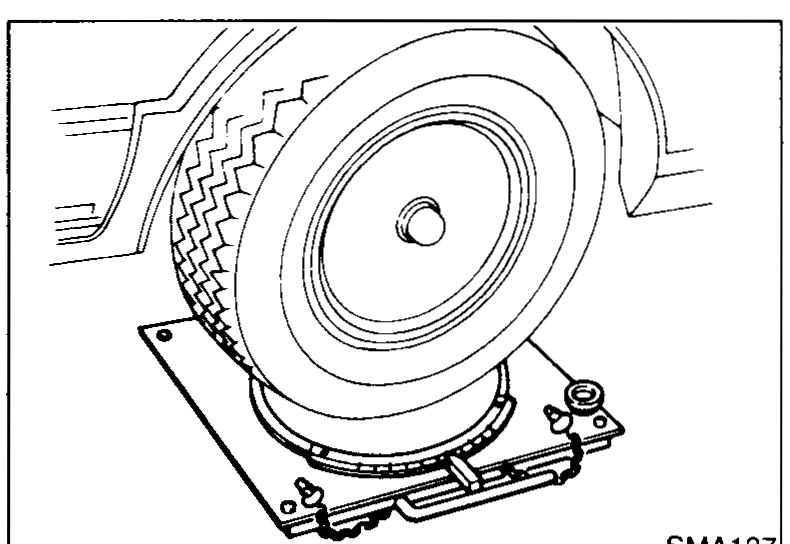

- 1Set wheels in straight-ahead position and then move vehicle forward until front wheels rest on turning radius gauge properly.
SMA127 - 2Rotate steering wheel all the way right and left; measure turning angle.Wheel turning angle (Full turn): Inside wheel / Outside wheel. 155/70 R13 Tyre: 37° - 41° / 31° - 35°. 175/60 R13 Tyre: 34° - 38° / 29° - 33°.
SFA898
| Specification | Value |
|---|---|
| Wheel turning angle (Full turn), 155/70 R13 — Inside wheel | 37° - 41° |
| Wheel turning angle (Full turn), 155/70 R13 — Outside wheel | 31° - 35° |
| Wheel turning angle (Full turn), 175/60 R13 — Inside wheel | 34° - 38° |
| Wheel turning angle (Full turn), 175/60 R13 — Outside wheel | 29° - 33° |
Wheel turning angle (Full turn), 155/70 R13 — Inside wheel
37° - 41°
Wheel turning angle (Full turn), 155/70 R13 — Outside wheel
31° - 35°
Wheel turning angle (Full turn), 175/60 R13 — Inside wheel
34° - 38°
Wheel turning angle (Full turn), 175/60 R13 — Outside wheel
29° - 33°

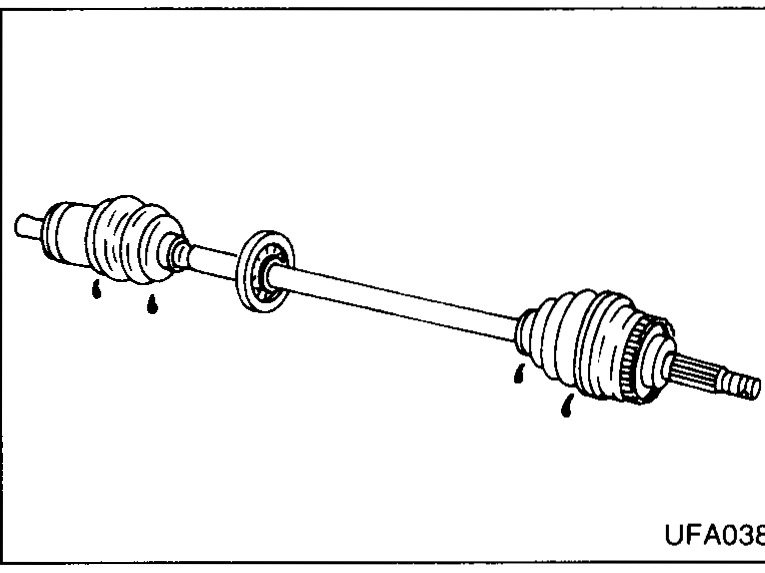

Drive Shaft
Check for grease leakage or other damage.
