FRONT SUSPENSION — Coil Spring and Shock Absorber (Removal / Disassembly)

FA-19prose procedure

Heading on page is spelled 'Dissassembly' (sic) — corrected here to 'Disassembly'.

Removal

Coil spring and shock absorber removal

  1. 1
    Remove upper mounting nuts.
    Do not remove piston rod lock nut.

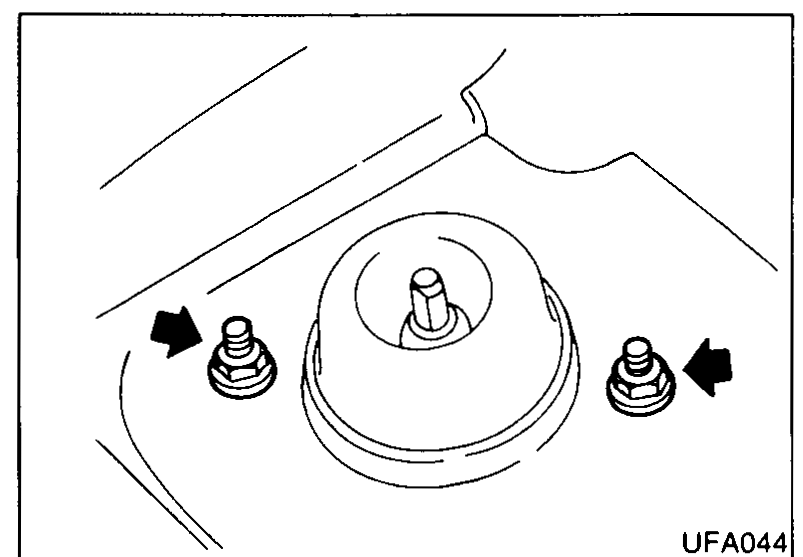

    Top view inside the front strut tower with the strut insulator visible and two arrows pointing at the upper strut mounting nuts to be removed.
    UFA044
  2. 2
    Remove shock absorber lower fixing bolts.
    Photo of the strut lower bracket meeting the knuckle with two arrows pointing at the strut lower fixing bolts to be removed.
    UFA050

Disassembly

Strut disassembly

  1. 1
    Set shock absorber on vise, then loosen piston rod lock nut.
    Do not remove piston rod lock nut.

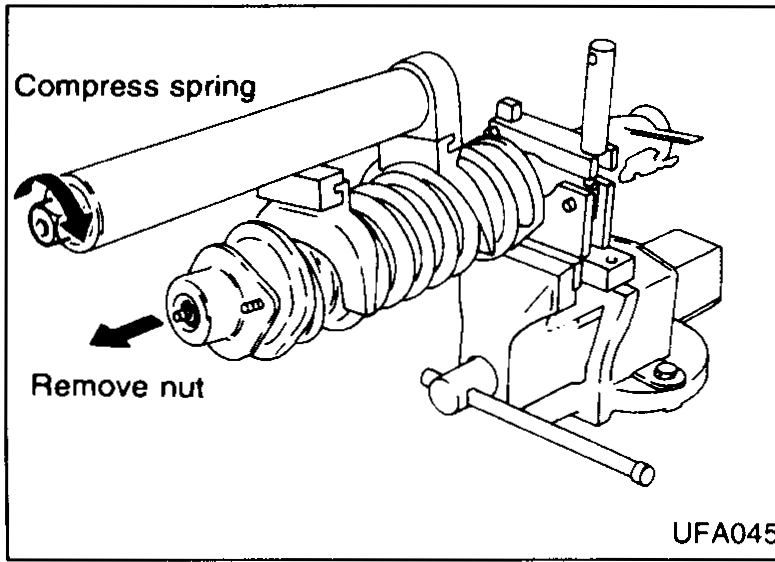

    Front strut clamped horizontally in a vise. A coil-spring compressor ('Compress spring' callout) is on the spring. A 'Remove nut' arrow points at the piston-rod lock nut at the top of the strut.
    UFA045
  2. 2
    Compress spring with Tool so that shock absorber mounting insulator can be turned by hand.
  3. 3
    Remove piston rod lock nut.
