FRONT AXLE — Drive Shaft (Assembly Cont'd)

FA-16prose procedure

Two CV-joint variants on K11: 75AC and 82AC. Grease quantity and boot length 'L' differ by type.

Continued from FA-15

Assembly (Cont'd)

WHEEL SIDE

Wheel-side joint assembly

  1. 1
    Install boot and new small boot band on drive shaft.

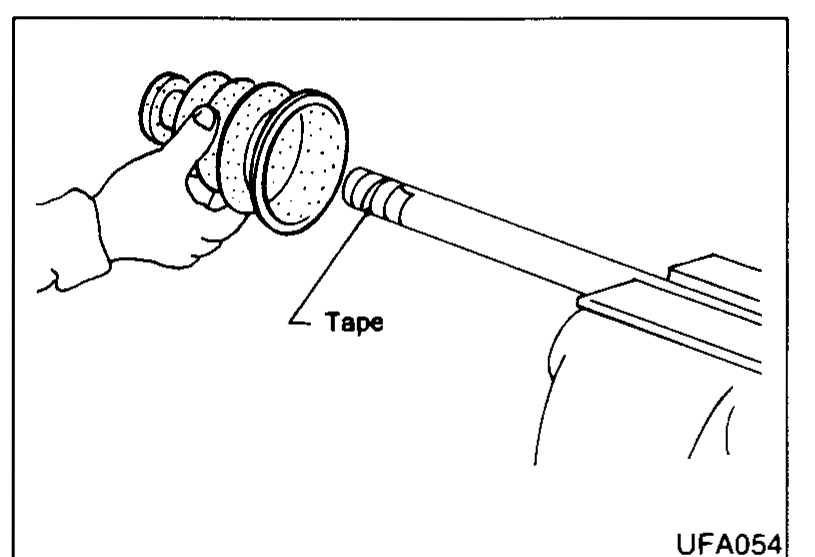

    Cover drive shaft serration with tape so as not to damage boot during installation.
    Replace the circlip and clean out all grease from the joint.
    Drive shaft end with the boot in hand and the splined/serrated section wrapped in 'Tape' before sliding the boot on, to prevent serrations damaging the boot.
    UFA054
  2. 2

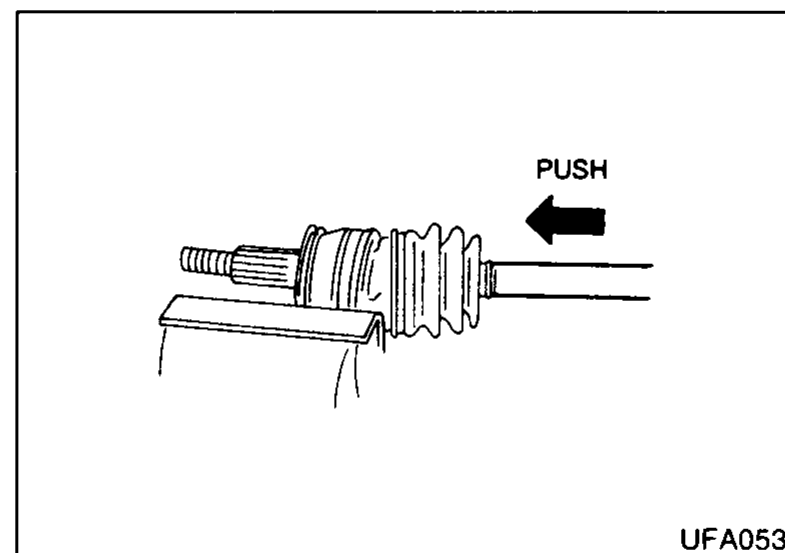

    Fit the joint housing to a vice. Align the marks on the shaft and housing, and feed the shaft into the joint. Push the shaft home until the circlip locates in the groove. Pull the shaft to ensure correct assembly.
    Take care not to damage the ABS sensor ring or the dustshield.
    Wheel-side CV joint with boot installed; arrow labelled 'PUSH' showing the shaft being pushed into the joint housing while aligning the matching marks until the circlip seats.
    UFA053
  3. 3
    Pack drive shaft with specified amount of grease.
    75AC type: Outer race = 33 mℓ (1.2 Imp fl oz); Boot = 33 mℓ (1.2 Imp fl oz).
    82AC type: Outer race = 33 mℓ (1.2 Imp fl oz); Boot = 52 mℓ (1.8 Imp fl oz).
    Cross-section of the wheel-side CV joint showing grease packed around the outer race and inside the boot, with arrows indicating fill points for the outer race and boot.
    SFA885
  4. 4

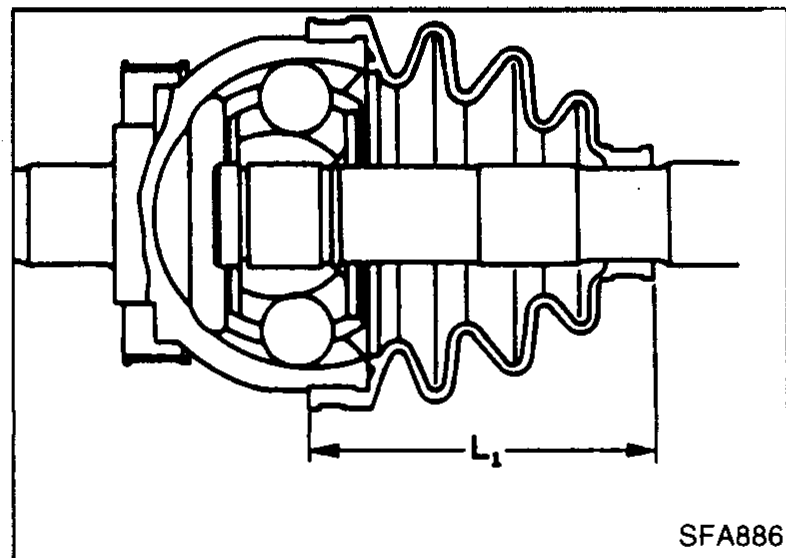

    Make sure that boot is properly installed on the drive shaft groove. Set boot so that it does not swell and deform when its length is "L".
    Length "L" — 75AC type: 85 - 87 mm (3.35 - 3.42 in); 82AC type: 89 - 91 mm (3.50 - 3.58 in).
    Cross-section of the assembled wheel-side CV joint and boot with length 'L' dimensioned along the boot/shaft to set proper boot tension before clamping.
    SFA886
  5. 5

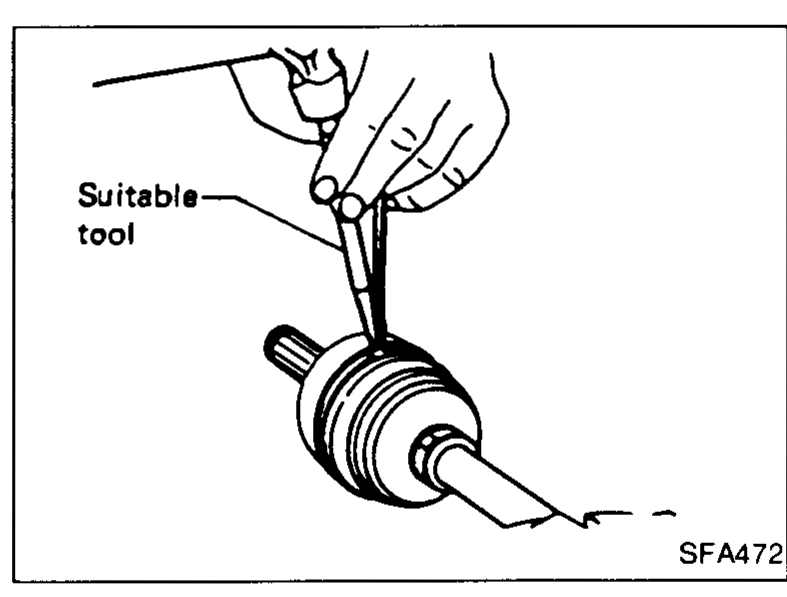

    Lock new larger and smaller boot bands securely with a suitable tool.
    Boot-band crimping tool ('Suitable tool') clamping a band on the wheel-side CV boot to lock it securely.
    SFA472
Grease — Outer race (75AC type)Specified amount
33mℓ (1.2 Imp fl oz)
Grease — Boot (75AC type)Specified amount
33mℓ (1.2 Imp fl oz)
Grease — Outer race (82AC type)Specified amount
33mℓ (1.2 Imp fl oz)
Grease — Boot (82AC type)Specified amount
52mℓ (1.8 Imp fl oz)
Boot length "L" — 75AC type
85 - 87mm (3.35 - 3.42 in)
Boot length "L" — 82AC type
89 - 91mm (3.50 - 3.58 in)
