ENGINE COOLING SYSTEM - Water Pump (VJZ)

LC-5008prose procedure

VJZ variant — water pump is driven by the timing belt and sealed with an O-ring rather than liquid gasket.

Continued from LC-5007

Water Pump

REMOVAL AND INSTALLATION

Water Pump Removal and Installation

  1. 1
    Remove radiator lower hose from radiator and drain engine coolant.

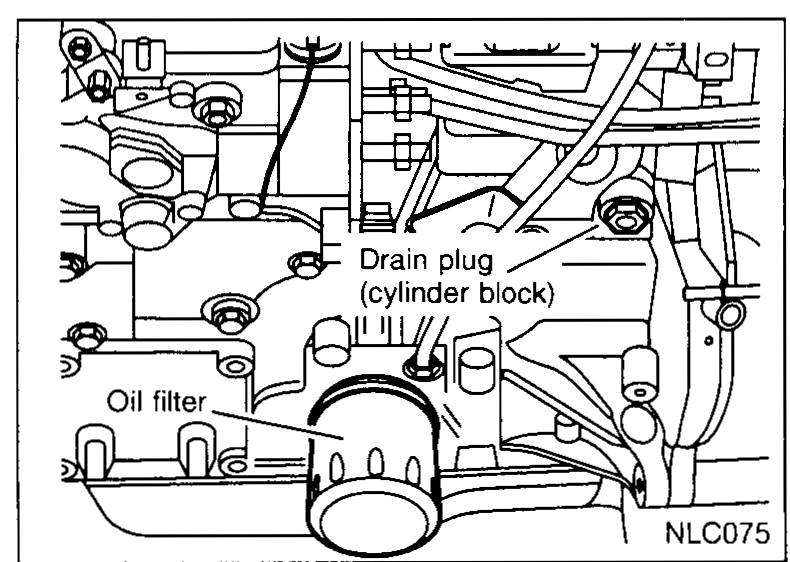

    Front of engine showing oil filter on the side, with the drain plug at the cylinder block to drain coolant.
    NLC075
  2. 2
    Drain engine coolant from cylinder block.
  3. 3
    Remove timing belt covers and timing belt, refer to EM section ("TIMING BELT", "Removal", EM-5012).
    Timing belt area with the water pump exposed after timing belt removal.
    NLC076
  4. 4
    Remove water pump.

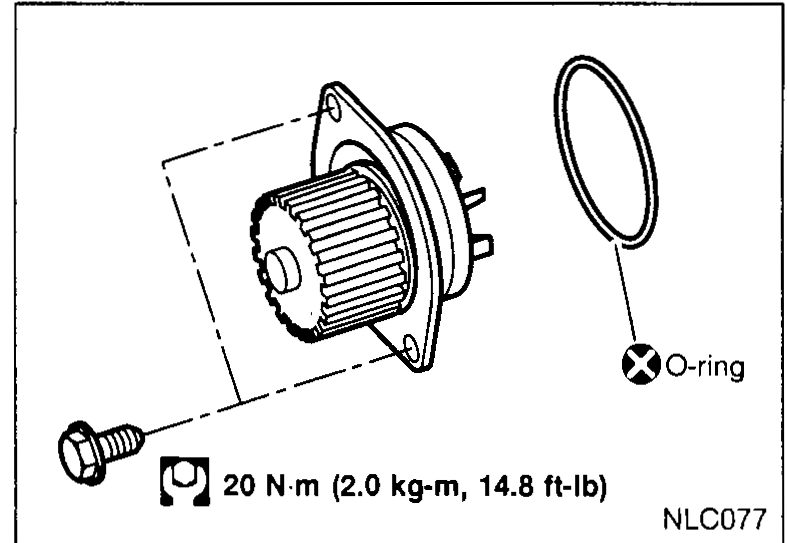

    Exploded view of the water pump with O-ring and a single mounting bolt; tightening torque 20 N·m (2.0 kg-m, 14.8 ft-lb).
    NLC077
Water pump mounting boltTightening torque
20N·m

INSPECTION

Water Pump Inspection

  1. 1
    Check body assembly for rust or corrosion.

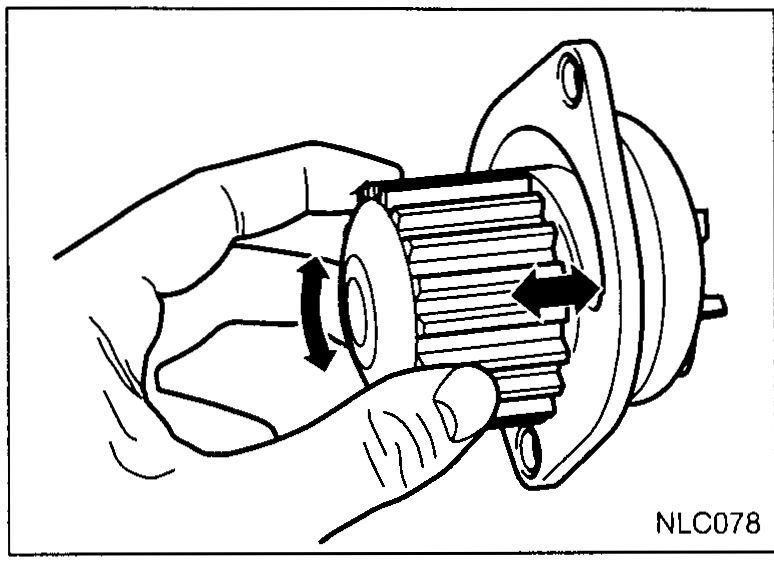

    Hand inspecting the water pump impeller / vane, rotating it to check for rust and excessive end play.
    NLC078
  2. 2
    Check for rough operation due to excessive end play.
