HOW TO USE THIS MANUAL
GI-5prose procedureHow to use this manual
- 1A QUICK REFERENCE INDEX, a black tab (e.g. shown) is provided on the first page. You can quickly find the first page of each section by mating it to the section's black tab.
- 2THE CONTENTS are listed on the first page of each section.
- 3THE TITLE is indicated on the upper portion of each page and shows the part or system.
- 4THE PAGE NUMBER of each section consists of two letters which designate the particular section and a number (e.g. "BR-5").
- 5THE LARGE ILLUSTRATIONS are exploded views (See below.) and contain tightening torques, lubrication points and other information necessary to perform repairs. The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.
SBR364A - 6THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, work procedures and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.
NOTE

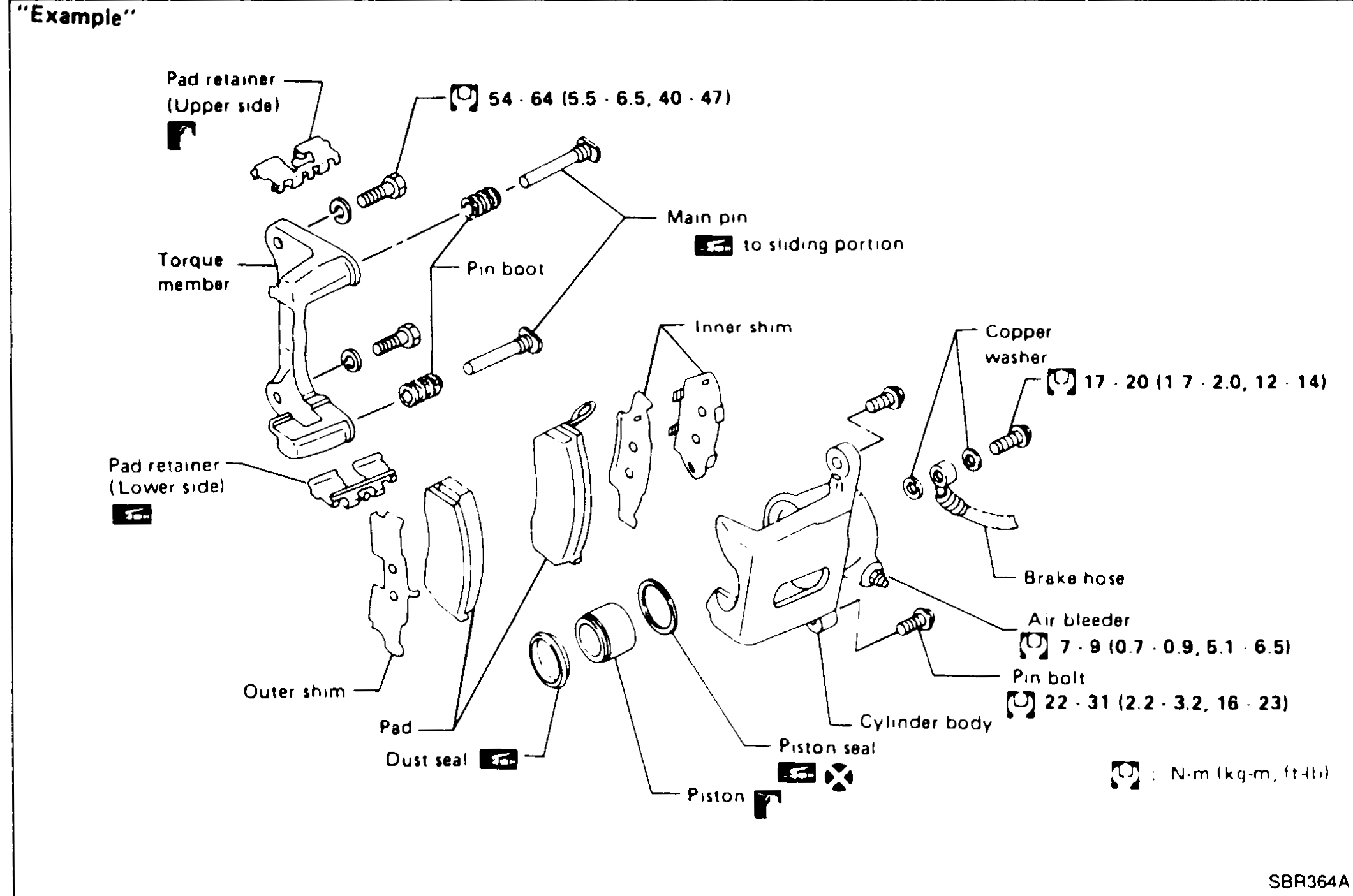

"Example" exploded view (caliper) — tightening torques shown: 54-64 N·m (5.5-6.5 kg-m, 40-47 ft-lb); 17-20 N·m (1.7-2.0 kg-m, 12-14 ft-lb); 7-9 N·m (0.7-0.9 kg-m, 5.1-6.5 ft-lb); 22-31 N·m (2.2-3.2 kg-m, 16-23 ft-lb).
