LIFTING POINTS AND TOW TRUCK TOWING — Garage Jack and Safety Stand
GI-23prose procedureGarage Jack and Safety Stand
WARNING
Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the vehicle.
Place wheel chocks at the front wheels when the rear wheels are raised and place wheel chocks at the rear wheels when the front wheels are raised.
Component LocationFig. fig1

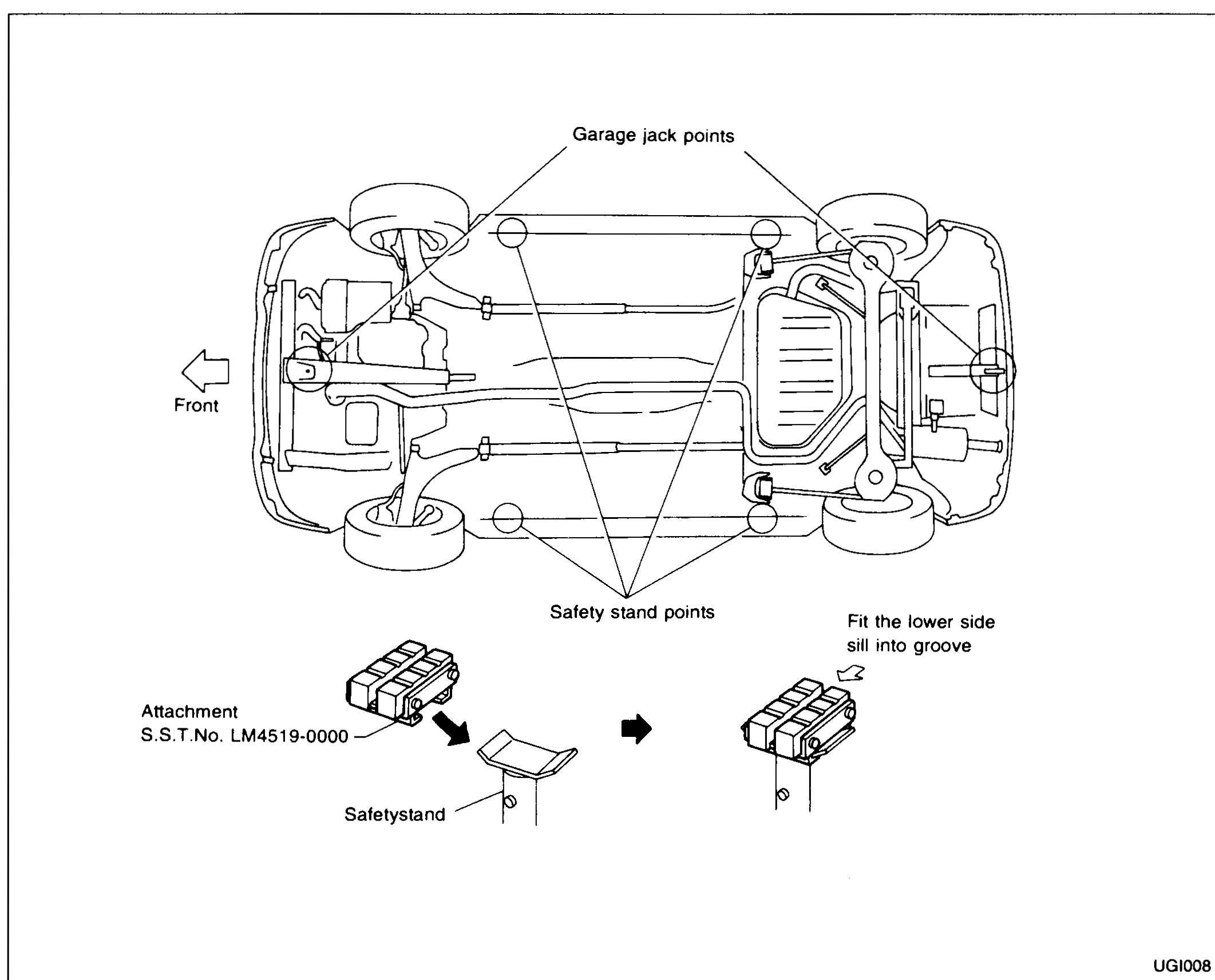

Designated garage-jack points and safety-stand points on the underside of the vehicle; safety-stand attachment LM4519-0000 fits on the safety-stand head with the lower side sill seated in its groove.
UGI008
1Garage jack points(Two locations along vehicle underbody)
2Safety stand points(Four locations near each wheel)
3Attachment (S.S.T. No. LM4519-0000)(Mounted on safety stand head)
4Safety stand(Floor-standing stand)
5Fit the lower side sill into groove(Side-sill seating direction on the attachment)
