Nissan Micra K11 silhouetteK11

LIFTING POINTS AND TOW TRUCK TOWING — Tow Truck Towing (Cont'd)

GI-26prose procedure

Illustrations are for the Super S model.

Continued from GI-25

Tow Truck Towing (Cont'd)

TOWING POINT

Always pull the cable straight out from the vehicle. Never pull on the hook at a sideways angle.

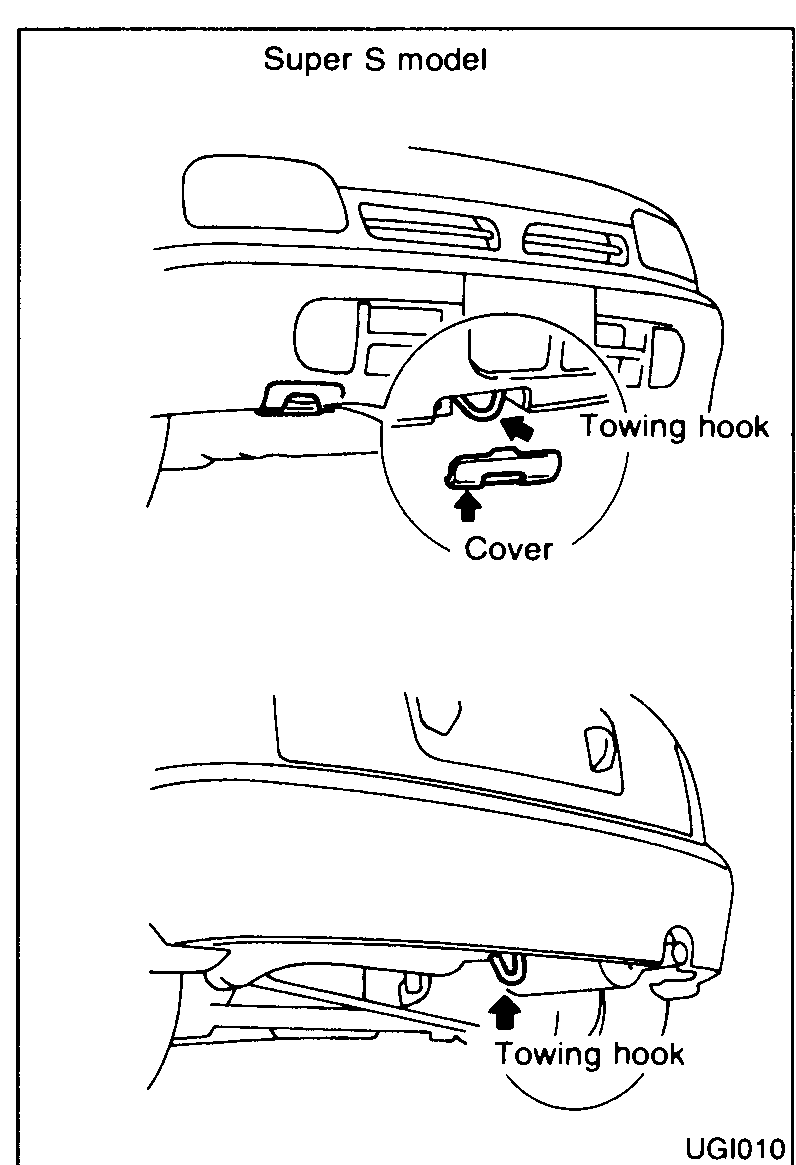

Component LocationFig. fig1

Front and rear towing hook locations on Super S model. Front towing hook is hidden behind a flip-up cover in the front bumper; rear towing hook is mounted under the rear bumper.

Two stacked detail illustrations of towing-hook locations on a Super S model. Top: front bumper area with a callout 'Towing hook' and a 'Cover' that flips up to expose it. Bottom: rear bumper area with a callout 'Towing hook' under the bumper.
UGI010
1Towing hook (front)(Behind flip-up cover in front bumper (Super S model))
2Cover(Front bumper cover concealing the towing hook)
3Towing hook (rear)(Underneath rear bumper)
