IDENTIFICATION INFORMATION — Identification Number (Cont'd)
GI-19component photoDistinguishes manual vs automatic transaxle stamping locations.
Identification Number (Cont'd)

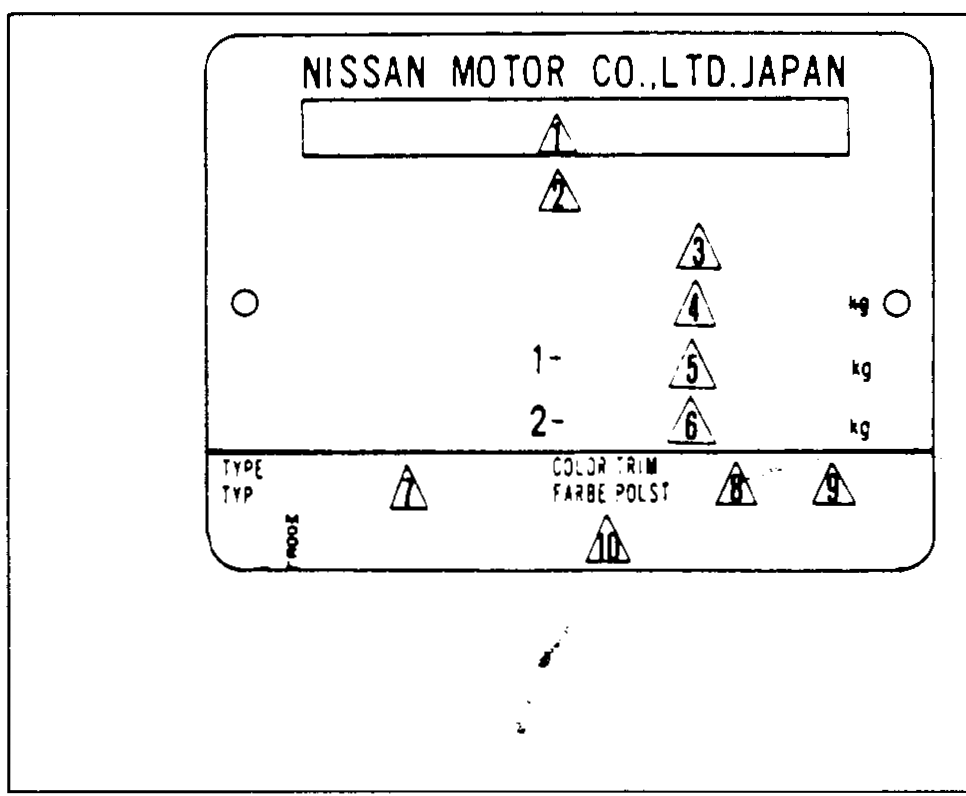

IDENTIFICATION PLATE
Component LocationFig. fig1
Vehicle identification plate fields and their meanings.
SGI025
11(Type approval number)
22(Vehicle identification number (Chassis number))
33(Gross vehicle weight)
44(Gross combination weight — Gross vehicle weight + Gross trailing capacity (Weight))
55(Gross axle weight (Front))
66(Gross axle weight (Rear))
77(Type)
88(Body color code)
99(Trim color code)
1010(Model)

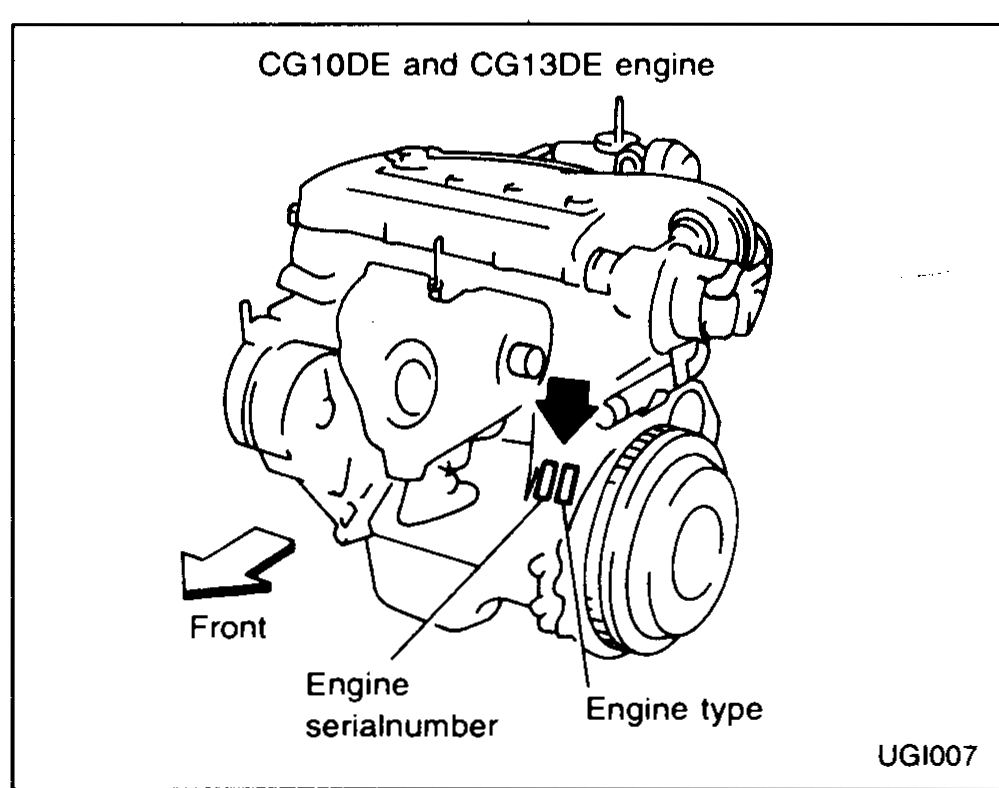

ENGINE SERIAL NUMBER
Component LocationFig. fig2
The engine serial number and engine type are stamped on the CG10DE and CG13DE engine block.
UGI007
1Front(Vehicle front direction)
2Engine serial number(Stamped on the engine block)
3Engine type(Stamped on the engine block adjacent to the serial number)

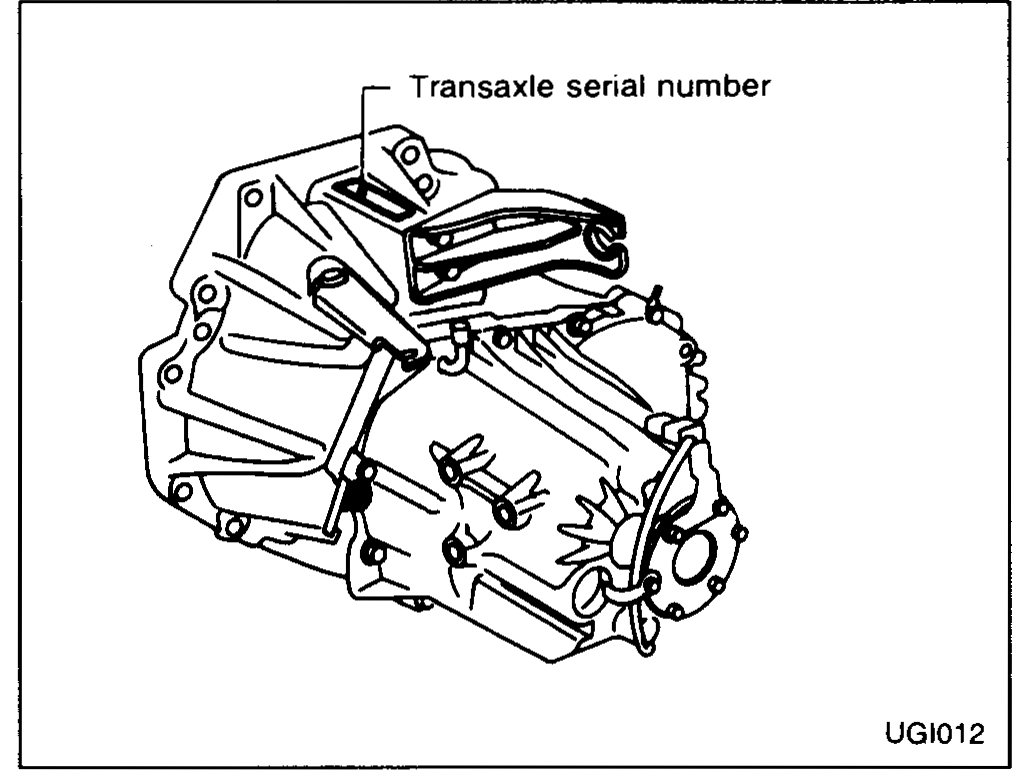

MANUAL TRANSAXLE NUMBER
Component LocationFig. fig3
The manual-transaxle serial number is stamped on the upper face of the transaxle case.
UGI012
1Transaxle serial number(Upper face of the manual transaxle case)

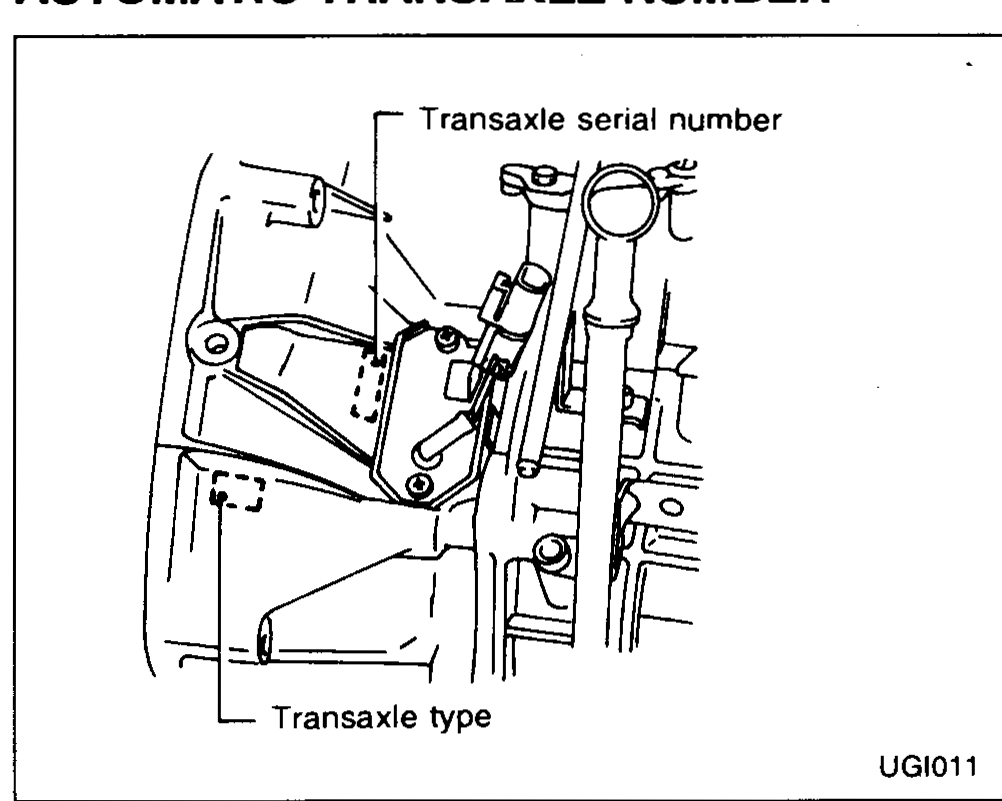

AUTOMATIC TRANSAXLE NUMBER
Component LocationFig. fig4
On the automatic transaxle, the serial number and the transaxle type are stamped at two different locations on the case.
UGI011
1Transaxle serial number(Upper area of the automatic transaxle case)
2Transaxle type(Lower area of the automatic transaxle case)
