LIFTING POINTS AND TOW TRUCK TOWING — Board-on Lift

GI-22prose procedure

Applies to models WITHOUT sill spoiler.

Continued from GI-21

Board-on Lift

Models without sill spoiler

Board-on lift positioning

  1. 1
    The board-on lift attachment (LM4086-0200) set at front end of vehicle should be set on the front of the sill under the front door opening.

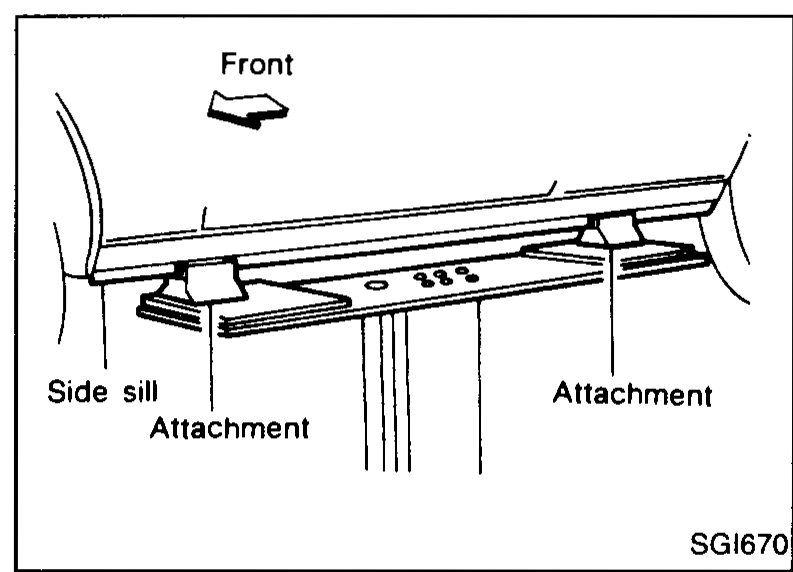

    Side view of the vehicle side sill with two board-on lift attachments installed under the rocker panel. An arrow labelled 'Front' points to the left. Callouts identify 'Side sill' and the two 'Attachment' positions at front and rear of the lift pad.
    SGI670
  2. 2
    Position attachments at front and rear ends of board-on lift.
