CLUTCH RELEASE MECHANISM

CL-5prose procedure

Removal and Installation

  1. 1

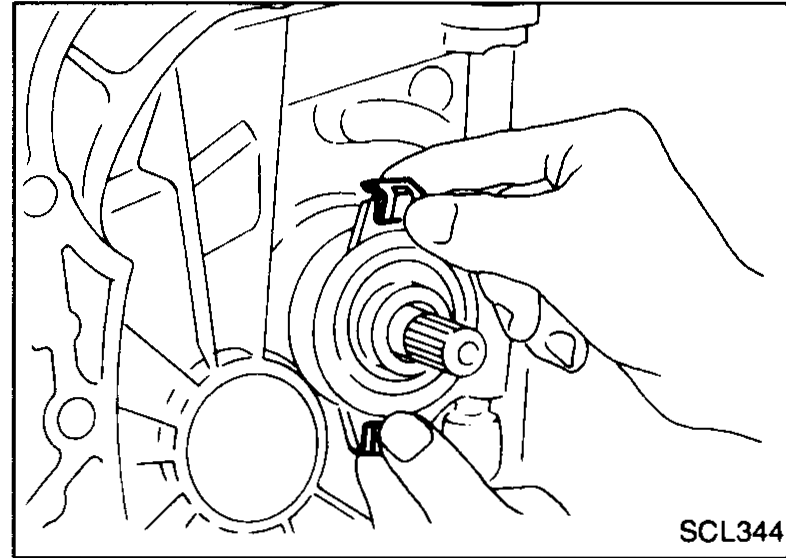

    Remove release bearing by pulling bearing retainers outward.
    Mechanic's hand pulling a bearing retainer outward from the clutch housing to release the release bearing.
    SCL344
  2. 2

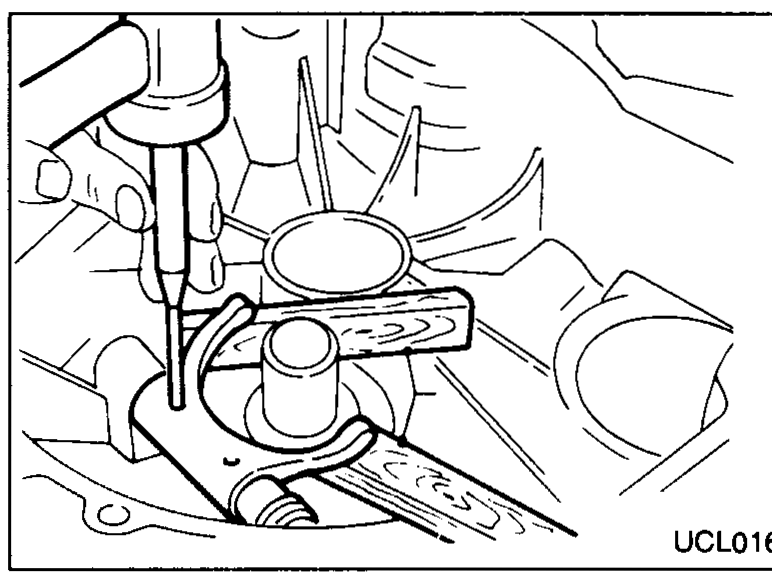

    Align retaining pin with cavity of clutch housing and tap out retaining pin.
    Punch and hammer being used to tap a retaining pin out through the cavity of the clutch housing.
    UCL016

INSPECTION

Check the following items, and replace if necessary.
Release bearing, to see that it rolls freely and is free from noise, cracks, pitting or wear.
Release sleeve and withdrawal lever rubbing surface, for wear, rust or damage.
