INSPECTION AND ADJUSTMENT — Adjusting Clutch Pedal
CL-4prose procedurePedal height H1 differs between L.H.D. and R.H.D. variants.
Adjusting Clutch Pedal

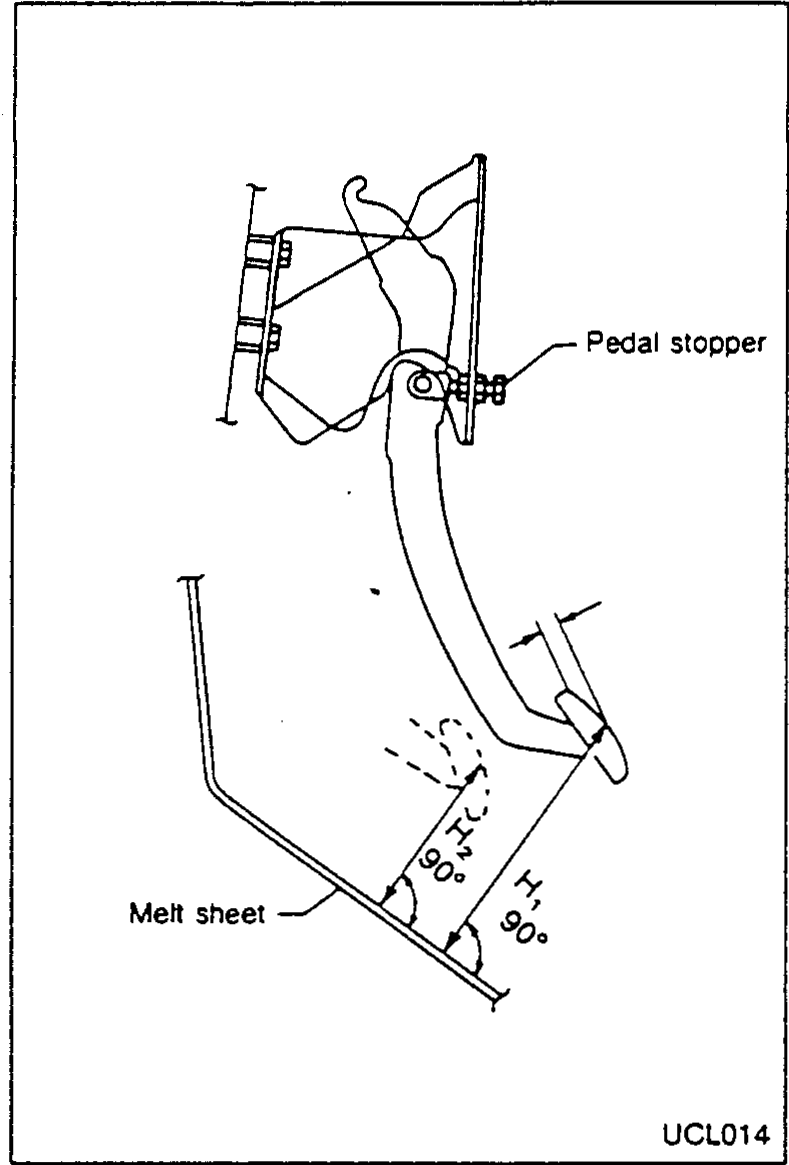

- 1Adjust pedal height with pedal stopper.

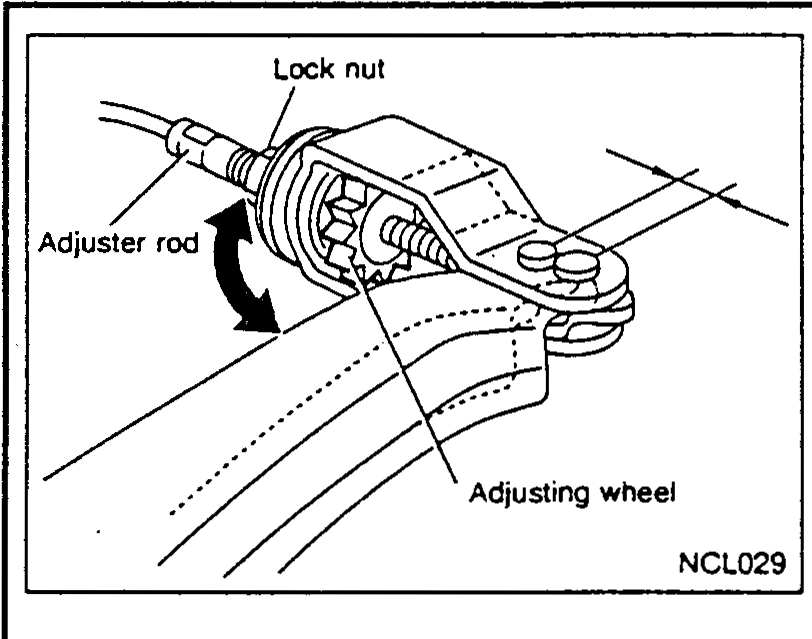

UCL014 - 2Adjust withdrawal lever play according to the following procedure. (1) Push withdrawal lever by hand until resistance is felt, and then tighten adjusting wheel ensuring the cable adjuster rod does not turn. (2) Turn back adjusting wheel 2.5 to 3.5 turns. Ensuring the adjusting wheel does not turn, tighten lock nut securely.
NCL029 - 3As a final check, measure pedal free travel at center of pedal pad.
| Specification | Value |
|---|---|
| Pedal height "H1" — L.H.D. | 183 - 193mm (7.20 - 7.60 in) |
| Pedal height "H1" — R.H.D. | 187 - 197mm (7.36 - 7.76 in) |
| Pedal height "H2" | 115mm (4.53 in) |
| Withdrawal lever play "B" | 2.5 - 3.5mm (0.10 - 0.14 in) |
| Lock nutTightening torque | 3 - 4N·m (0.31 - 0.41 kg-m, 26.6 - 35.4 in-lb) |
| Pedal free travel "A" | 11 - 15.5mm (0.43 - 0.61 in) |
Pedal height "H1" — L.H.D.
183 - 193mm (7.20 - 7.60 in)
Pedal height "H1" — R.H.D.
187 - 197mm (7.36 - 7.76 in)
Pedal height "H2"
115mm (4.53 in)
Withdrawal lever play "B"
2.5 - 3.5mm (0.10 - 0.14 in)
Lock nutTightening torque
3 - 4N·m (0.31 - 0.41 kg-m, 26.6 - 35.4 in-lb)
Pedal free travel "A"
11 - 15.5mm (0.43 - 0.61 in)
